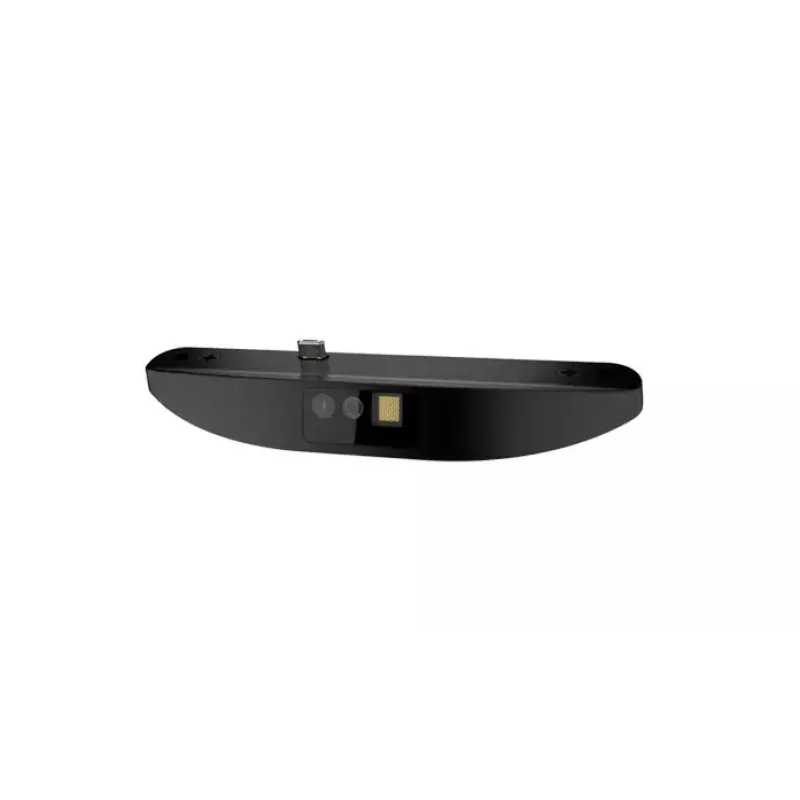

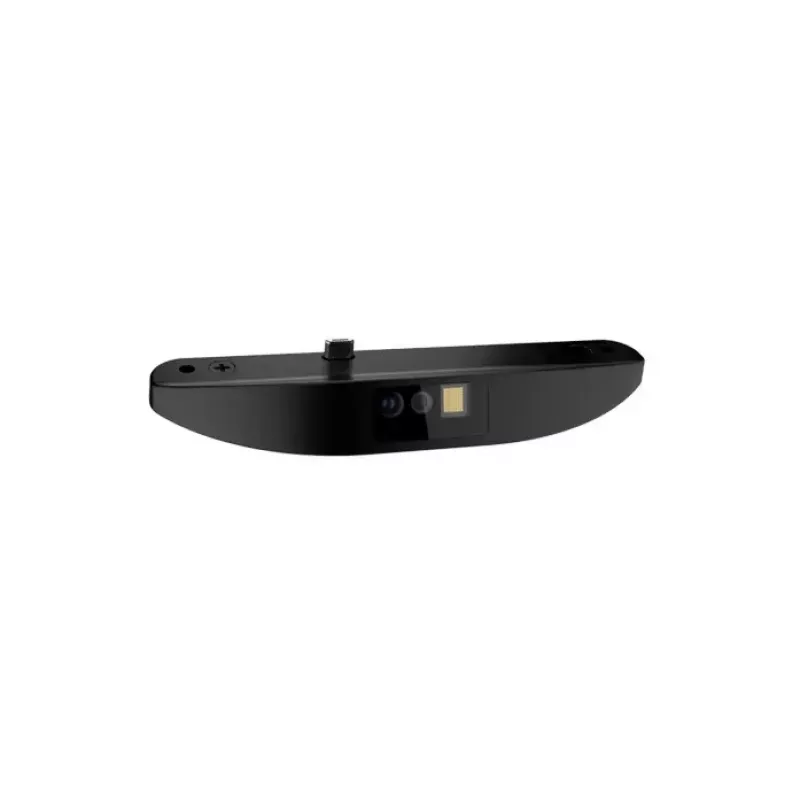

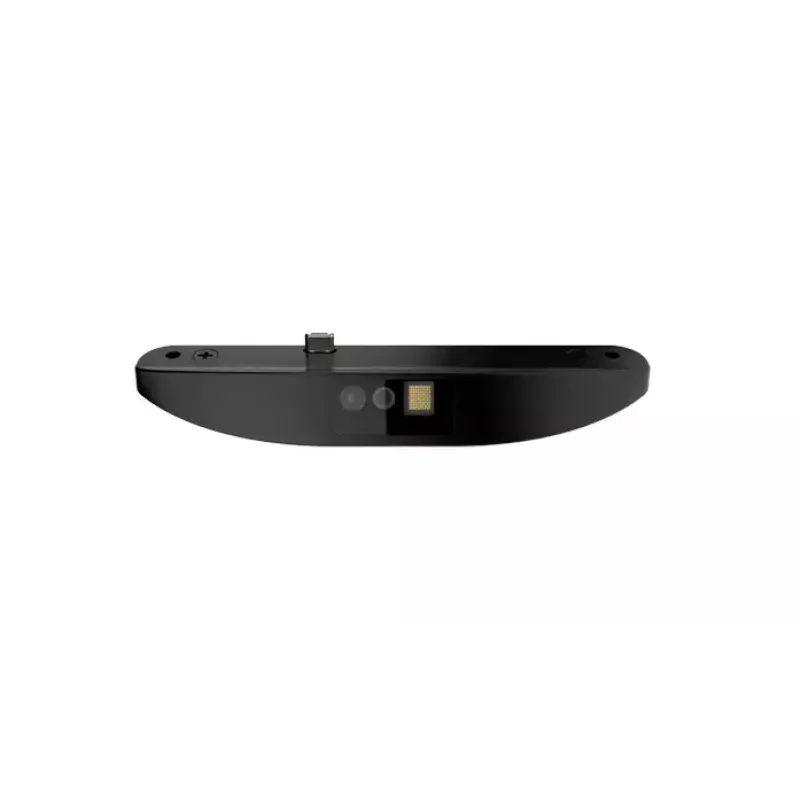

Pevná 2D čítačka čiarových kódov Elo Touch Solutions E245047 – čierna, kompaktná 118,5 × 26,6 mm, 22 g

Elo Touch Solutions E245047 is a fixed 2D barcode reader designed for stationary scanning of matrix and stacked codes. Housed in a compact black enclosure (118.5 × 26.6 mm) and weighing 22 g, the device reads a wide range of 2D symbologies including Aztec, Data Matrix, Grid Matrix, MaxiCode, Micro QR, MicroPDF417, PDF417 and QR Code. The reader is intended for integration with kiosks, point-of-sale systems, inventory stations and embedded applications where hands-free, reliable scanning of barcodes from paper, etched labels or mobile screens is required.

Advantages

The Elo E245047 offers fast, hands-free decoding with support for common 2D formats and a 1280 x 960 pixel imaging sensor for clear capture of barcodes at close range. Its small footprint and low weight enable discreet mounting in kiosks, price-checkers and compact POS terminals. Built on the Elo Edge Connect platform, the unit is designed for straightforward installation and modular deployment with compatible Elo touchscreens and accessories, allowing flexible configurations for customer-facing and back-office systems.

Suitable for

• Retail price-checkers and self-service kiosks
• Point-of-sale counters and integrated POS terminals
• Inventory control and stock counting stations
• Visitor and access management systems using barcode/QR badges
• Embedded solutions where space and weight are limited

Key specifications

• Form factor: fixed, compact 2D barcode reader
• Supported symbologies: Aztec, Data Matrix, Grid Matrix, MaxiCode, Micro QR, MicroPDF417, PDF417, QR Code
• Image sensor resolution: 1280 × 960 pixels
• Housing colour and dimensions: black, 118.5 × 26.6 mm
• Weight: 22 g

How to use

Install the E245047 in a stable position within a kiosk, POS bezel or intended mounting bracket so the scanning window faces the expected barcode presentation area. Connect the reader to a compatible Elo touchscreen or host system following the manufacturer’s integration instructions for power and data. Present barcodes or QR codes to the reader window at typical handheld or on-screen distances; the imaging sensor captures and decodes supported 2D and stacked codes automatically for hands-free operation. Use the host application to receive decoded data and implement further processing such as price lookups, checkouts or access control.

Recommendations

For reliable scanning, keep the scanning window clean and free of scratches or obstructions. Position the reader so that barcodes are presented within the device’s intended focal range and avoid extreme glare on reflective surfaces or mobile screens. When integrating with Elo touch displays, use the recommended Edge Connect mounting and cabling to ensure stable power and data connectivity and to maintain modular compatibility across kiosks and POS installations.
