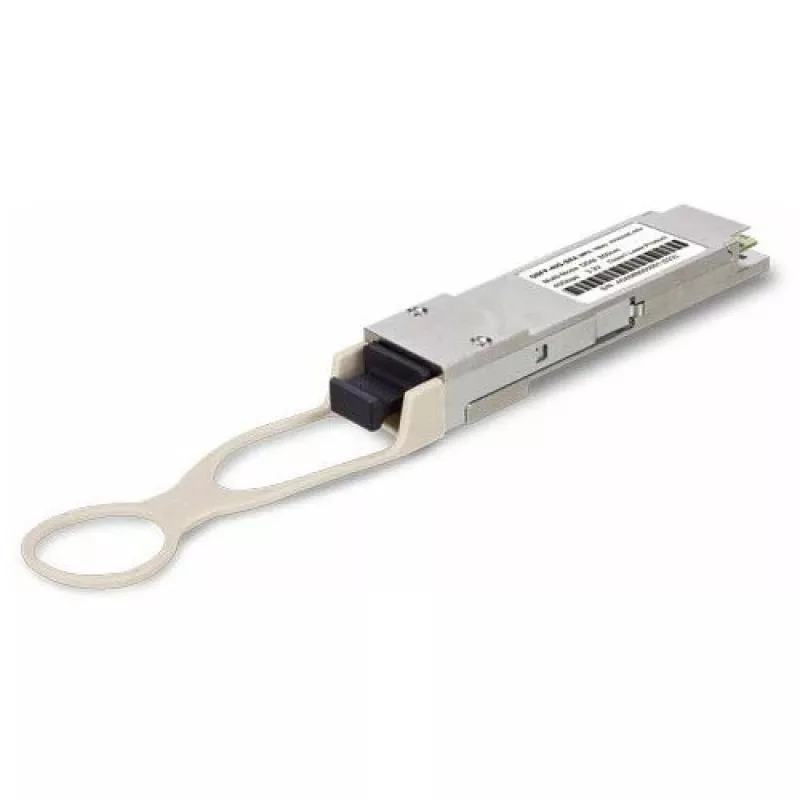

PLANET 40GBASE-SR4 QSFP+ optický transceiver

The PLANET 40GBASE-SR4 QSFP+ Fiber Transceiver is a high-performance optical module designed for 40 Gigabit Ethernet connectivity in data centers and enterprise networks. It delivers reliable, high-speed data transmission over multi-mode fiber with MPO/MTP-12 connectors.

Advantages

This transceiver offers a cost-effective solution for upgrading network infrastructure to 40Gbps speeds. It supports hot-plugging, low power consumption under 1.5W, and Digital Diagnostic Monitoring (DDM) for real-time performance monitoring. Its VCSEL transmitter and PIN receiver ensure stable and efficient operation.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-performance computing clusters
• 40 Gigabit Ethernet uplinks

Key specifications

• Form Factor: QSFP+
• Data Rate: 40Gbps (4x10Gbps)
• Standard: IEEE 802.3ba 40GBASE-SR4
• Connector Type: MPO/MTP-12
• Fiber Type: Multi-Mode Fiber (MMF)
• Wavelength: 850nm
• Max Distance (OM3): 100m
• Max Distance (OM4): 150m
• DDM/DOM Support: Yes
• Power Consumption: < 1.5W (typical)
• Operating Temperature: 0 to 70°C
• Hot-Pluggable: Yes
• Compliance: MSA Compliant, RoHS, CE, FCC

Recommendations

For optimal performance, use with OM3 or OM4 multi-mode fiber cables terminated with MPO/MTP-12 connectors. Ensure your switch or router supports QSFP+ modules and 40GBASE-SR4 standard.
