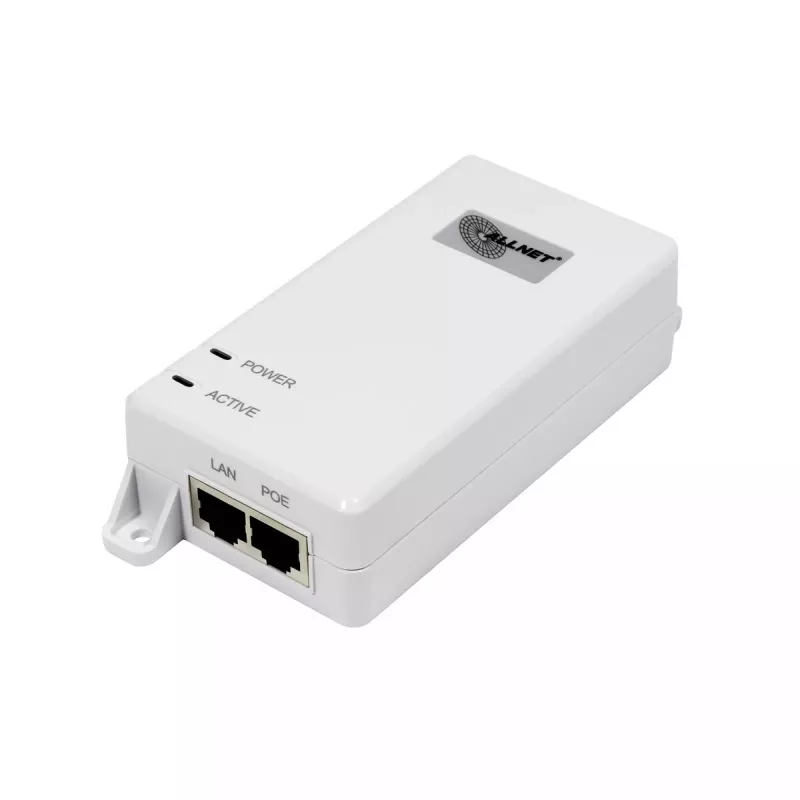

PoE adaptér ALLNET ALL0488V6

The ALLNET ALL0488V6 PoE adapter delivers a stable 30 V power supply over Ethernet while supporting data rates of 10/100/1000 Mbit/s. Designed to meet common IEEE networking standards, it enables simultaneous power and data delivery to compatible devices up to a maximum distance of 100 m. The adapter features two RJ-45 Ethernet ports, compact dimensions of 60 mm x 135 mm x 30 mm and a lightweight construction (0.48 kg), making it suitable for space-constrained installations. Its wide input voltage range of 100–240 V allows use in varied electrical environments.

Advantages

The adapter provides combined power and Gigabit Ethernet connectivity in a single compact unit, simplifying cabling and installation. Compliance with standard Ethernet speeds ensures compatibility with existing network equipment. The 30 V PoE output gives a stable power source for compatible endpoints, and the two RJ-45 ports offer pass-through or direct connection options. Compact white housing and low weight ease mounting in cabinets, on walls, or near network devices.

Suitable for

• Supplying power and data to IP cameras and access points within 100 m
• Adding PoE capability to switches or non‑PoE devices in small office networks
• Temporary or permanent installations where space is limited
• Home networking setups requiring reliable Gigabit links with powered devices

Key specifications

• PoE voltage: 30 V
• Data rates: 10/100/1000 Mbit/s (Gigabit Ethernet)
• Maximum cabling distance: 100 m
• Ethernet interface: 2 x RJ-45 ports
• Input voltage: 100–240 V AC
• Dimensions: 60 mm × 135 mm × 30 mm
• Weight: 0.48 kg
• Color: White

How to use

Connect the adapter to an AC mains source within the specified 100–240 V range. Use standard Ethernet cables to connect network equipment to the RJ-45 ports; one port typically receives uplink data from a switch or router while the other provides PoE power and data to the endpoint device. Ensure total cable length from the adapter to the powered device does not exceed 100 m to maintain reliable power and data delivery. Mount the unit in a ventilated location and avoid exposure to moisture or direct heat sources.

Recommendations

For reliable operation, use quality shielded or unshielded Cat5e or higher cables, verify device compatibility with 30 V PoE output, and keep cable runs under the 100 m limit. When installing multiple adapters in close proximity, allow adequate spacing for ventilation and follow local electrical safety regulations during mains connection.
