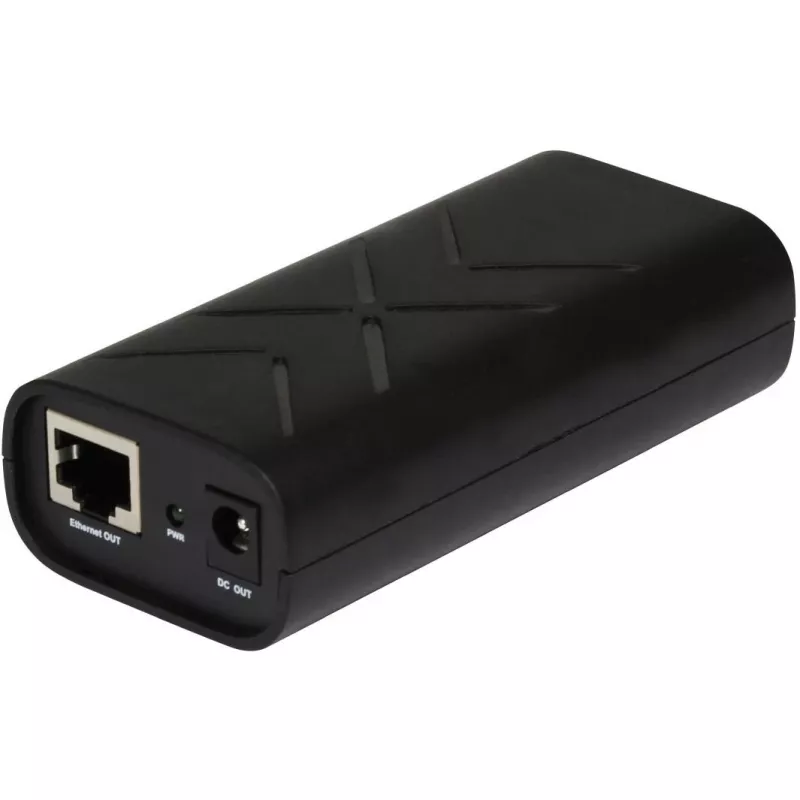

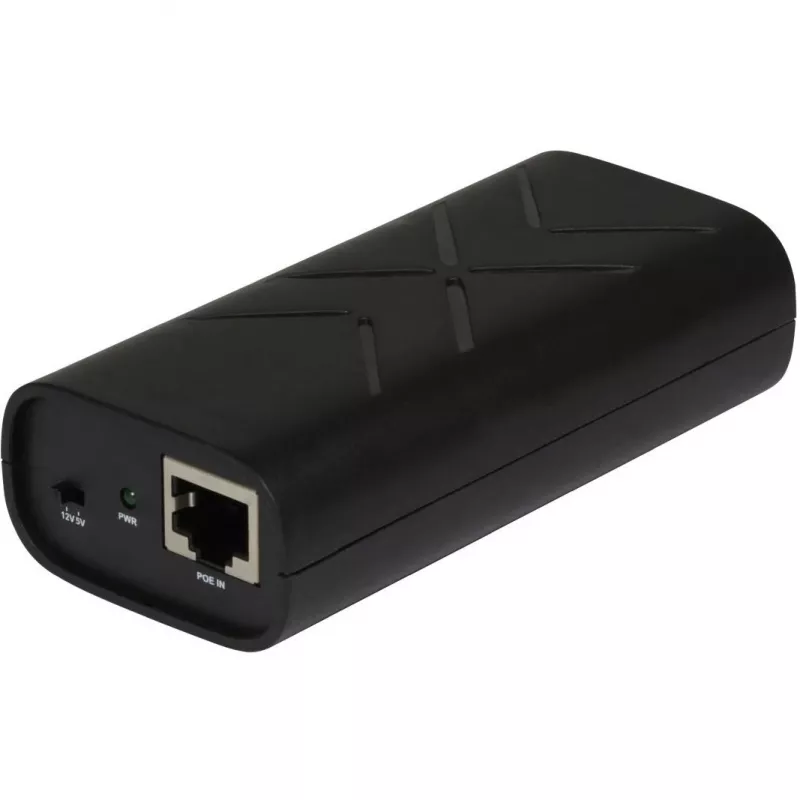

PoE splitter ALLNET ALL-PS102G-AF-AT Gigabit 24 W

The ALLNET PoE splitter ALL-PS102G-AF-AT Gigabit 24W extracts up to 24 watts of DC power from a PoE input while passing through Gigabit Ethernet data. It separates data and power on the network cable so non-PoE devices can be powered without replacing existing switches or cabling. The compact module is designed to supply cameras, wireless access points, thin clients and other equipment that require an external DC supply, providing a straightforward way to extend power to devices in PoE-enabled networks.

Advantages

This Gigabit PoE splitter supports full data throughput at 10/100/1000 Mbps while delivering a stable 24W power output. Its small footprint makes installation possible in constrained spaces near the powered device. The unit isolates power from the data pair and outputs a regulated DC voltage suitable for many IP cameras and wireless devices. No changes to existing network infrastructure are required; the splitter simply connects between the PoE source and the powered device.

Suitable for

• IP cameras that require external DC power
• Wireless access points without built-in PoE support
• VoIP phones and thin clients requiring separate DC input
• Industrial or remote devices where adding a power outlet is impractical

Key specifications

• Data rate: Gigabit Ethernet (10/100/1000 Mbps)
• Maximum output power: 24 W
• Input interface: PoE-compliant Ethernet connection
• Output interface: Ethernet data passthrough plus DC power output
• Form factor: compact inline splitter for installation near the powered device

How to use

Connect the PoE-enabled network cable from the switch or injector to the splitter input, then connect the splitter's Ethernet output to the device for data. Use the DC output cable from the splitter to power the device's DC power jack with the appropriate polarity and voltage specified by the device manufacturer. Ensure the PoE source can provide sufficient power budget (at least 24 W) and verify device voltage compatibility before powering on.

Recommendations

Install the splitter in a ventilated, dry location close to the powered device. Confirm the device's required input voltage and connector polarity prior to connection. If powering devices located outdoors or in harsh environments, use additional protective enclosures and weatherproofing. For reliable operation, use Cat5e or better cabling and ensure the PoE source complies with the appropriate PoE standard and power class to deliver the necessary wattage.
