Power Distribution Unit Triton RAB-PD-X02-A1

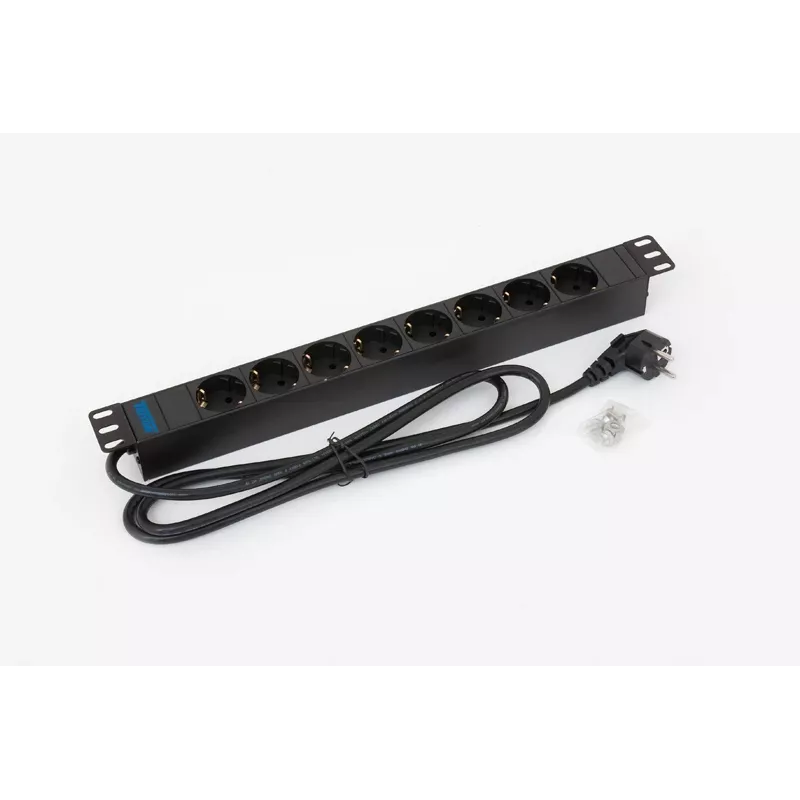

The Triton RAB-PD-X02-A1 is a 1U power distribution unit designed for mounting in server racks and network cabinets. It provides eight Type E/F AC outlets and comes with a 2 m power cable, delivering consolidated power distribution for rack-mounted equipment. The unit supports a maximum input current of 16 A per phase and is finished in a black housing that integrates with standard IT environments.

Advantages

This PDU offers a compact 1U form factor that saves rack space while providing multiple AC outlets for concentrated power delivery. The presence of eight Type E/F sockets allows compatibility with a wide range of server and networking devices. With a rated maximum input current of 16 A per phase, the unit supports typical data center and small-to-medium IT room loads. The black finish provides a neutral appearance suitable for professional installations.

Suitable for

• Rack-mounted servers and storage devices
• Network switches, routers and patch panels
• Small to medium data closets and server rooms
• Workstation power consolidation in shared cabinets

Key specifications

• Form factor: 1U rack-mount PDU
• Outlet type and quantity: 8 AC outlets (Type E/F)
• Cable length: 2 m
• Maximum input current: 16 A per phase
• Colour: Black
• Type: Basic PDU (non-switched, non-monitored)

How to use

Mount the Triton 1U PDU in a standard 19-inch rack using appropriate mounting hardware. Connect the unit's 2 m mains cable to a compatible power source that can supply up to 16 A per phase. Plug equipment power cords into the Type E/F outlets, ensuring that total load per phase does not exceed the rated 16 A. Arrange connected cables to maintain airflow and to keep access to front and rear rack equipment unobstructed.

Recommendations

For safe and reliable operation, verify the combined current draw of all connected devices and distribute high-draw equipment across different PDUs or phases where available. Install the PDU in a well-ventilated rack location and avoid overloading any outlet. Use compatible plugs for Type E/F sockets and follow local electrical codes when connecting mains power.
