Príslušenstvo k bezpečnostnej kamere AXIS 02216-001 čierna kompatibilita F2105-RE

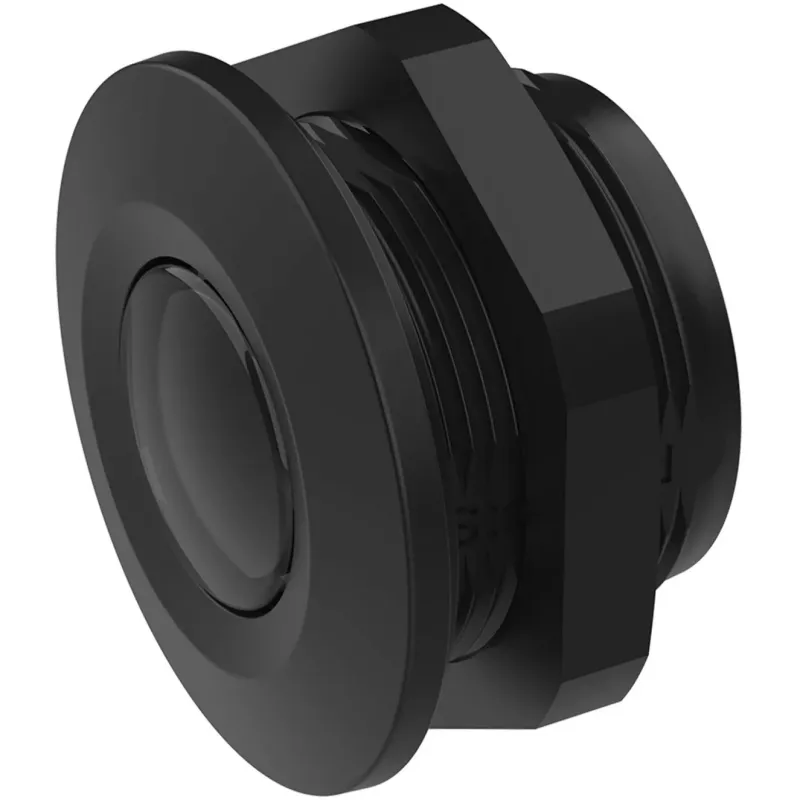

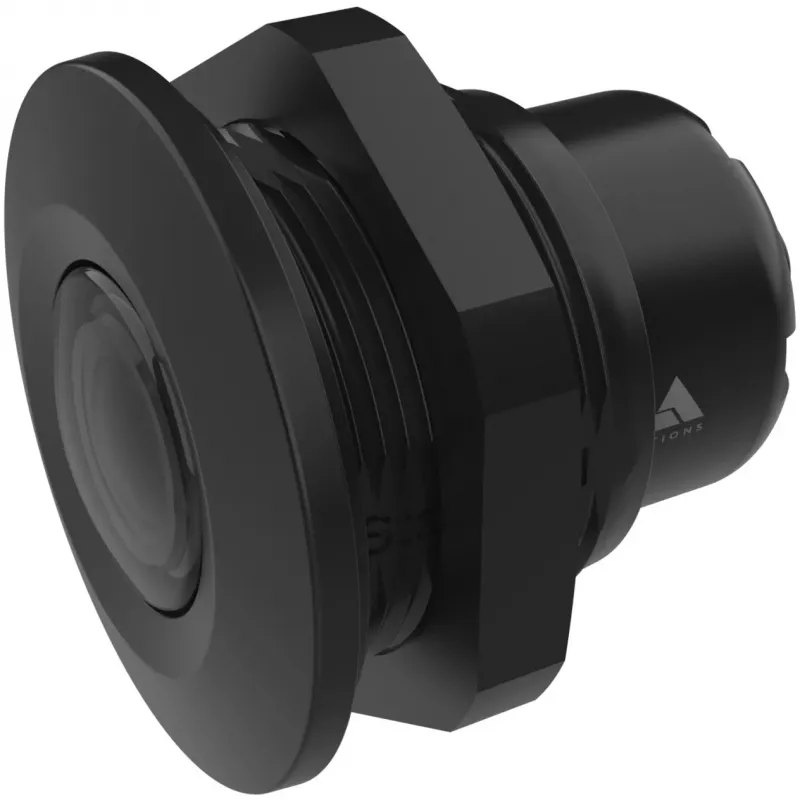

This recessed mount screws onto the front of the AXIS F2105-RE Standard Sensor Unit and is intended for installations in walls, glass, plastic or metal panels with thicknesses from 1 to 15 mm (0.04 to 0.6 in). It provides a neat, flush appearance while preventing water ingress into the wall or panel. The mount is made of plastic and includes built-in lens protection.

Advantages

The accessory secures the AXIS F2105-RE in place for a stable installation and prevents water from leaking into the mounting surface. Its recessed design delivers a low-profile finish suitable for different panel materials and thicknesses and the integrated lens protection reduces exposure to environmental wear.

Key specifications

• Compatible device: AXIS F2105-RE Standard Sensor Unit
• Mount type: Recessed screw-on mount for front installation
• Material: Plastic
• Panel thickness supported: 1–15 mm (0.04–0.6 in)
• Built-in lens protection: Yes

How to use

Prepare an opening in the panel or wall suitable for the AXIS F2105-RE and ensure the panel thickness is within 1–15 mm. Position the recessed mount on the front of the AXIS F2105-RE and secure it by screwing the mount to the sensor unit according to the manufacturer’s instructions. Confirm that the seal is flush with the panel surface to prevent water ingress and that the lens protector is correctly aligned.

Recommendations

Use this recessed mount when installing AXIS F2105-RE units in environments exposed to moisture or mechanical wear. Verify panel thickness before installation and follow AXIS installation guidelines to ensure proper sealing and lens protection.
