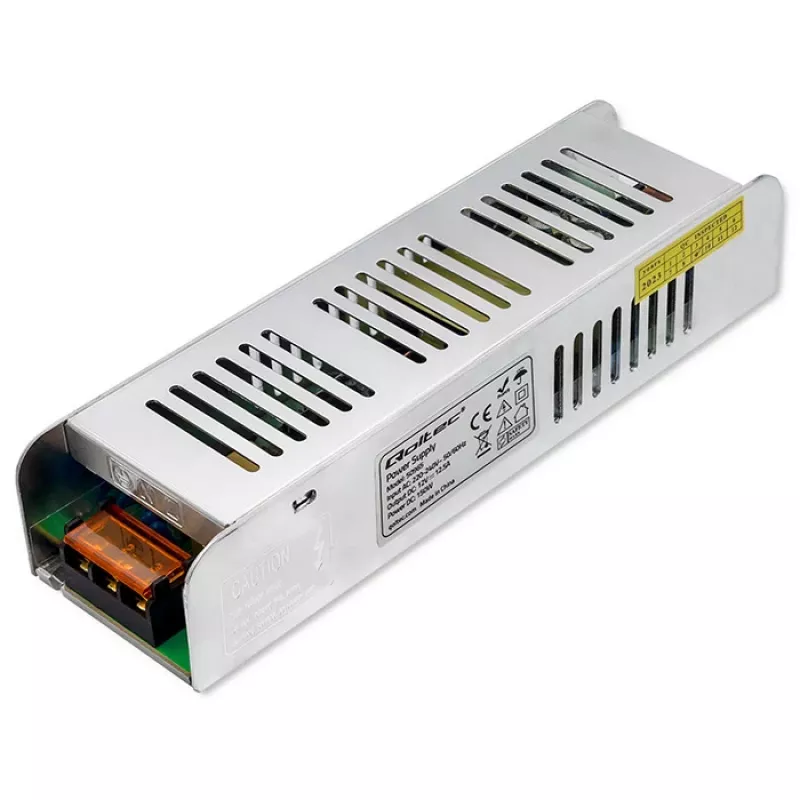

Qoltec LED spínaný napájací zdroj 150W 12V 12,5A slim IP20

The Qoltec LED Switching Power Supply is a high-performance, slim power supply designed for LED lighting and other low-voltage applications. With a robust 150W output at 12V DC and 12.5A, it delivers reliable power in a compact, fanless metal housing. Ideal for indoor use, it features IP20 protection and passive cooling for silent operation.

Advantages

This power supply offers high efficiency (>85%), stable output, and comprehensive protection against overload, overvoltage, and short circuits. Its slim form factor saves space, while the screw terminals ensure secure connections. The fanless design guarantees noiseless operation, making it perfect for noise-sensitive environments.

Suitable for

• LED strip lighting and modules
• Indoor signage and display lighting
• Security cameras and access control systems
• Industrial automation and control panels
• Any 12V DC device requiring up to 150W

Key specifications

• Product Type: LED Switching Power Supply
• Output Power: 150 W
• Output Voltage: 12 V DC
• Output Current: 12.5 A
• Input Voltage: 180 - 264 V AC
• Input Frequency: 50 / 60 Hz
• Efficiency: >85%
• IP Rating: IP20
• Protection Features: Overload, Overvoltage, Short Circuit
• Cooling Type: Passive (Fanless)
• Housing Material: Metal (Aluminum)
• Operating Temperature: -20°C to +50°C
• Certifications: CE, RoHS
• Form Factor: Slim
• Connection Type: Screw Terminals
• Number of Outputs: 1
• Power Factor: >0.5
• Ripple & Noise: <150mVp-p

Recommendations

For optimal performance, ensure the input voltage matches your local mains supply. Use appropriate gauge wiring for the output current. This power supply is not suitable for outdoor use without additional weatherproofing. Always observe polarity when connecting loads.
