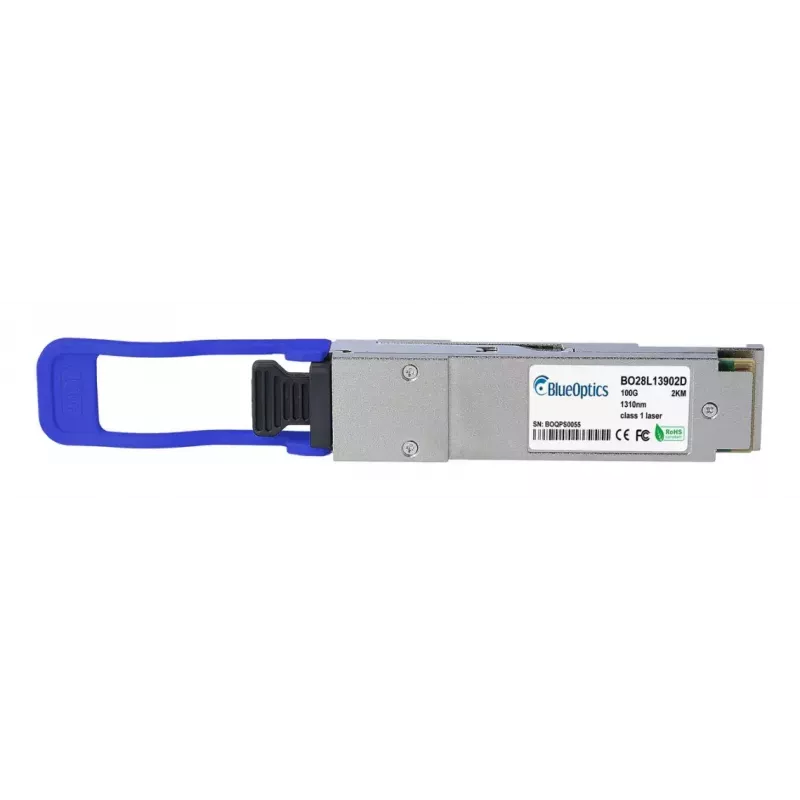

QSFP transceiver modul BlueOptics QSFP-100G-PSM4-BO 100G 100000 Mbit/s

The BlueOptics QSFP-100G-PSM4-BO is a 100G fiber optic transceiver module with a QSFP28 interface, metal housing and silver colour. Designed for high-speed optical links, it supports a maximum data transfer rate of 100000 Mbit/s and implements the 100GBASE-PSM4 transmission concept over single-mode fiber. The module is compact and lightweight (approximately 0.04 kg), and it meets CE, RoHS and FCC conformity requirements.

Advantages

The QSFP-100G-PSM4-BO combines a QSFP28 form factor and metal housing to provide stable mechanical performance and heat dissipation for high-density installations. Its support for 100G data rates makes it suitable for aggregation and backbone links where large throughput is required. The module’s compliance with common regulatory standards ensures compatibility with standard network environments and facilitates integration into existing infrastructures.

Suitable for

• High-speed data center aggregation and spine connections
• Core and metro links over single-mode fiber
• Switches and routers with QSFP28 ports supporting 100GBASE-PSM4
• Optical links requiring MPO/MTP-style parallel fiber connections

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s (100 Gbit/s)
• Transmission type: 100GBASE-PSM4 over single-mode fiber
• Connector style: MPO/MTP (parallel fiber)
• Housing material: metal
• Colour: silver
• Weight: 0.04 kg
• Compliance: CE, RoHS, FCC

How to use

Install the module into a compatible QSFP28 port on a switch, router or other network hardware that supports 100GBASE-PSM4. Ensure the host device firmware and software support third-party QSFP modules and the DDM/DOM diagnostic functions if monitoring is required. Terminate the parallel single-mode fiber connection with an appropriate MPO/MTP patch cord or patch panel and verify link status through the host device. Handle the transceiver by its edges and keep dust caps on connectors when not in use to prevent contamination.

Recommendations

For reliable operation, use single-mode MPO/MTP cabling rated for parallel 100G links and verify that the connected hardware supports 100GBASE-PSM4. Observe ESD precautions during installation, maintain a clean fiber environment, and confirm host compatibility for DDM/DOM monitoring if remote diagnostics are required.
