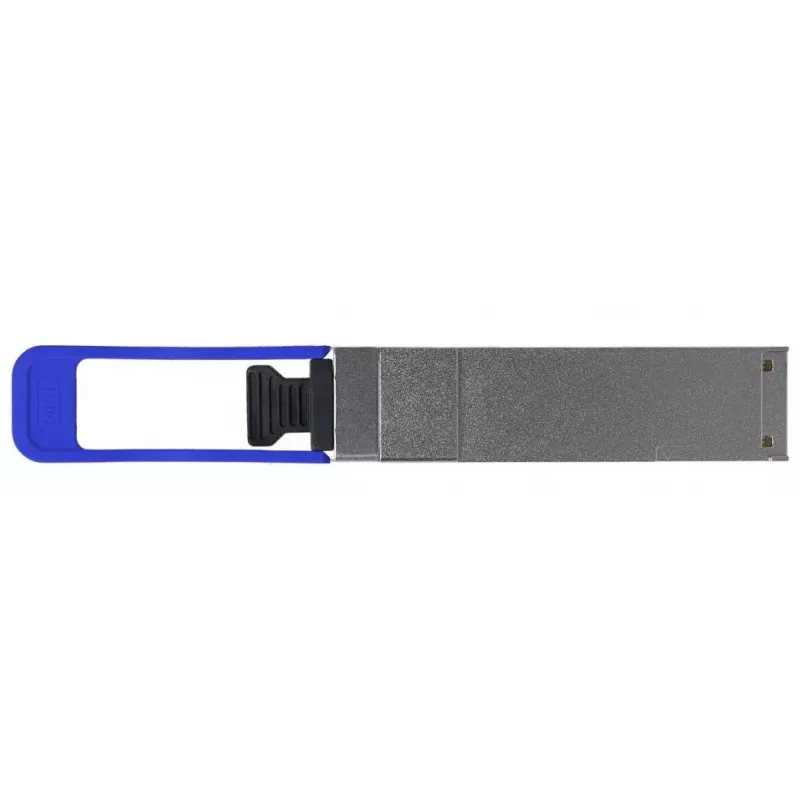

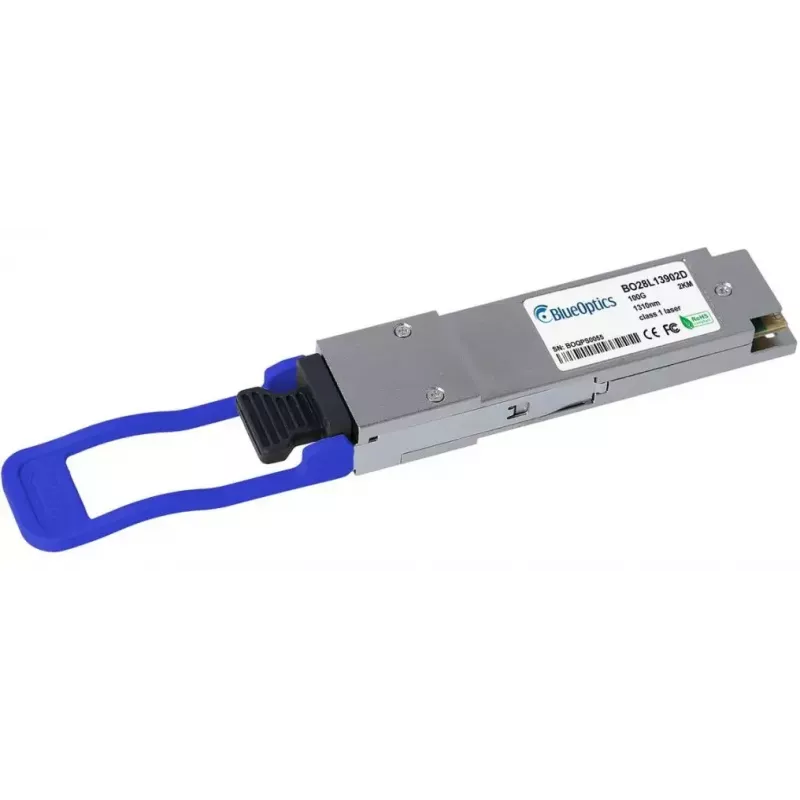

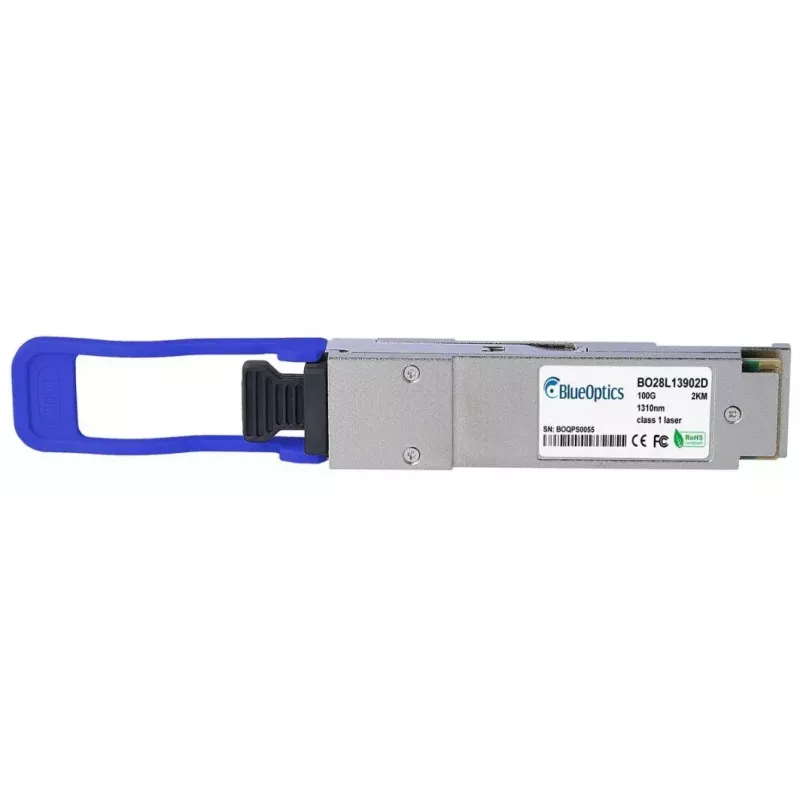

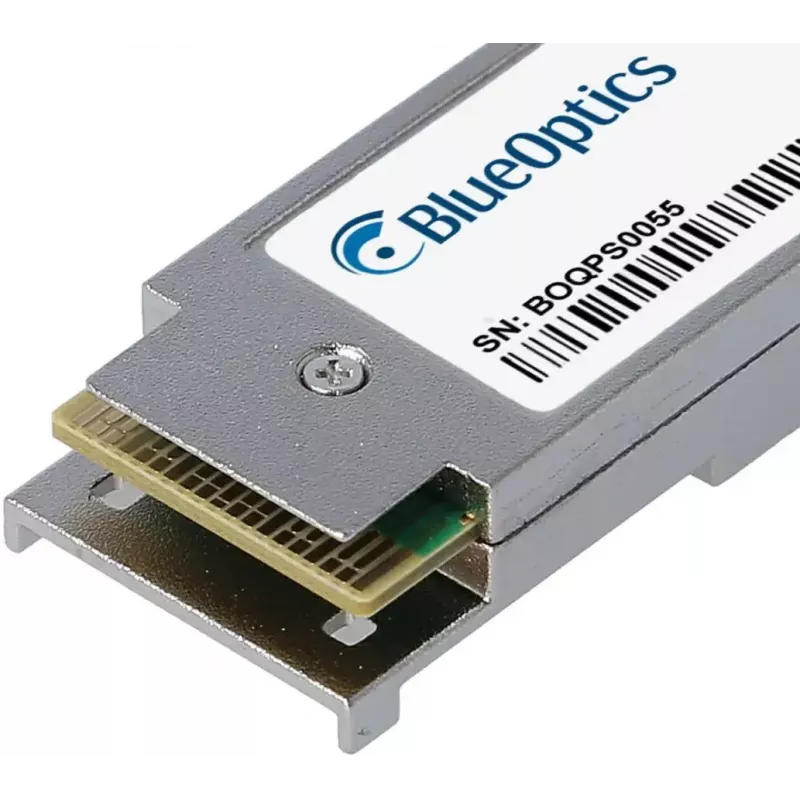

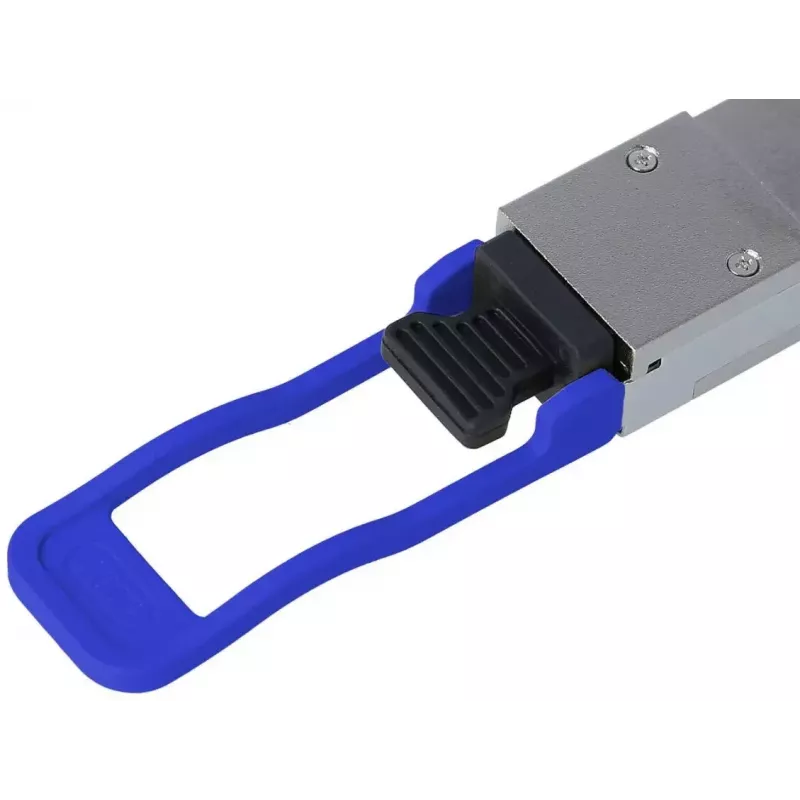

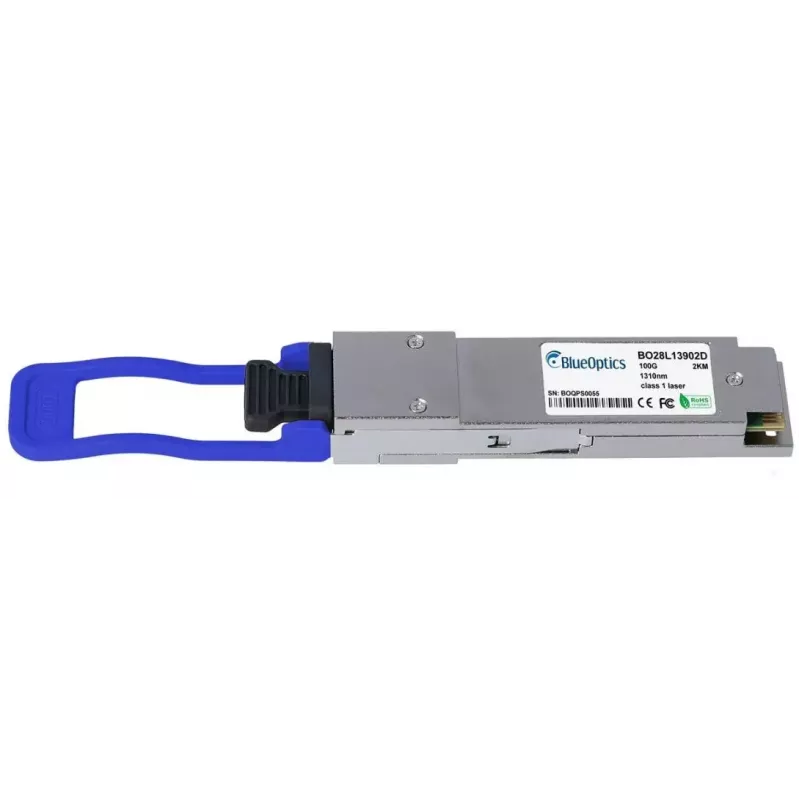

QSFP28 transceiver BlueOptics QSFP28-100G-PSM4-DE-BO 100G 100000 Mbit/s

The BlueOptics QSFP28-100G-PSM4-DE-BO is a 100G QSFP28 fiber optic transceiver module designed for high-density network environments requiring 100000 Mbit/s data transfer. The module uses a QSFP28 interface, is housed in a metal casing with a silver finish, and operates at a 3.3 V input voltage. Its compact and lightweight design (approximately 2 g) makes it suitable for installations where space and port density are important. The transceiver implements the 100GBASE-PSM4 optical profile with an MPO/MTP connector and supports single-mode fiber links over typical short-reach ranges used in data center and carrier environments.

Advantages

The transceiver offers a standardized QSFP28 form factor for easy integration into compatible equipment, supporting up to 100 Gbit/s link speeds. Its metal housing provides mechanical durability and shielding, while the low weight simplifies hot-swap handling in dense chassis. Conformance to MSA optical interface standards and support for digital diagnostics monitoring enable interoperability and remote monitoring of critical optical parameters where the host hardware supports DDM/DOM.

Suitable for

Key specifications

How to use

Install the QSFP28 transceiver into a compatible QSFP28 port on switches, routers, or other network equipment that support the 100GBASE-PSM4 profile. Connect an appropriate MPO/MTP single-mode fiber patch cord between transceivers or to a patch panel following standard data center cabling practices. Ensure the host device firmware and software recognize third-party transceivers, and confirm that any required link settings match the intended 100GBASE-PSM4 configuration. Observe ESD precautions when handling the module and cap the connector when not in use to protect fiber endfaces.

Recommendations

Verify that the target hardware supports QSFP28 100GBASE-PSM4 modules and, if needed, enable or confirm DDM/DOM support in the host system to access diagnostic information. Use certified MPO/MTP single-mode patch cords and maintain clean fiber endfaces to ensure optimal signal quality and link reliability.
