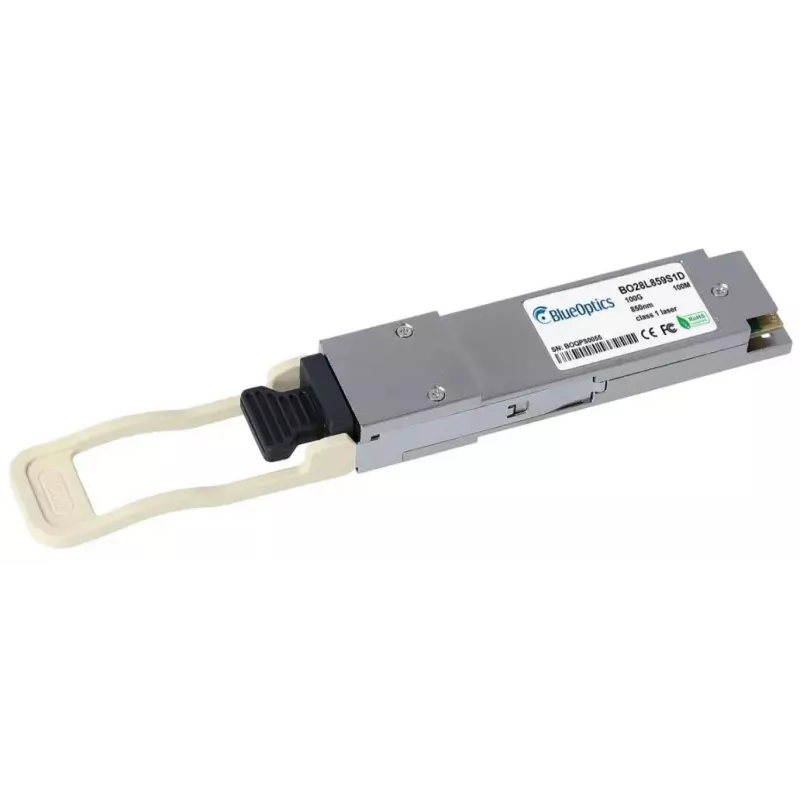

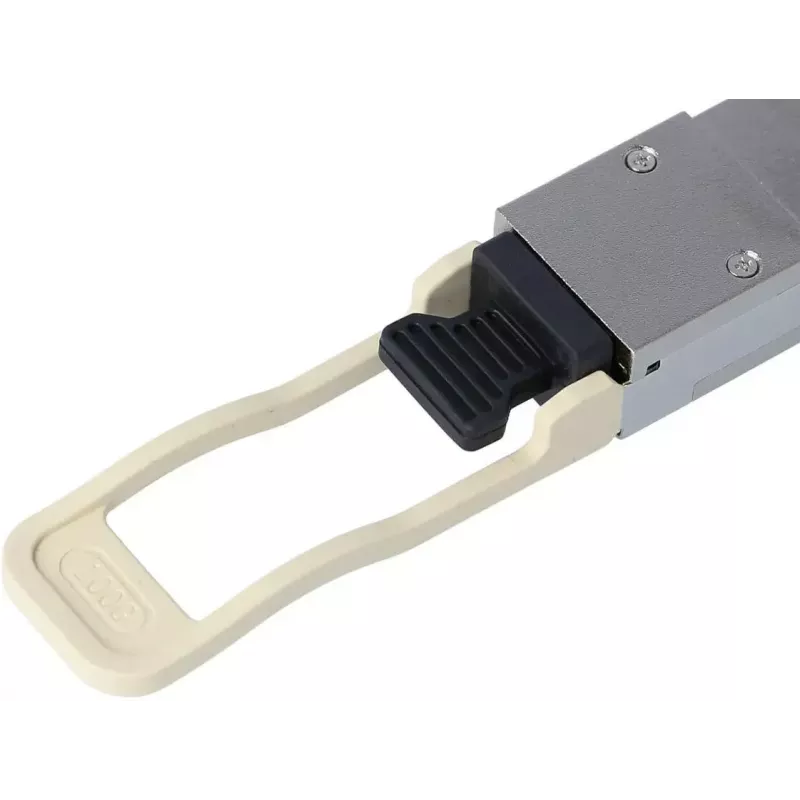

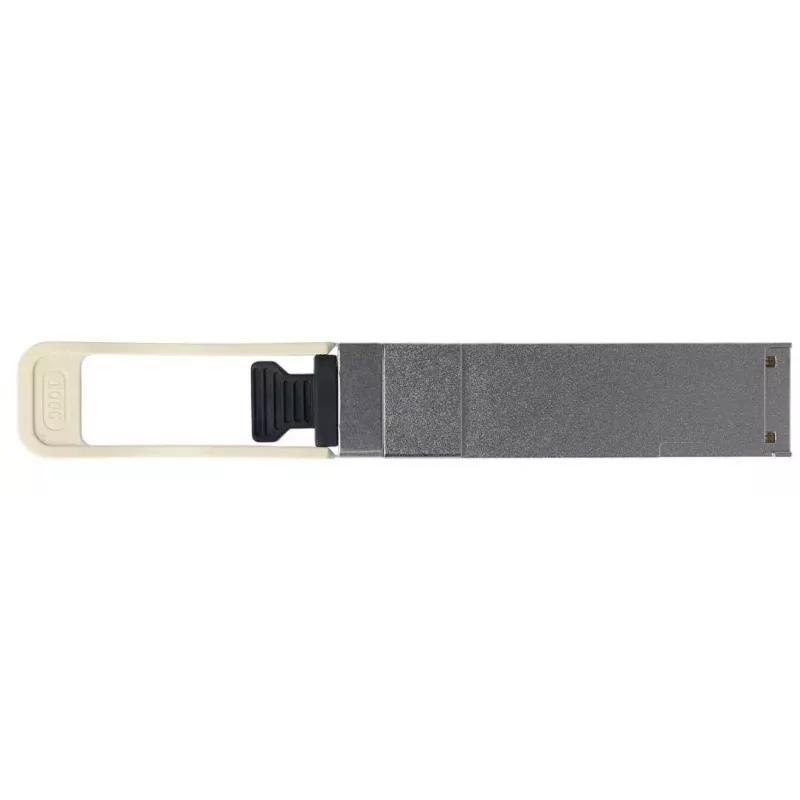

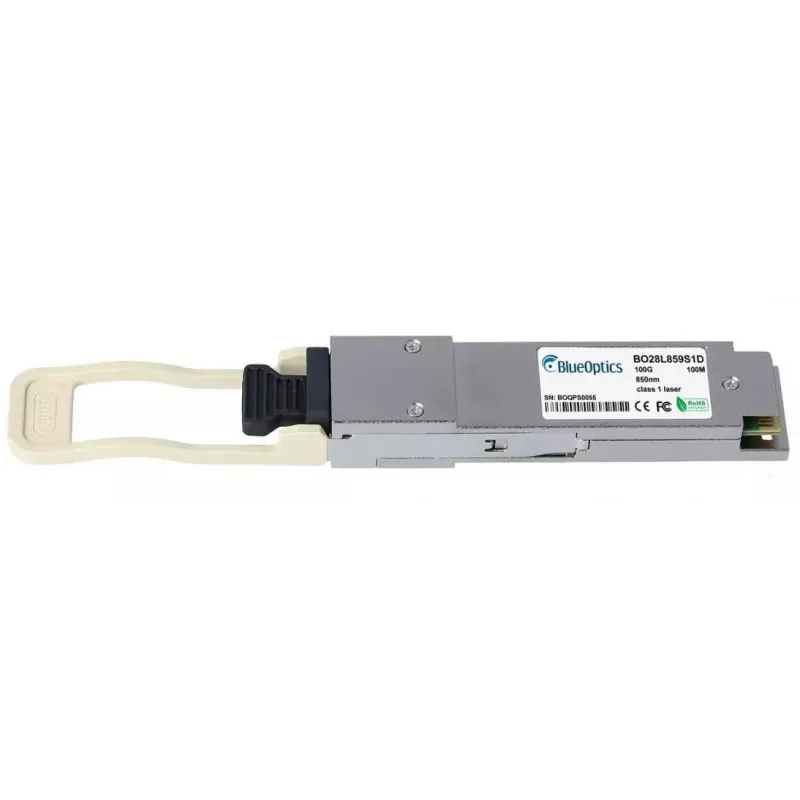

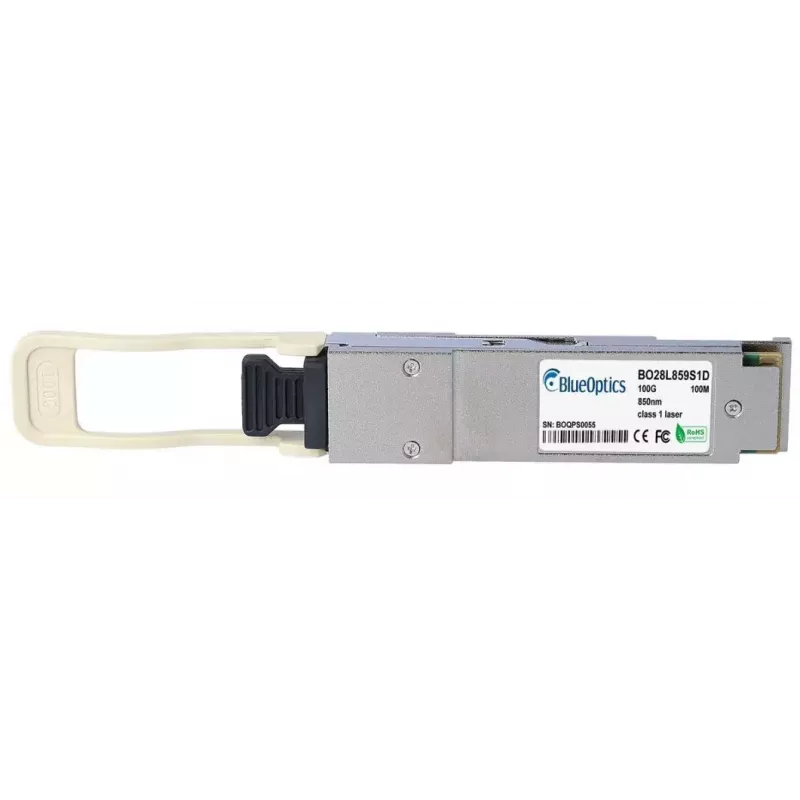

QSFP28 transceiver modul BlueOptics 407-BBWV-BO MTP/MPO

The BlueOptics 407-BBWV-BO QSFP28 Transceiver Module with MTP/MPO connector is a compact fiber optic module designed for high-speed 100G data transmission in data centres and high-performance networking environments. Constructed with an aluminium housing and weighing approximately 40 g, this QSFP28 module complies with MSA QSFP28 mechanical and electrical form factors and supports multimode fiber links via an MTP/MPO interface.

Advantages

This QSFP28 transceiver offers a standard-compliant physical interface (QSFP28) and an MTP/MPO multi-fibre connector that enables aggregated parallel optical links for 100G applications. The aluminium casing provides a durable, lightweight enclosure suited to rack-mounted equipment. Designed for use in equipment that supports the equivalent 100GBASE-SR4 optical protocol, the module supports short-reach multimode connectivity with industry-standard performance characteristics and is suitable for integration into switches, routers and storage platforms that accept QSFP28 MTP/MPO transceivers.

Suitable for

• 100G Ethernet links in data centres
• High-density switch-to-switch interconnects
• Storage area network (SAN) uplinks and aggregation
• Short-reach multimode fibre connections up to the supported multimode range

Key specifications

• Interface type: QSFP28
• Connector: MTP/MPO multi-fibre
• Optical medium: multimode fibre (MMF)
• Form factor: QSFP28 compliant
• Housing material: aluminium
• Weight: approx. 0.04 kg

How to use

Install the QSFP28 module into a compatible QSFP28 port on a switch, router or storage device following the host equipment manufacturer’s hot-plug or insertion guidelines. Connect an appropriate MTP/MPO multimode patch cord between the module and the target device or patch panel, ensuring correct polarity and fibre mapping for parallel 100GBASE-SR4 operation. Verify link status and, if available, enable or monitor Digital Diagnostics (DOM/DDM) via the host system to check operational parameters such as optical power and temperature.

Recommendations

Use multimode fibre patch cords and patch panels rated for 100G parallel optics and ensure connector cleanliness before mating. Confirm host device compatibility with QSFP28 MTP/MPO transceivers and verify support for DDM/DOM if remote diagnostics are required. Follow standard ESD precautions when handling the module and store it in protective packaging when not installed.
