Rack skriňa Lanview RDL20U68BL 20U čierna 600kg IP20

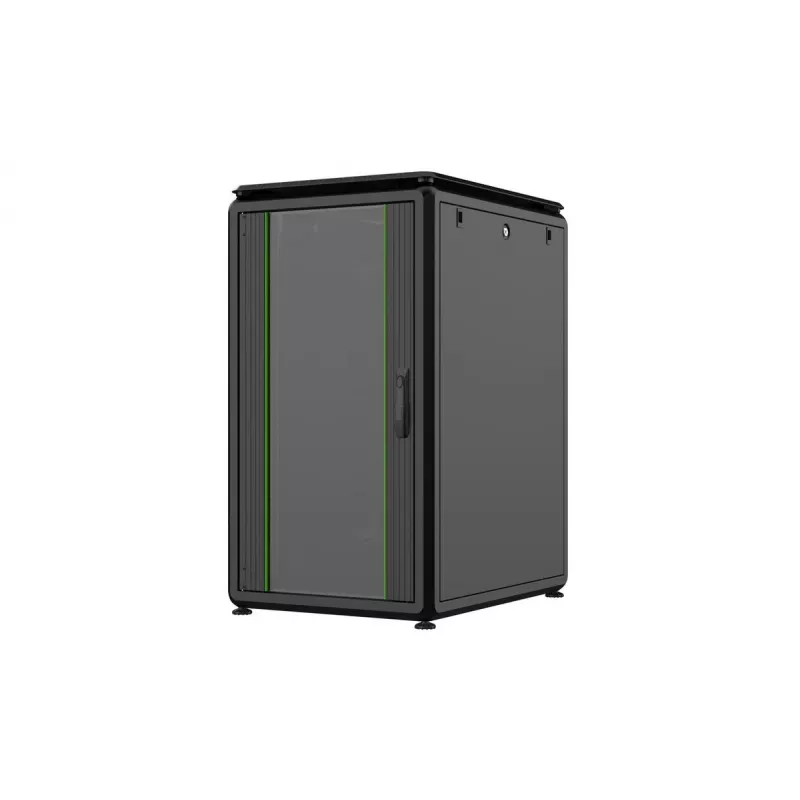

The Lanview RDL20U68BL is a freestanding 20U rack cabinet with external dimensions W:600 x D:800 x H:1075 mm and a load capacity of up to 600 kg. Designed for office and system rooms, this black IP20-rated cabinet provides a robust steel structure, adjustable installation rails and a split front door with tempered smoke glass. The cabinet is available in a flatpack option for efficient transport and storage and is intended for housing network and server equipment in indoor environments.

Advantages

The cabinet offers a strong and durable construction with easy assembly using simple tools and removable panels for maintenance. Adjustable installation rails allow depth adaptation for different devices, while integrated provisions for vertical cable managers and a wide, rubber-edged bottom cable entry simplify cable routing and protect cables from damage. The front door uses a handle-lock mechanism with break-resistant 4 mm tempered anti-static glass and the rear door and side panels have barrel-locking systems for secure access from all sides.

Suitable for

• Small to medium server rooms and office network closets
• Rack-mounting network switches, patch panels and 19" equipment up to 20U
• Indoor installations requiring IP20 protection

Key specifications

• Model: Lanview RDL20U68BL (MPN: RDL20U68BL, EAN: 5420016845825)
• Rack capacity: 20U
• External dimensions (W x D x H): 600 x 800 x 1075 mm
• Maximum load: 600 kg
• Weight: 50 kg
• IP rating: IP20 (indoor use)
• Colour: Black

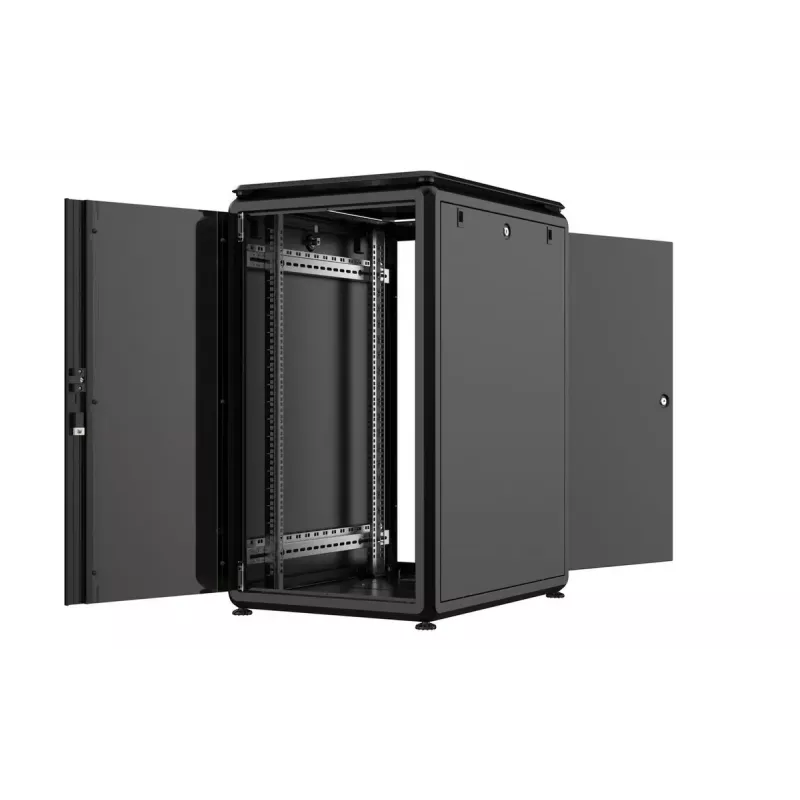

• Front door: horizontally split, 4 mm tempered smoke anti-static glass, handle-lock

How to use

Assemble the cabinet on a flat surface using basic tools according to the included instructions or flatpack assembly guide. Mount the adjustable installation rails to the required depth and secure rack equipment such as patch panels, switches and servers using standard 19" rack mounting hardware. Route cables through the wide bottom cable entry and use the rubber-edged sliding module to protect and seal the opening. Install vertical cable manager modules where needed and secure cables with the provided side bracket tie-up points. Use the handle-lock for front access and the barrel locks for side and rear panels when servicing or relocating equipment.

Recommendations

Install the cabinet indoors on a level surface and ensure adequate ventilation and clearance around the cabinet. Distribute server and equipment weight evenly across mounting rails and maintain proper cable management to avoid airflow obstruction and to facilitate maintenance.
