Bezdrôtový access point Ruijie Networks RG-RAP1260 2,4 GHz 5 GHz

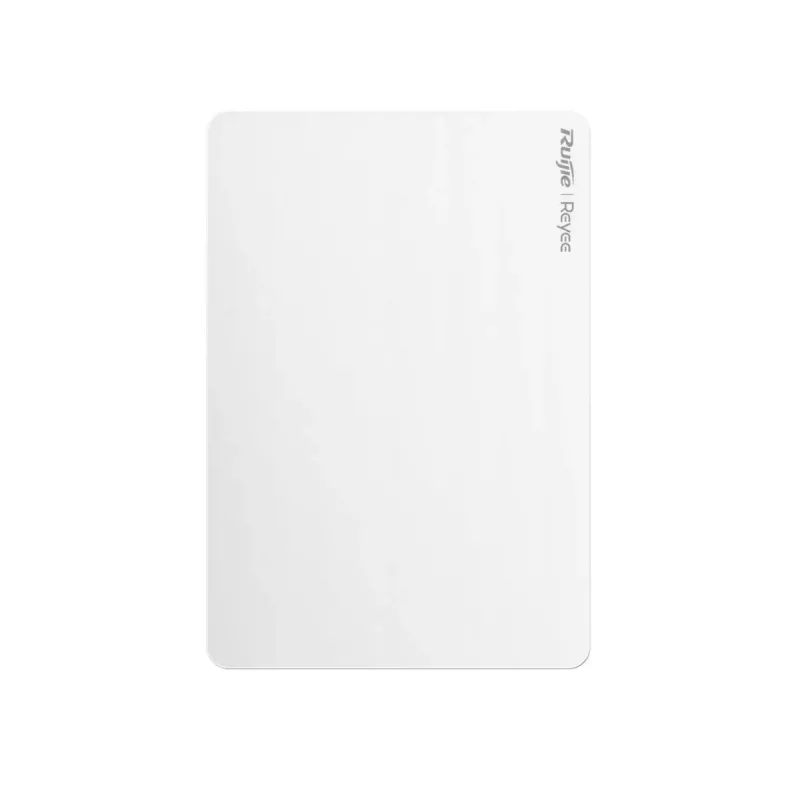

The Ruijie Networks RG-RAP1260 is a dual-band wireless access point operating on 2.4 GHz and 5 GHz bands and delivering combined maximum throughput up to 2976 Mbit/s. It supports IEEE 802.11a/b/g/n/ac/ax standards, secure authentication methods (SSID, WPA-PSK, WPA2-PSK), Power over Ethernet (PoE) installation, and Gigabit Ethernet connectivity. The device is designed for deployment in environments that require reliable, high-capacity Wi‑Fi and simplified remote management via cloud services.

Advantages

The RG-RAP1260 provides high aggregate bandwidth and dual-band operation to reduce latency in applications such as video conferencing, while supporting up to 900 Mbps terminal access rates. It includes built-in security options for protected wireless access and PoE support for flexible mounting. Cloud features simplify device maintenance with Reyee free DDNS, cloud portal authentication, remote monitoring and maintenance, firmware upgrades via cloud, and an app library dynamic update mechanism.

Suitable for

• Small and medium offices requiring stable Wi‑Fi for video conferencing and collaboration
• Retail or public areas with medium user density
• Classrooms and training rooms needing reliable wireless connectivity

Key specifications

• Model: RG-RAP1260
• Wireless bands: 2.4 GHz and 5 GHz
• Maximum data transfer rate: 2976 Mbit/s
• Supported standards: IEEE 802.11a/b/g/n/ac/ax
• Security: SSID, WPA-PSK, WPA2-PSK
• Ethernet ports: 5 × RJ-45 (10/100/1000 Mbit/s)
• Antennas: 5
• Power: PoE support, max power consumption 12 W
• Colour: White

How to use

Mount the access point in a central location and connect it to a PoE-capable switch or injector to provide power and network connectivity. Use the cloud portal or local management interface to configure SSIDs, security settings (WPA-PSK/WPA2-PSK) and radio parameters. Place client devices on the appropriate 2.4 GHz or 5 GHz network according to coverage and performance needs.

Recommendations

For best performance in video conferencing and low-latency applications, assign high-priority traffic to the 5 GHz band and ensure firmware is kept up to date via the cloud upgrade function. Use Reyee DDNS and cloud portal authentication to streamline remote monitoring and maintenance.
