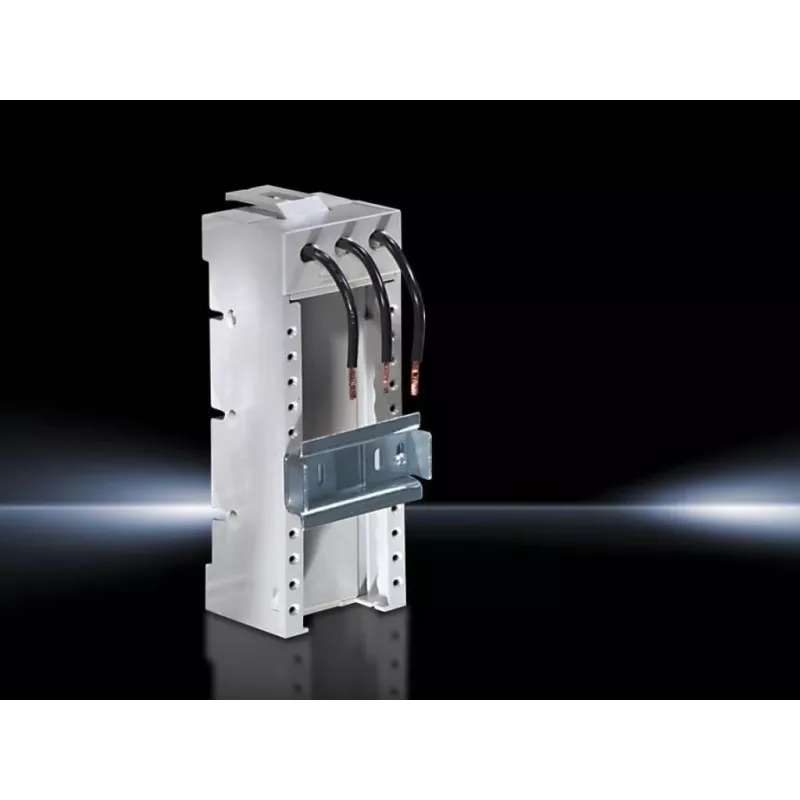

Rittal SV 9617.000 držiak zbernice, polyamid, biely, pre RiLine60, 1 kus

In low-voltage power distribution, securely mounting busbars is critical for safety and reliability. The Rittal SV 9617.000 busbar support provides a robust, insulated solution for 3-pole and 4-pole busbar systems up to 1600 A, ensuring stable positioning and electrical isolation in RiLine60 assemblies.

Who is it for

Panel builders, switchgear manufacturers, and electrical engineers who need to mount busbars in Rittal RiLine60 systems. It is ideal for applications requiring high current capacity, flame-retardant insulation, and quick snap-on installation.

Main features

• Supports 3-pole and 4-pole busbar configurations
• Made of white polyamide (RAL 9010) with UL 94 V-0 flammability rating
• Snap-on mounting for tool-free installation
• Fully insulated for safe operation up to 1600 A
• Compatible with busbar widths 12–30 mm and thicknesses 5–10 mm
• Operating temperature range -25 °C to +70 °C
• Complies with IEC 61439, UL, and cUL standards

Specifications

• Product type: Busbar support
• Material: Polyamide
• Colour: White

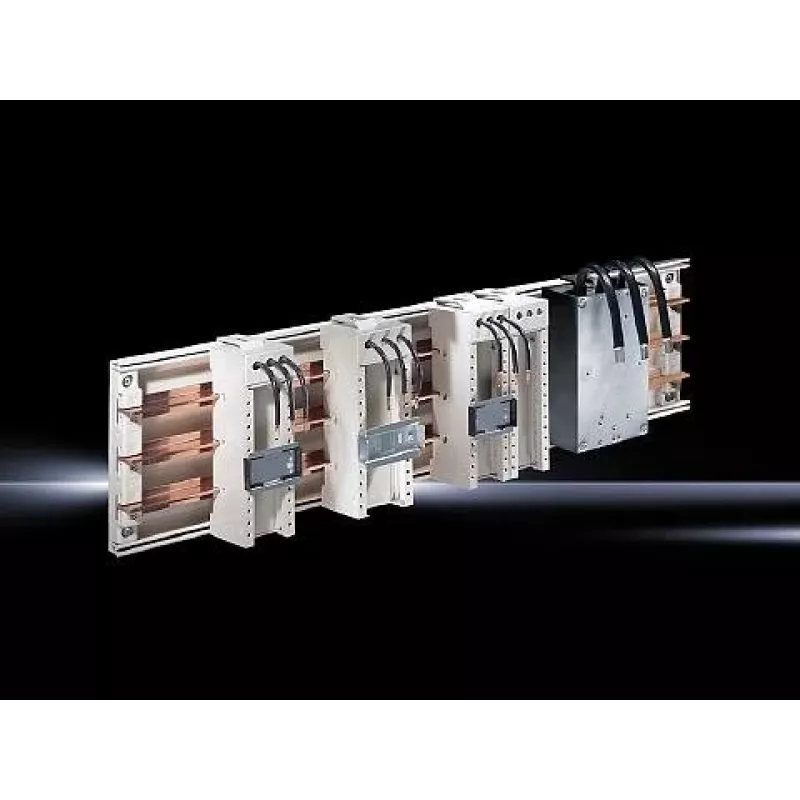

• System compatibility: Rittal RiLine60
• Busbar system: SV
• Number of poles supported: 3-pole, 4-pole
• Max. rated current: 1600 A
• Mounting type: Snap-on
• Insulation: Fully insulated
• Suitable busbar dimensions: Width 12–30 mm, thickness 5–10 mm
• Flammability rating: UL 94 V-0
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +80 °C
• Standards: IEC 61439, UL, cUL
• Protection category: IP00
• Quantity per pack: 1 piece
• Dimensions: 54 mm (height) x 160 mm (width)
• Weight: 380 g

Tips

Ensure the busbar dimensions fall within the supported range for a secure fit. For 4-pole configurations, use additional supports as needed. Store in a dry environment within the specified temperature range to maintain material integrity.
