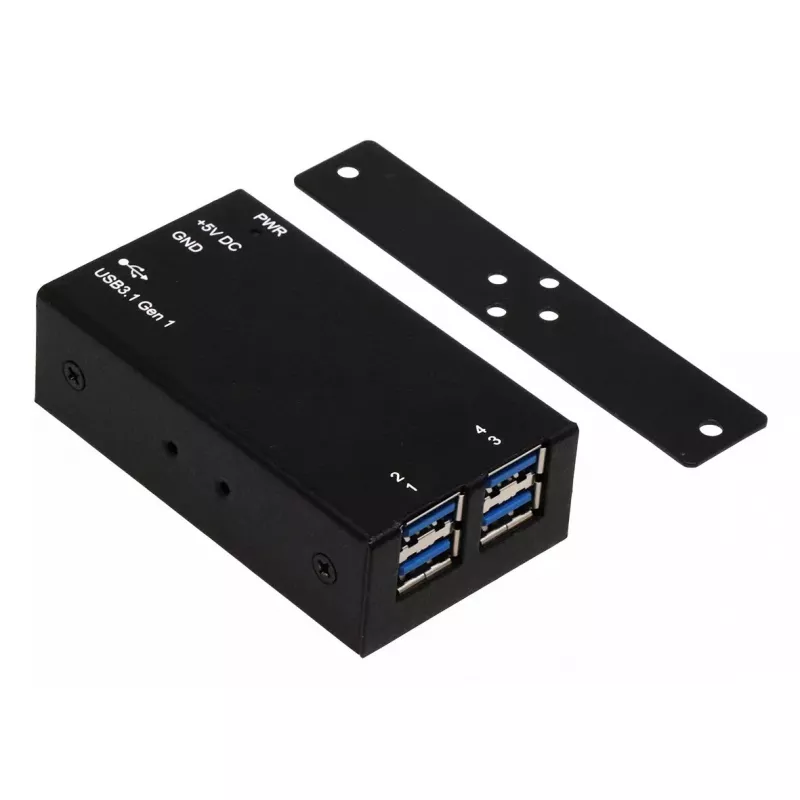

Rozhranie hub EXSYS EX-1180HMS USB 3.2 Gen 1 Type-B

The EXSYS EX-1180HMS is a compact metal USB hub that expands a single USB 3.2 Gen 1 (Type-B host) port into four downstream USB 3.2 Gen 1 (Type-A) ports. Designed for installation in 19-inch racks or special housings, the hub offers a robust metal enclosure, low power consumption (0.6 W) and a data transfer rate up to 5000 Mbit/s. It includes the EX-K1110 cable for connection to a 5 V DC power supply and provides 15 kV ESD overvoltage protection for connected end devices.

Advantages

The EXSYS EX-1180HMS combines a small footprint with industrial-grade protection, offering four high-speed USB 3.2 Gen 1 ports in a sturdy metal housing. With integrated 15 kV ESD protection, compatibility with common Windows systems and minimal power draw, the hub is suitable for continuous operation in automation and office environments. The package includes the required EX-K1110 cable for external 5 V DC power connection.

Suitable for

• Connecting multiple external USB peripherals (up to four) to one USB 3.2 Gen 1 Type-B host port
• Installation in 19-inch racks or special housings in industrial and automation setups
• Office workstations requiring additional USB Type-A ports for peripherals

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-B)
• Hub interfaces: 4 × USB 3.2 Gen 1 (Type-A) downstream ports
• Data transfer rate: up to 5000 Mbit/s
• Power consumption: 0.6 W (typical)
• ESD protection: 15 kV overvoltage protection for end devices
• Dimensions (W×D×H): 81.7 × 46.6 × 24.4 mm
• Weight: 0.478 kg
• Colour: Black
• Included accessories: EX-K1110 cable for 5 V DC power connection

How to use

Connect the EX-1180HMS to the host computer using the Type-B host connector and the supplied EX-K1110 cable to a 5 V DC power supply if external power is required. Plug USB Type-A devices into the downstream ports. The hub is plug-and-play on supported Windows systems; no additional drivers are normally required. Secure the unit in a 19-inch rack or dedicated housing if used in an industrial or automation installation.

Recommendations

For reliable long-term operation, place the hub in a ventilated, dry environment and use a stable 5 V DC power supply matching the hub's requirements. Avoid exposing connected devices to strong electromagnetic interference and follow your system's grounding and ESD protection procedures when installing in industrial environments.
