Ruckus 10G-SFPP-BXD-S-40 kompatibilný BlueOptics SFP+ BO55J33640D

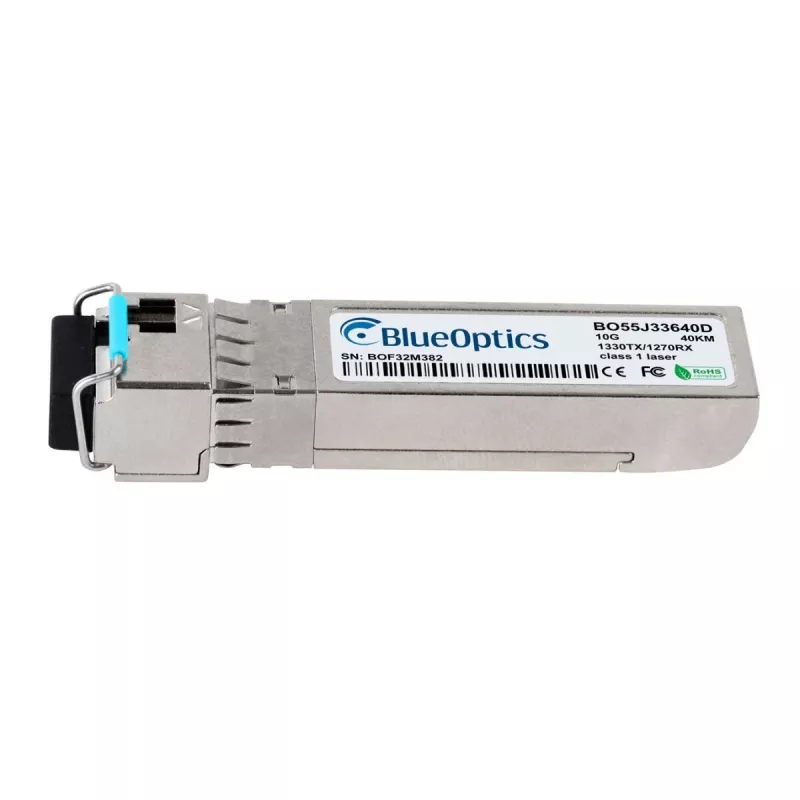

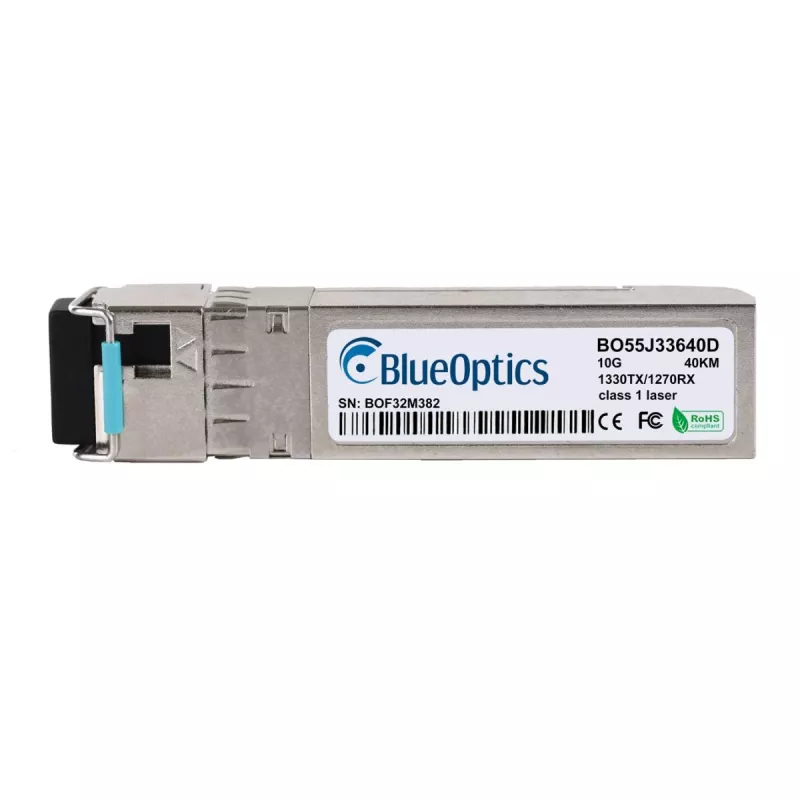

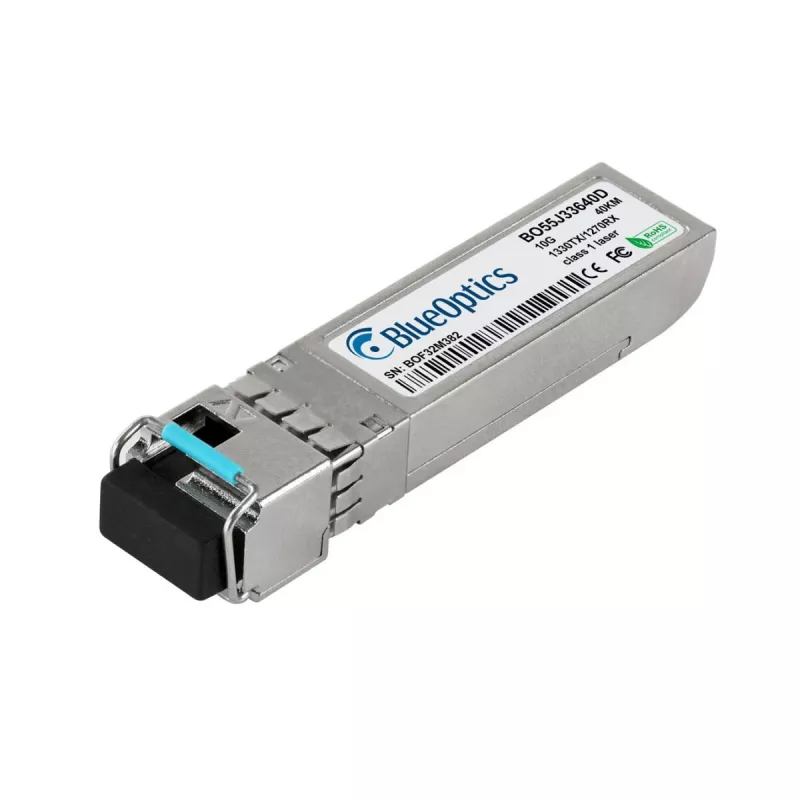

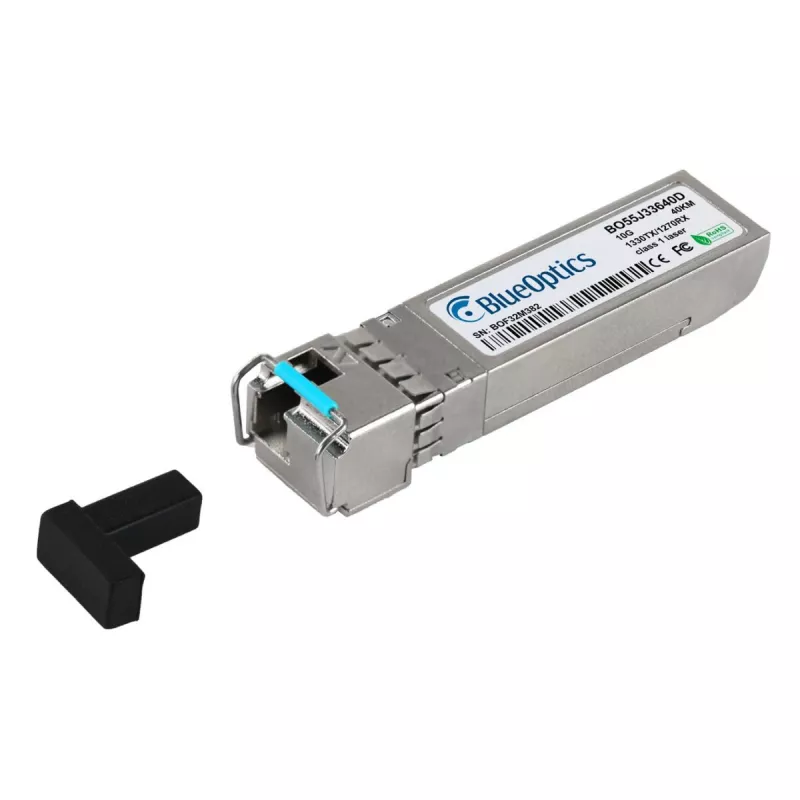

The BlueOptics BO55J33640D is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet networks. It is fully compatible with Ruckus 10G-SFPP-BXD-S-40 equipment, providing reliable and cost-effective connectivity for long-distance single-mode fiber links.

Advantages

This BiDi (Bi-Directional) transceiver operates over a single fiber strand, reducing fiber infrastructure costs. With a reach of up to 40 km, it is ideal for metropolitan area networks (MANs) and campus backbone connections. The module supports Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring and is hot-swappable for easy installation and maintenance.

Suitable for

• 10GBASE-BX40-D compliant networks
• Ruckus switches and routers with SFP+ slots
• Single-mode fiber (SMF) point-to-point links
• Enterprise and data center applications requiring long-distance 10 Gbps connectivity

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Max Distance: 40 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: LC Simplex
• Wavelength: TX 1330 nm / RX 1270 nm
• BiDi: Yes
• DDM/DOM: Yes
• Compatibility: Ruckus (equivalent to 10G-SFPP-BXD-S-40)
• Protocol: 10GBASE-BX40-D
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1.5 W
• Hot-Swappable: Yes
• MSA Compliant: Yes
• Laser Type: DFB Laser
• Voltage: 3.3V
• Safety Certification: FDA/CDRH, IEC-60825
• Housing Material: Metal

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This module is a direct replacement for the Ruckus 10G-SFPP-BXD-S-40 at a lower cost.
