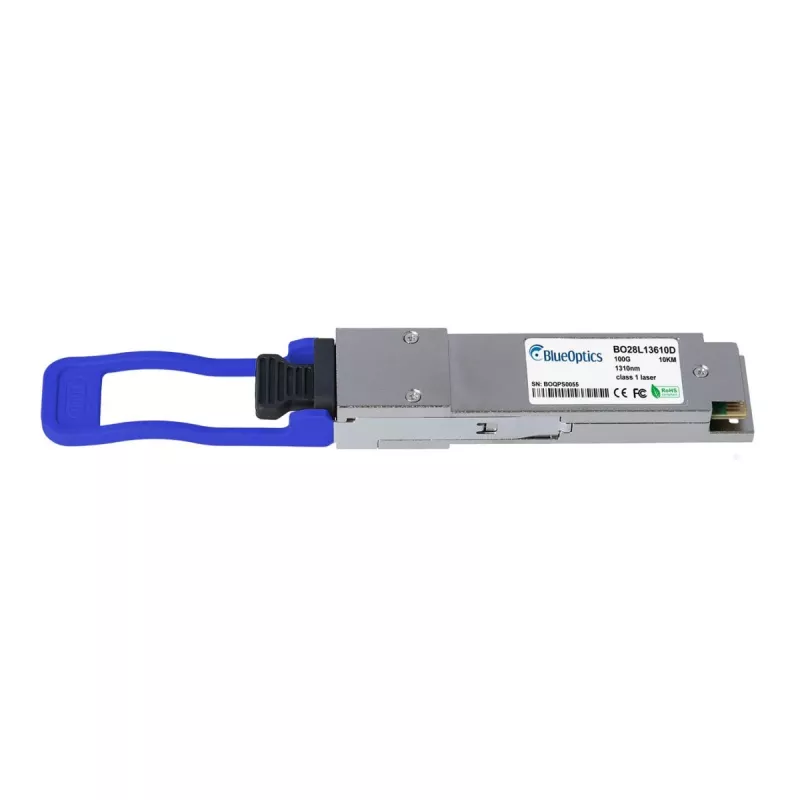

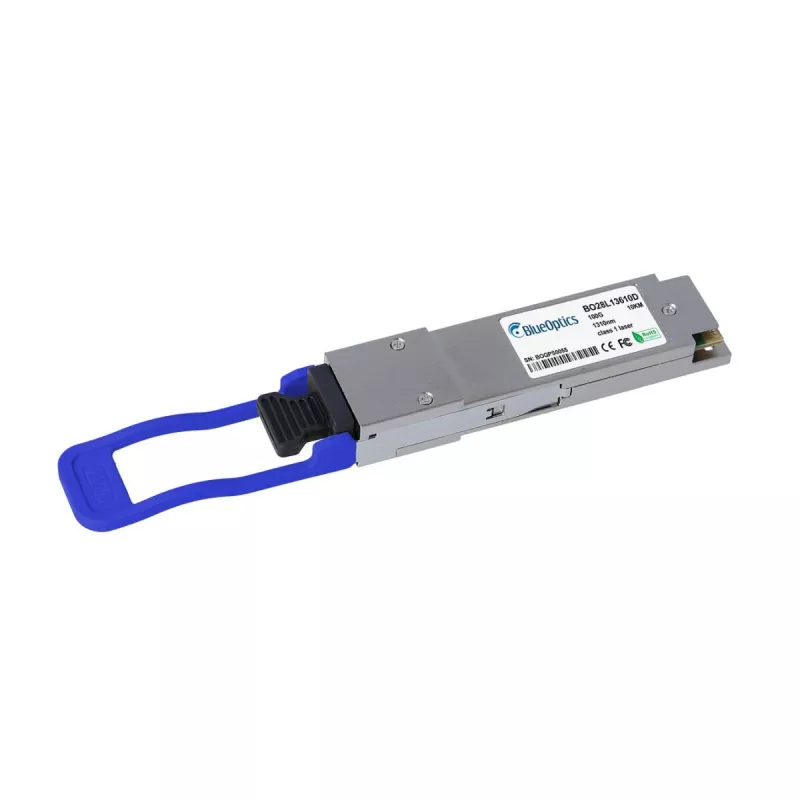

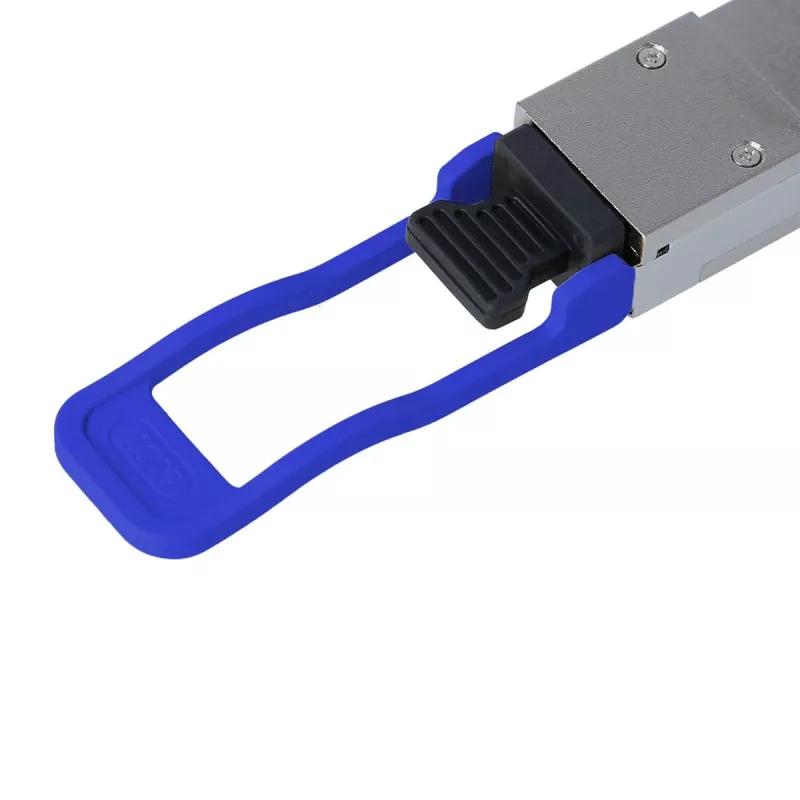

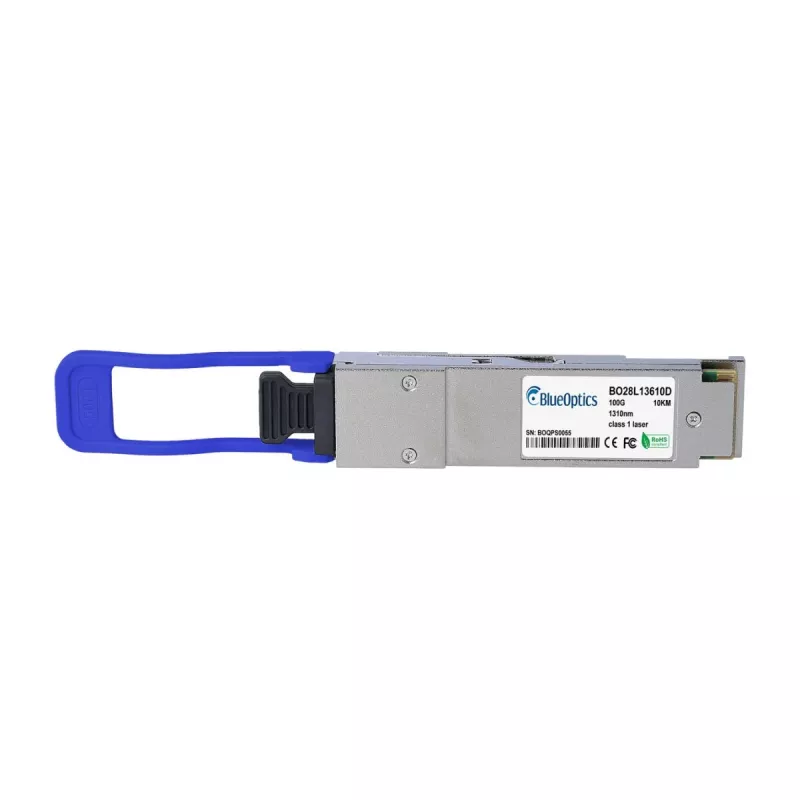

Ruckus kompatibilný BlueOptics QSFP28 100GBASE-LR4 transceiver (E100G-QSFP28-LR4-10KM-BO)

The BlueOptics BO28L13610D is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet networks. It is fully compatible with Ruckus E100G-QSFP28-LR4-10KM equipment, offering reliable connectivity over single-mode fiber at distances up to 10 km. This hot-swappable module supports 100GBASE-LR4 standards and features LAN WDM technology with four wavelengths. Ideal for data center interconnects, enterprise networks, and high-performance computing environments.

Advantages

Cost-effective alternative to OEM modules with full compatibility and performance. Low power consumption under 4.5W, extended temperature range, and 5-year warranty ensure long-term reliability. Digital Diagnostic Monitoring (DDM) provides real-time performance data.

Suitable for

• Data Center Interconnects
• Enterprise Network Backbones
• High-Performance Computing Clusters
• Telecommunications Infrastructure

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps (4x25G)
• Protocol: 100GBASE-LR4
• Max Reach: 10 km over Single-Mode Fiber (SMF)
• Connector: LC Duplex
• Wavelengths: 1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm
• Transmitter: DFB Laser
• Receiver: PIN
• Power Consumption: < 4.5W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC, TUV, UL

Recommendations

For optimal performance, use with high-quality single-mode fiber patch cables and ensure proper cleaning of optical connectors. This transceiver is a direct replacement for Ruckus E100G-QSFP28-LR4-10KM modules.
