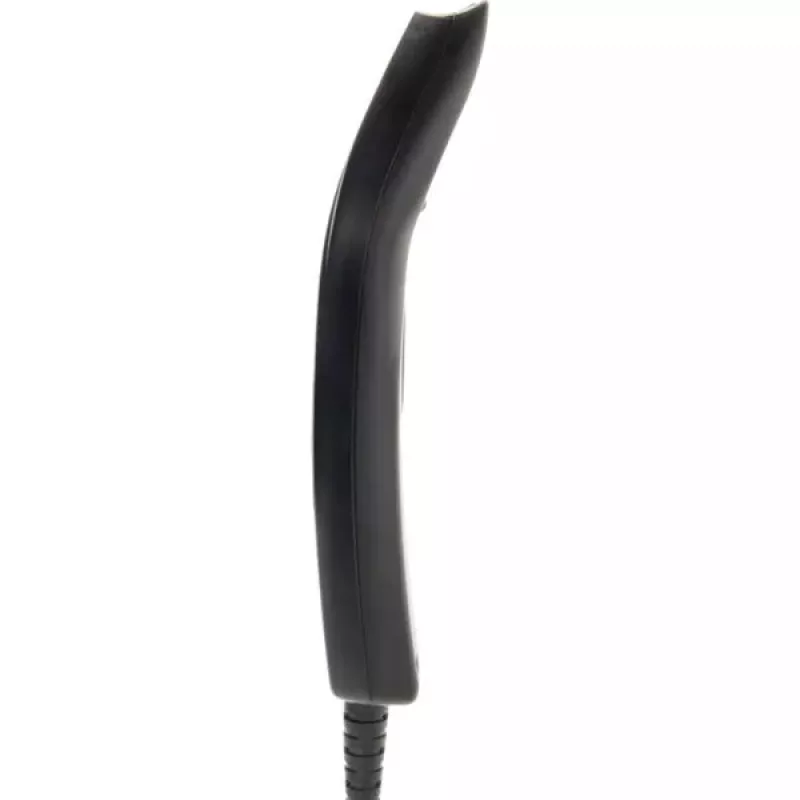

Ručná čítačka čiarových kódov Opticon OPL-6845S

The Opticon OPL-6845S is a handheld 1D laser barcode reader designed for efficient, reliable scanning in retail, service counters and small warehouse environments. Its compact, lightweight ABS housing (75 g) and wired USB connection make it suitable for continuous use without relying on batteries, while the IP42 rating provides basic protection in everyday workplaces.

Advantages

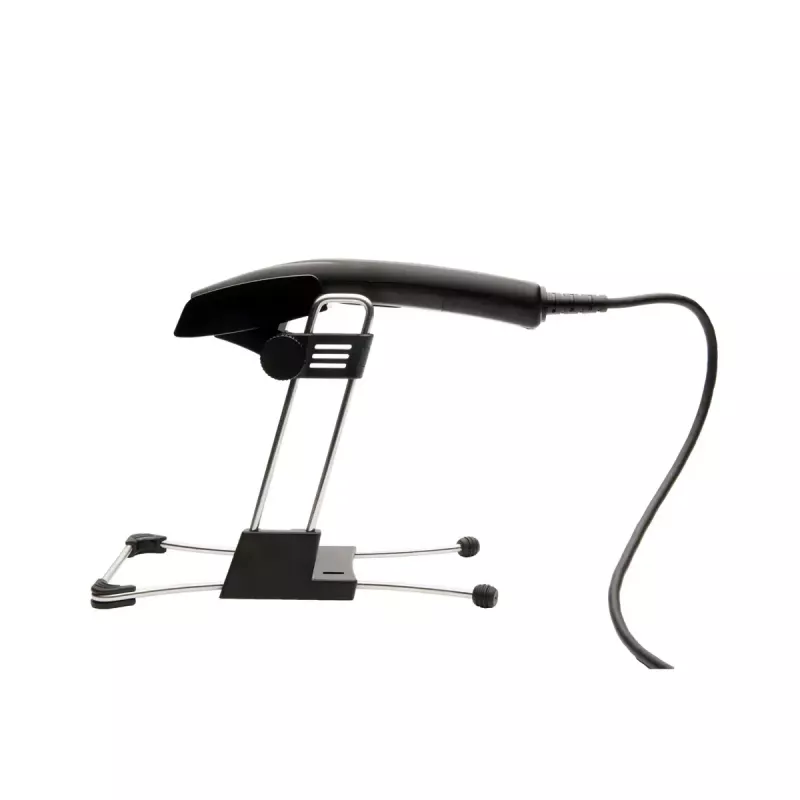

The OPL-6845S offers a high read rate of up to 100 scans per second and supports a wide range of linear (1D) barcode symbologies including Code 39, Code 128, EAN/UPC and GS1-128. Its ergonomic shape and low weight provide comfortable hand-held operation, and the unit can be used in both manual trigger mode and auto-trigger mode when paired with a separately sold stand for hands-free scanning. The durable ABS housing and plated base improve stability and durability during normal use.

Suitable for

• Retail check-out counters and point of sale
• Service desks and reception areas
• Small warehouse inventory and stock control

Key specifications

• Scanner type: 1D laser
• Sensor type: Laser
• Read rate (max): 100 reads/s
• Connectivity: Wired (USB)
• Power supply: 5 V
• Weight: 0.075 kg
• Housing material: ABS (Acrylonitrile butadiene styrene)
• Protection rating: IP42
• Supported linear barcodes: Plessey, JAN, Interleaved 2 of 5, Industrial 2 of 5, GS1-128 (UCC/EAN-128), EAN 128, Code 93, Code 39, Code 128, Codabar, S-Code, Telepen, Trioptic, UPC

How to use

Connect the Opticon OPL-6845S to a host device via the wired USB connection and ensure the system recognises the scanner. For handheld operation, use the manual trigger to scan 1D barcodes by aiming the laser at the code and pulling the trigger. For hands-free scanning, place the scanner in the separately available stand and enable auto-trigger mode so items can be presented to the beam without pressing the trigger.

Recommendations

Use the OPL-6845S on stable surfaces and avoid exposing the scanner to heavy dust or water; while the IP42 rating protects against limited splashing and solid objects, it is not fully dust- or waterproof. Handle the scanner as a lightweight handheld device and pair it with the recommended stand for frequent hands-free operation.
