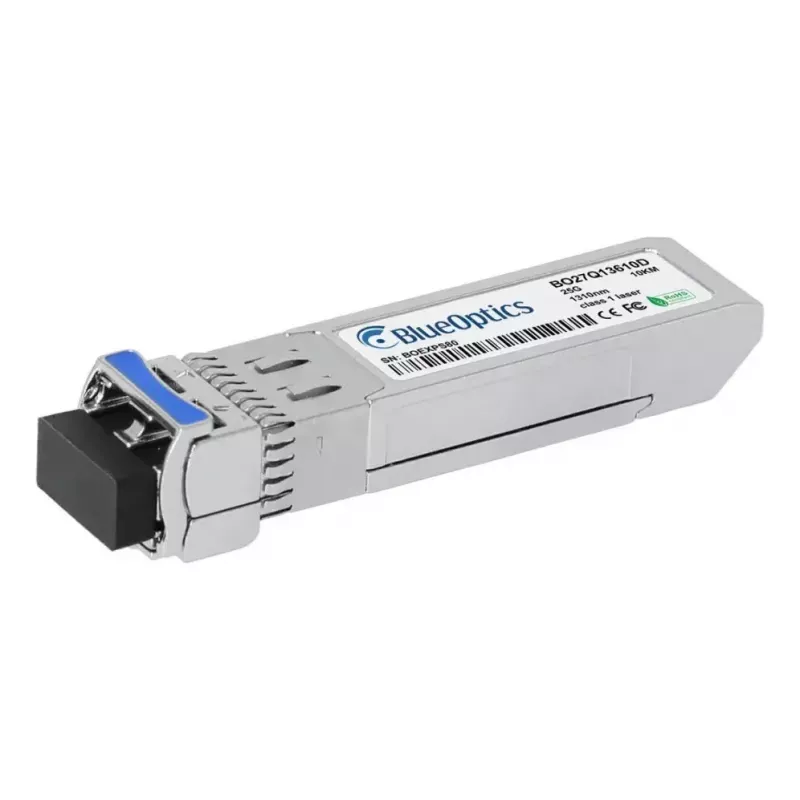

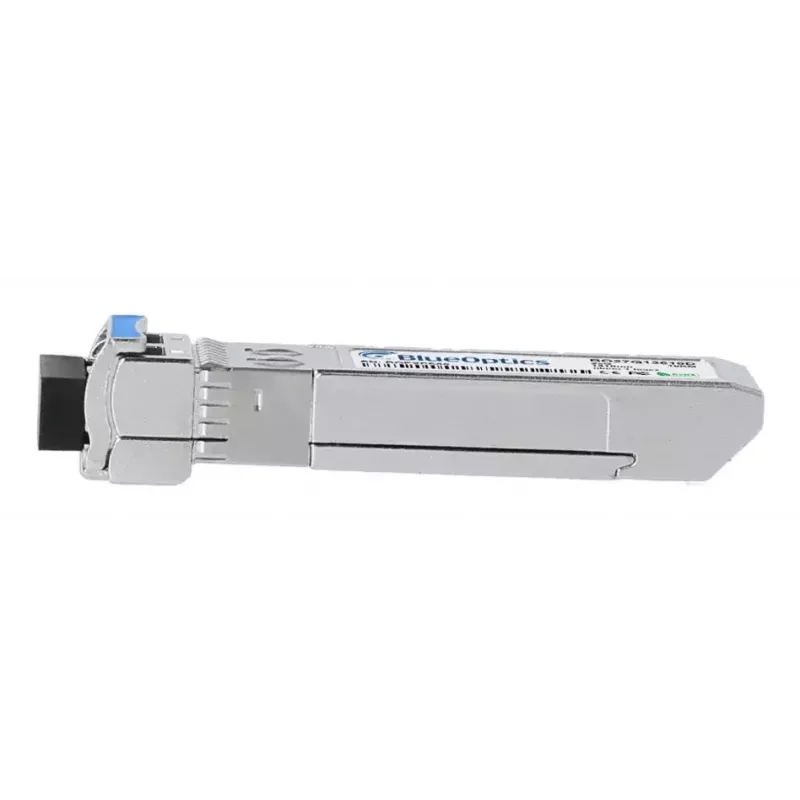

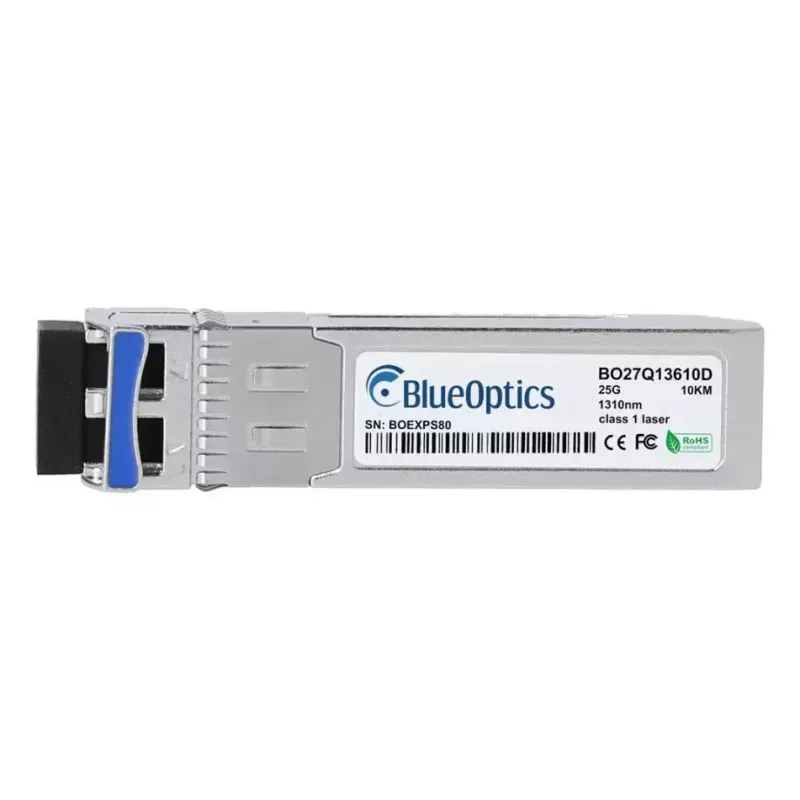

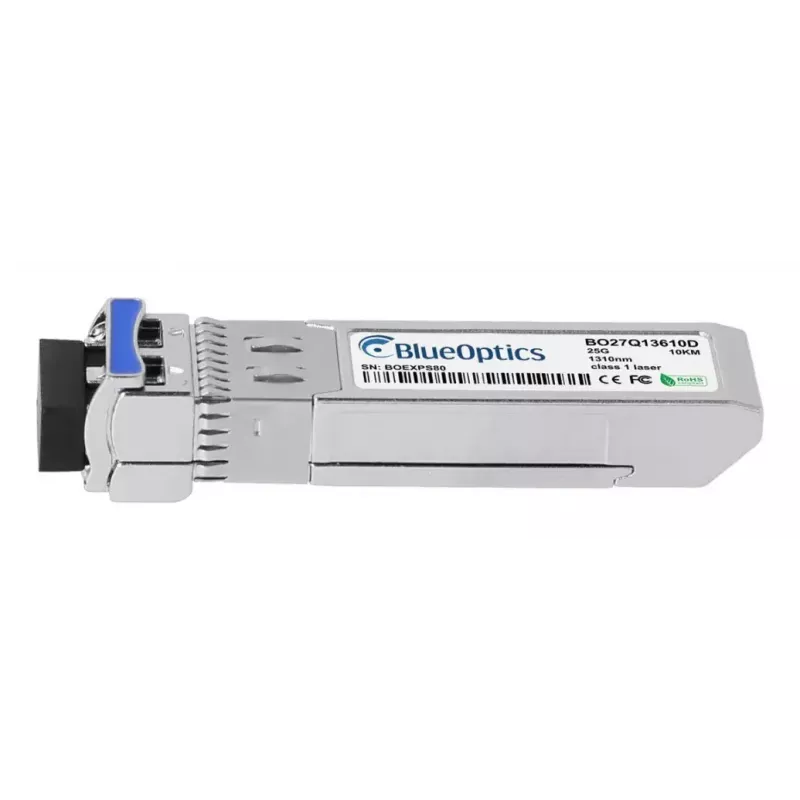

SFP28 transceiver modul BlueOptics 02312LSE-BO 25000 Mbit/s

The BlueOptics 02312LSE-BO SFP28 transceiver module supports a maximum data transfer rate of 25,000 Mbit/s and is designed for use in high-speed optical networks. Housed in a compact silver metal enclosure and weighing approximately 20 g, this module uses an MTP/MPO fiber optic connector and supports optical link distances up to 10,000 m. It is intended for installations that require small-form pluggable modules compatible with SFP28 ports and high-density fiber cabling.

Advantages

The SFP28 form factor provides a high-density, hot-pluggable solution for upgrading 25 Gbps ports without replacing existing switch hardware. The module's optical connector type simplifies connections in parallel fiber environments, and the compact silver housing offers robust mechanical protection while keeping weight low. Support for extended reach up to 10 km enables flexible deployment across campus, data center and carrier networks.

Suitable for

• 25 Gbps Ethernet uplinks and server connections
• Data center spine and leaf fabric
• High-density fiber patch panels with MTP/MPO cabling
• Metro and enterprise links up to 10 km

Key specifications

• Maximum data transfer rate: 25,000 Mbit/s
• Maximum optical transfer distance: 10,000 m
• Connector type: MTP/MPO fiber optic
• Form factor: SFP28 (small form-factor pluggable)
• Housing colour: Silver
• Weight: 0.02 kg

How to use

Insert the SFP28 transceiver into a compatible SFP28 slot on a switch, router or network adapter while the device is powered down or following the manufacturer's hot-swap instructions. Connect the MTP/MPO fiber cable to the module's optical interface, ensuring correct orientation and cleanliness of the connector endfaces. Verify link status on the host device and configure interface settings such as speed and duplex if required by the network equipment.

Recommendations

Before installation, inspect and, if necessary, clean fiber connectors with appropriate cleaning tools to prevent signal loss. Match fiber type and transceiver wavelength within the link and adhere to bend radius guidelines for MTP/MPO cabling. For long-term reliability, monitor link performance and maintain firmware and driver compatibility on connected hardware.
