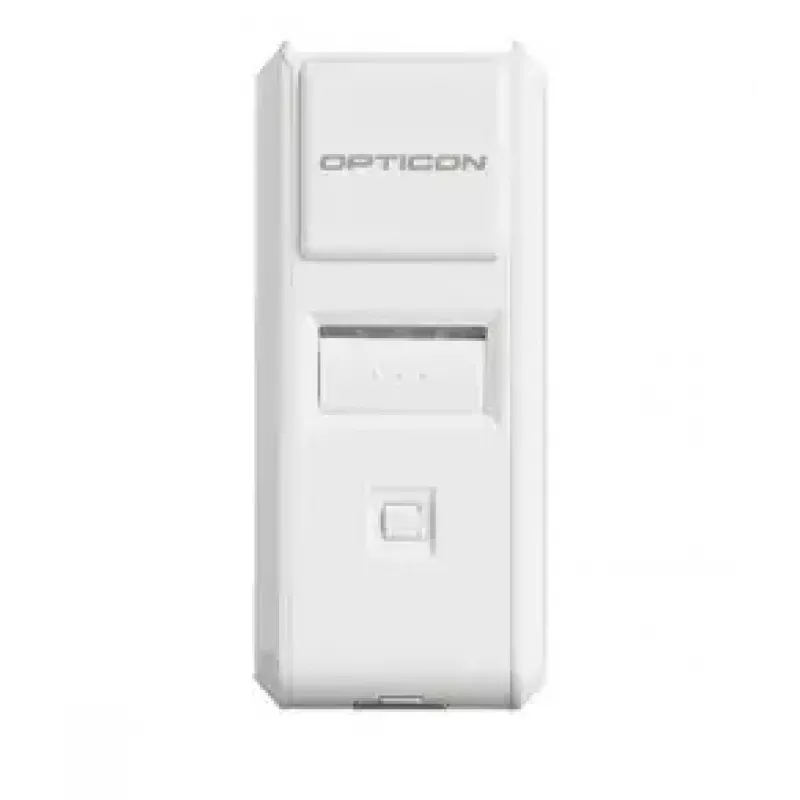

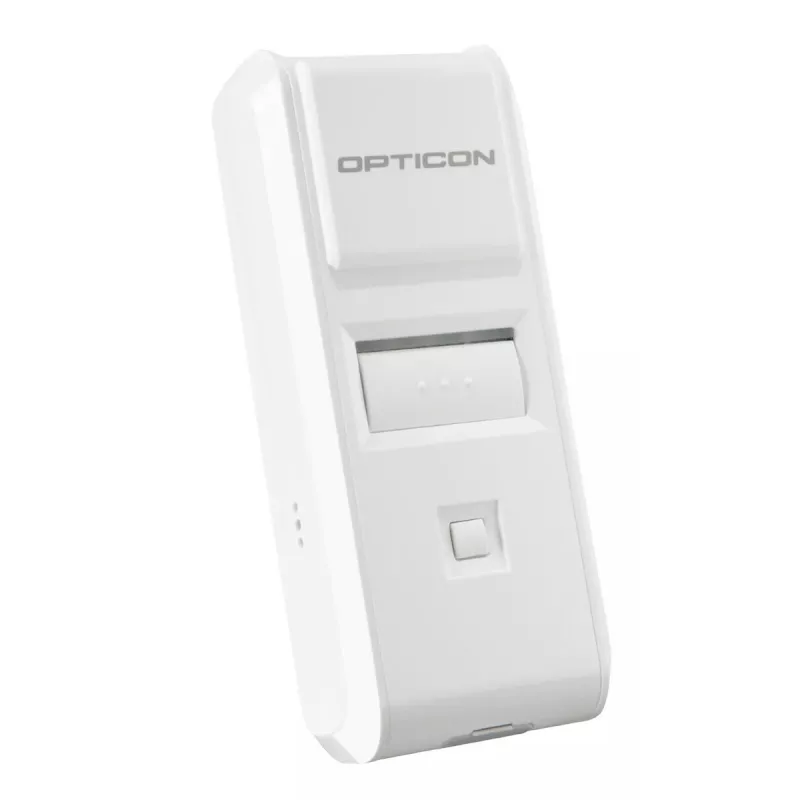

Ručná čítačka čiarových kódov Opticon OPN-4000i

The Opticon OPN-4000i Bluetooth Companion Scanner is a compact handheld barcode reader with a CCD linear sensor for fast 1D barcode capture. Designed for mobile use, it connects wirelessly to Bluetooth-ready devices (Apple, Android, Windows) and fits easily in a pocket or on a keyring, making it suitable for field sales, retail POS, inventory control and asset tracking. The device features a rechargeable Lithium-Ion/Polymer battery, audible and visible scan confirmation, and a durable ABS housing with IP42 protection.

Advantages

The OPN-4000i combines an advanced CCD linear scan engine with a small, lightweight form factor and broad Bluetooth profile support (Apple MFi, SPP, HID). It is ready to use out of the box with simple pairing, provides reliable feedback after each successful read, and stores firmware and settings in internal Flash and SRAM memory. Its USB-rechargeable battery and two-year warranty add to its practicality for business deployments.

Suitable for

• Mobile field sales and service
• Retail point-of-sale (POS)
• Inventory management and stocktaking
• Asset tracking and logistics

Key specifications

• Scanner type: Handheld, 1D CCD linear sensor
• Supported codes: Standard 1D symbologies (Code 39, Code 128, EAN-13, EAN-8, UPC, GS1-128, Codabar, MSI, Code 11, Code 93, Telepen, S-Code, Plessey, JAN, Trioptic)
• Connectivity: Bluetooth 2.1 + EDR; profiles: Apple MFi, SPP, HID
• Memory: 1 MB Flash ROM, 96 kB SRAM
• Power: USB-rechargeable Lithium-Ion/Polymer battery (600 mAh)
• Dimensions & weight: 3.27 x 1.42 x 0.85 in (LxWxD); 0.053 kg (approx. 1.87 oz)
• Housing: ABS material, product colour white; Ingress protection: IP42
• Warranty: Two-year manufacturer warranty

How to use

Charge the OPN-4000i via the supplied USB cable before first use. Turn the scanner on and pair it with your Bluetooth-enabled device using the appropriate profile (Apple MFi, SPP or HID) according to your host device’s Bluetooth settings. Aim the scanner at the 1D barcode at a suitable distance and press the trigger; the scanner will decode the barcode and provide audible and visible confirmation. Data will be transmitted to the connected device in real time or stored/transferred according to your application and pairing mode.

Recommendations

For reliable scanning, keep the scanner window clean and avoid direct sunlight or strong glare on barcodes. Use the SPP or HID profile when integrating with custom mobile apps, and select Apple MFi for guaranteed compatibility with iOS devices. Charge the battery regularly to maintain performance and follow manufacturer instructions for firmware updates.
