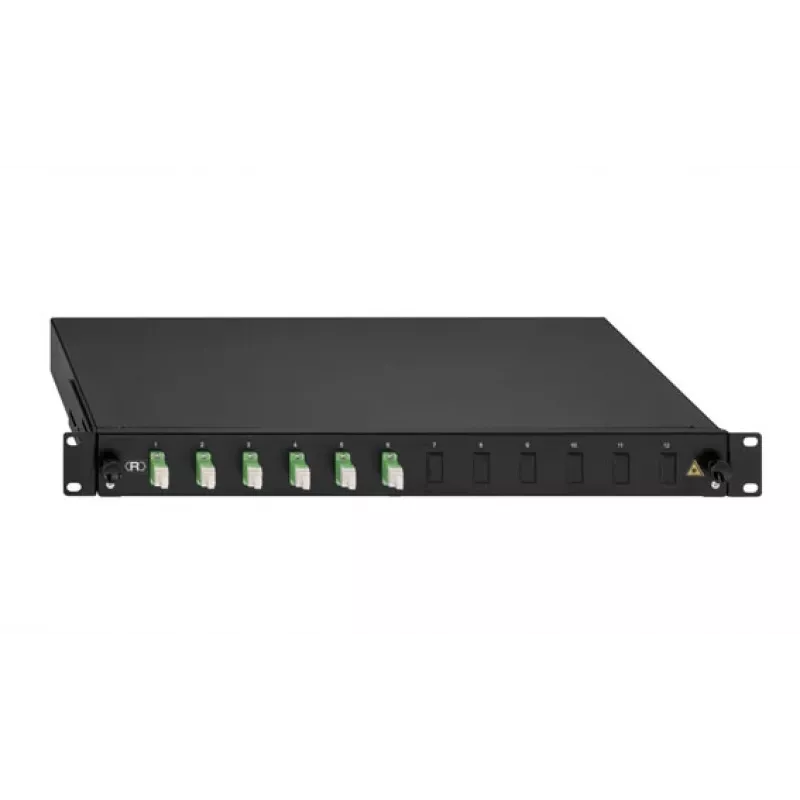

Rutenbeck BasicLine 19" výsuvná spájacia krabica 1U, svetlosivá 2280302060

Fiber optic installations in 19-inch racks often lack accessible space for splicing and patching. The Rutenbeck BasicLine Extendable Splice Box solves this by providing a pull-out 1U drawer that brings splice trays and adapter plates within easy reach, even in cramped server rooms.

Who is it for

Network technicians and data center managers who need a compact, rack-mountable solution for fiber optic splicing and patching. It fits standard 19-inch racks and suits structured cabling projects where space and accessibility are critical.

Main features

• Extendable/pull-out design for easy access to splices and connectors
• 1U height, 19-inch rack mountable
• Steel construction with powder coating in light grey (RAL 7035)
• Accommodates up to 6 adapter plates and 2 splice trays
• Four cable entry points: 2x M20/M25, 2x M25/M32
• Integrated cable management and removable front panel
• M6 grounding bolt included

Specifications

• Rack unit: 19 inch
• Height units: 1U
• Material: Steel, powder-coated
• Colour: Light grey (RAL 7035)
• Adapter plate slots: 6
• Max. splice tray capacity: 2
• Cable entry points: 4 (2x M20/M25, 2x M25/M32)
• Mounting type: Rack mount
• Adjustable mounting depth: Yes
• Removable front panel: Yes
• Integrated cable management: Yes
• Grounding bolt: M6
• Protection class: IP20
• Application: Fiber optic cable splicing and patching
• Compatibility: Rutenbeck BasicLine adapter plates and splice trays

Tips

Combine with Rutenbeck BasicLine splice trays and adapter plates for a complete fiber management system. The extendable drawer simplifies maintenance and reduces the risk of disturbing adjacent connections.
