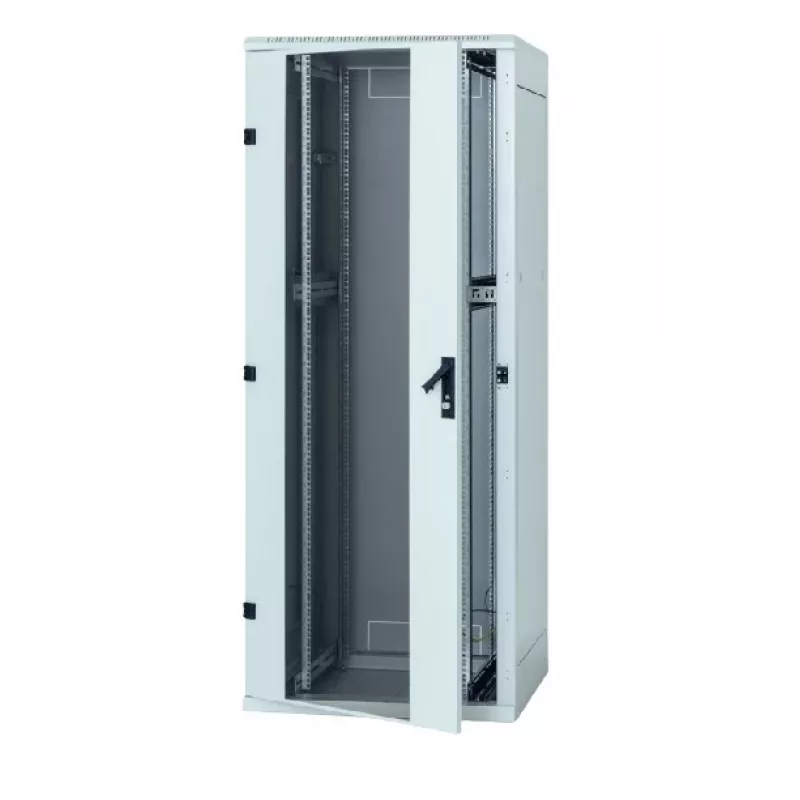

Samostatne stojaci rack Triton RMA-37-A66-CAX-N1 37U 800 kg sivá

The Triton RMA-37-A66-CAX-N1 is a freestanding rack designed for data and telecommunication equipment. It provides 37U of rack space, supports up to 800 kg load capacity and has a compact footprint (600 x 600 mm) with a height of 1750 mm. Constructed with a welded skeleton and reinforced 1.3 mm rails, the cabinet is intended for indoor IT and network installations and features IP20 protection.

Advantages

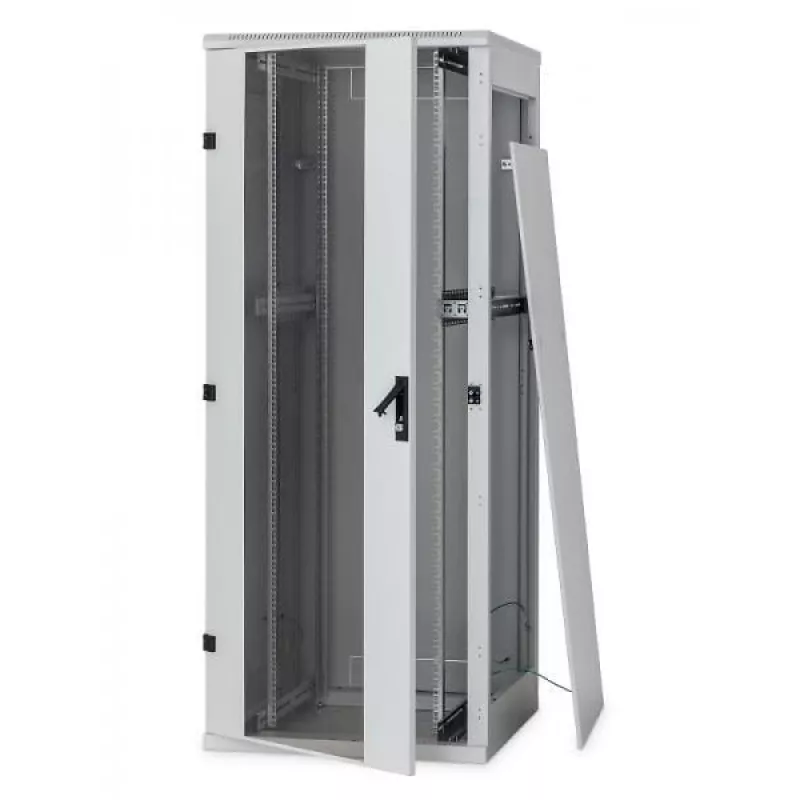

The cabinet has a rigid welded construction with wider 1.3 mm skeleton rails for improved strength. Doors can open nearly 180° and are removable or reversible to change opening direction. Vertical 19" rails are freely adjustable in depth to simplify device mounting and cable routing. Breakout-type blanking panels and brush-strip sealing reduce dust ingress at cable entries. The design supports multiple mounting options—levelling feet are included and a base, castors or heavy-duty castors with reinforcing frame are available as options.

Suitable for

• Server rooms and data centers with indoor installations
• Network closets and telecommunication cabinets
• Mounting 19" IT equipment up to 37U and 800 kg total load
• Environments that require structured cable routing and fan unit installation

Key specifications

• Model: Triton RMA-37-A66-CAX-N1
• Rack capacity: 37U
• Dimensions (W×D×H): 600 × 600 × 1750 mm
• Maximum load: 800 kg
• Weight: 65.8 kg
• IP rating: IP20
• Colour: Grey
• Skeleton rail thickness: 1.3 mm

How to use

Position the rack on levelling feet or install optional castors or a base according to your site requirements. Adjust the vertical 19" rails to the required depth and secure equipment using standard 19" mounting hardware. Route cables through the breakout blanking panels and seal openings with the supplied brush strips or protective fringe edges to limit dust ingress. If required, mount fan units using the dedicated fan-door option or install Triton fan units through the large removable opening designed for external mounting and service.

Recommendations

For stable operation, distribute weight evenly across the rack and use the recommended horizontal cable management for installations with loads above 500 kg. Equip deeper enclosures with the supplied middle pair of vertical rails for additional support, and consider the swing frame accessory for 800 mm wide cabinets when installing equipment requiring up to 150 kg support.
