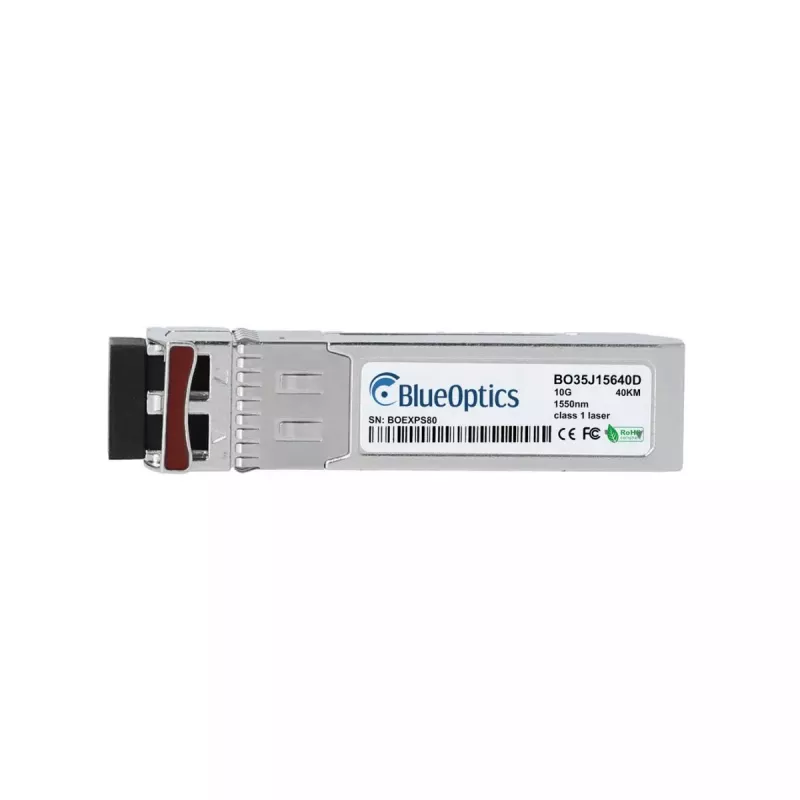

SFP+ transceiver BlueOptics 02310CNF-BO 10000 Mbit/s 1550 nm

The BlueOptics 02310CNF-BO SFP+ transceiver is a single‑module solution for 10 Gbit/s fiber optic links. It supports data rates up to 10000 Mbit/s and operates at a wavelength of 1550 nm over single‑mode fiber. The module is designed to the SFP+ form factor with an LC duplex interface, is RoHS compliant and has a reported mean time between failures (MTBF) of 1,000,000 hours. The compact, lightweight design (approx. 20 g) allows installation in switches, routers and storage interfaces that accept SFP+ modules and the LC connector type.

Advantages

This transceiver provides 10G performance with a 1550 nm optical interface, enabling long‑reach single‑mode connections where the wavelength and LC duplex connector are required. RoHS compliance and a high MTBF indicate a focus on environmental standards and long operational life. The small SFP+ form factor and light weight make it suitable for dense port deployments and straightforward hot‑swap replacement.

Key specifications

• Interface type: SFP+ (LC duplex)
• Maximum data transfer rate: 10000 Mbit/s
• Wavelength: 1550 nm
• Compatible fiber: single‑mode fiber
• Compliance: RoHS
• Mean Time Between Failures (MTBF): 1,000,000 hours
• Weight: approx. 0.02 kg
• Product colours: silver, red, black

How to use

Insert the BlueOptics SFP+ transceiver into a compatible SFP+ port until it clicks; secure any module latch according to the host device instructions. Connect an LC duplex single‑mode patch cord to the module's LC connector, observing correct transmit/receive orientation. Power and configure the host device port per network requirements (speed, duplex and any vendor‑specific settings). If Digital Diagnostics (DDM/DOM) is available and supported by the host, monitor optical parameters through the management interface for link health and troubleshooting.

Recommendations

For optimal performance, pair the transceiver with single‑mode LC duplex patch cords and ensure the host device firmware supports third‑party SFP+ modules and DDM/DOM if diagnostics are needed. Follow manufacturer guidelines for electrostatic discharge (ESD) protection during handling and store unused modules in protective packaging to avoid contamination of optical interfaces.
