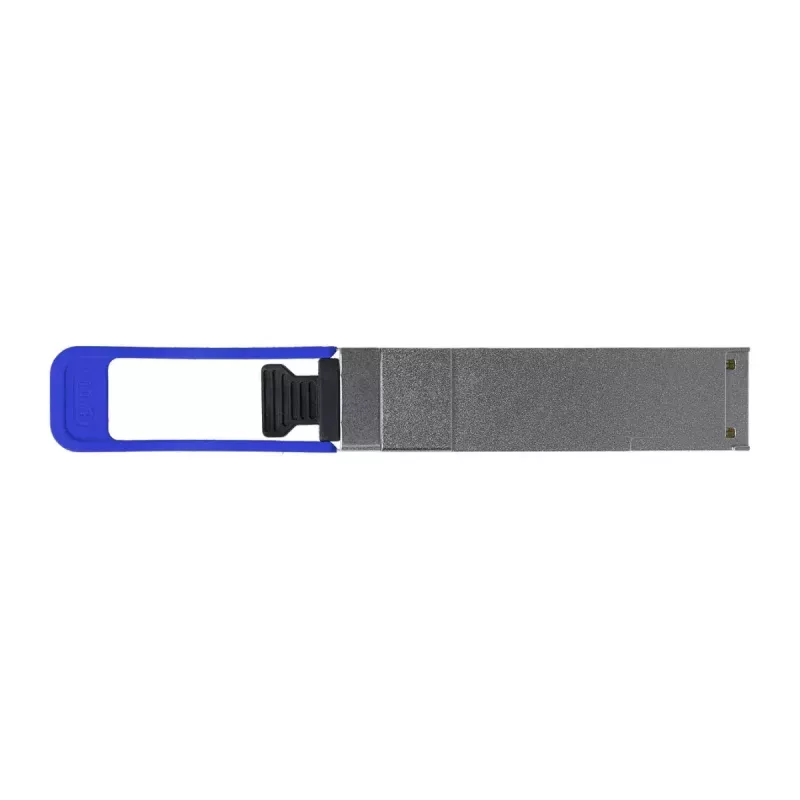

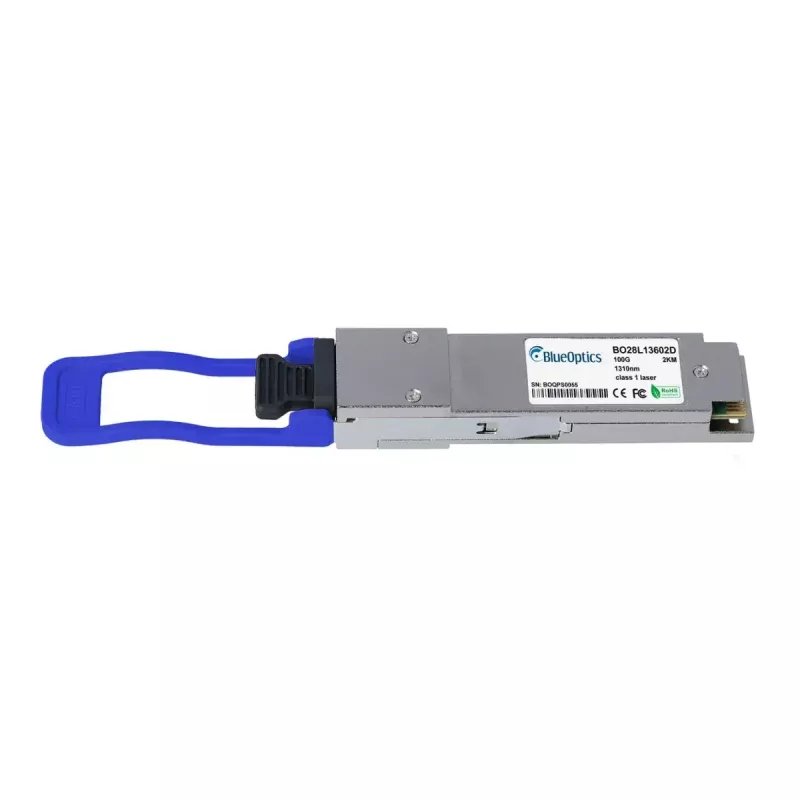

SFP transceiver BlueOptics 407-BBVG-BO optický 100000 Mbit/s

The BlueOptics 407-BBVG-BO SFP transceiver is a high-performance fiber optic module designed for 100 Gbit/s networks. Featuring a QSFP28 form factor with LC duplex fiber connector and CWDM4 optics, this transceiver supports a maximum data transfer rate of 100000 Mbit/s and a maximum transfer distance of up to 100 m over appropriate multimode fiber. The module is compact and lightweight (0.04 kg) and complies with MSA standards, making it compatible with many common hardware platforms that accept QSFP28 form-factor optics.

Advantages

The module combines CWDM4 transmit and receive functions to enable reliable 100GBASE-CWDM4 transmission over LC duplex connections. Its QSFP28 form factor and MSA compliance simplify integration into switches, routers, storage systems and other network devices from manufacturers that support compatible optics. With a long MTBF (mean time between failures) specification, the transceiver offers stable long-term operation while keeping weight and space requirements low.

Suitable for

• High-speed aggregation links in data centers and enterprise networks
• Inter-switch connections and uplinks for routers and switches
• Storage area network (SAN) and high-throughput server connections
• Network hardware testing and measurement systems that require 100G CWDM4 optics

Key specifications

• Form factor: QSFP28 (compatible with QSFP28 slots)
• Data rate: up to 100000 Mbit/s (100 Gbit/s)
• Optical standard: 100GBASE-CWDM4
• Connector type: LC duplex
• Maximum transfer distance: up to 100 m over appropriate multimode fiber
• MTBF: approximately 3,000,000 hours
• Weight: 0.04 kg
• Colour: silver

How to use

Install the QSFP28 transceiver into a compatible QSFP28 slot on the network device until it clicks into place. Connect LC duplex fiber cables to the transceiver, ensuring correct transmit/receive alignment and clean fiber endfaces. Configure the host device to recognize or allow third-party optics if required by the platform, and verify link status and speed via the device management interface. Follow the device vendor's instructions for hot-plug handling and electrostatic discharge precautions.

Recommendations

For reliable operation, use LC duplex cables with appropriate fiber type and performance for CWDM4 transmission, keep connector endfaces clean, and confirm compatibility with the target hardware platform's optics policy. Monitor link integrity and temperature in environments with high port density to maintain long-term stability.
