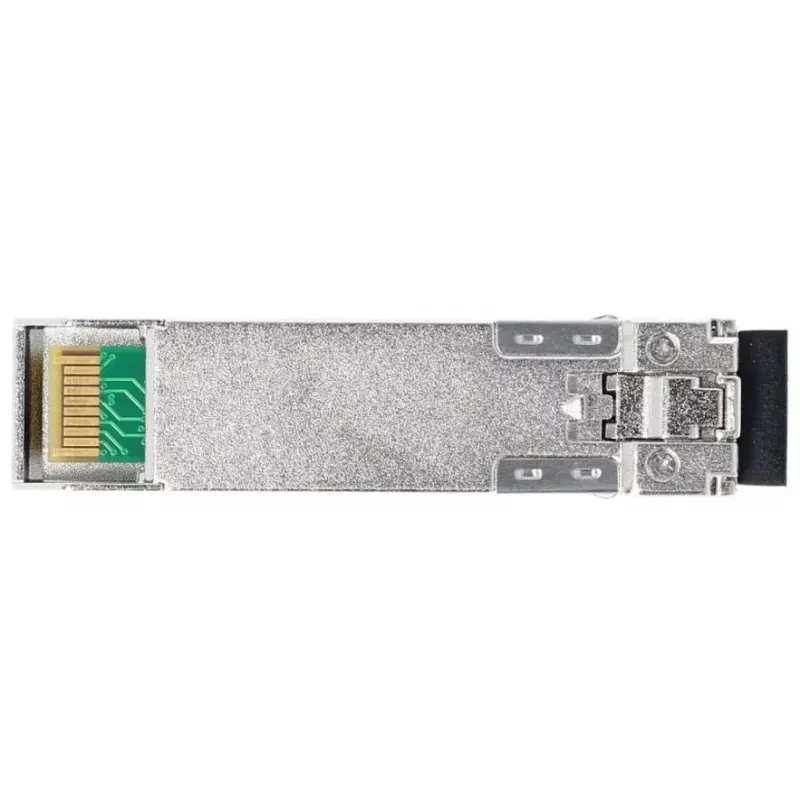

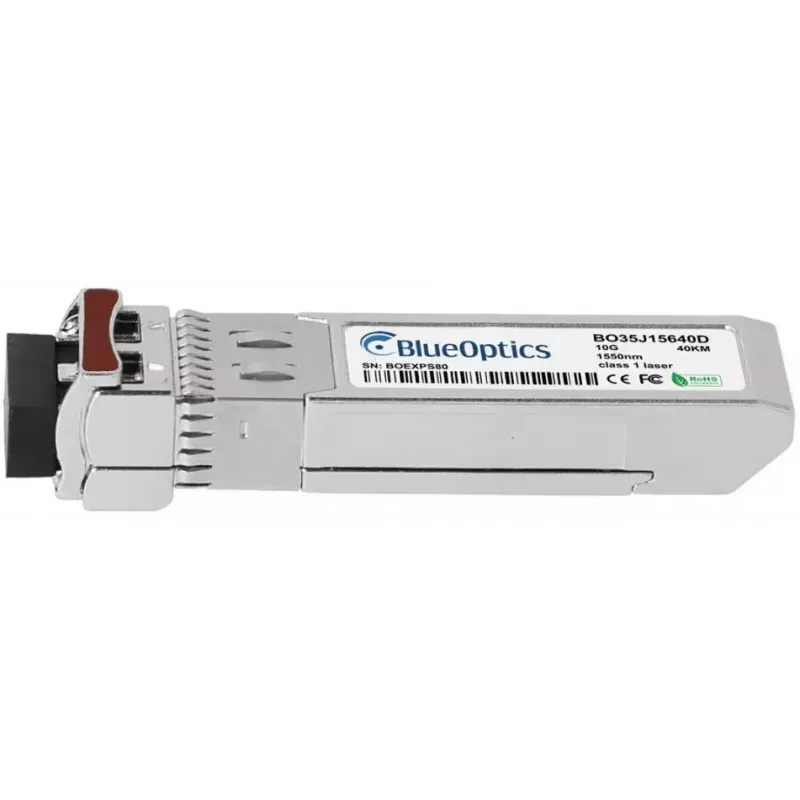

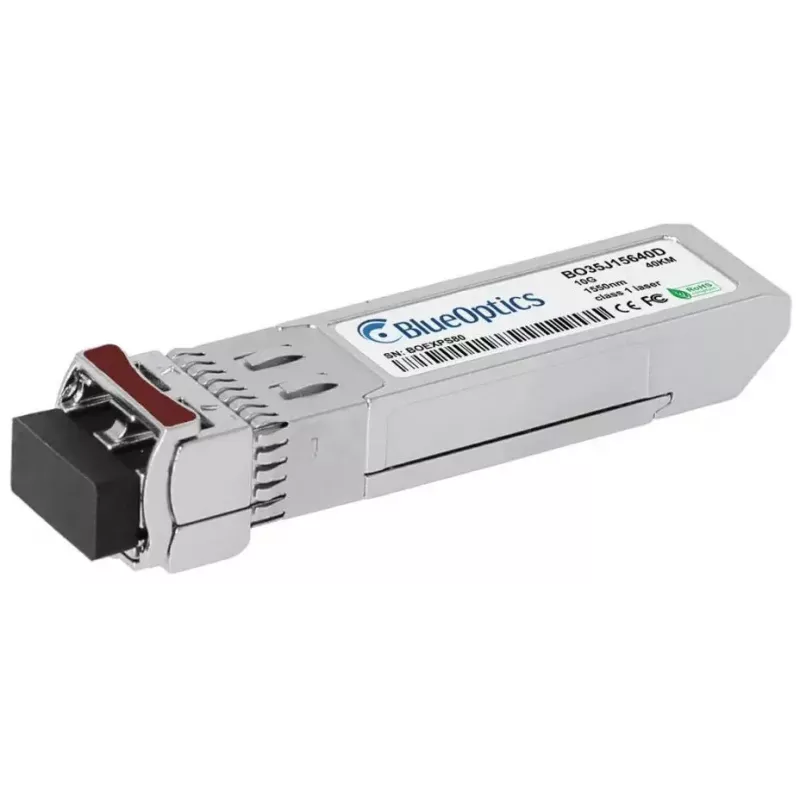

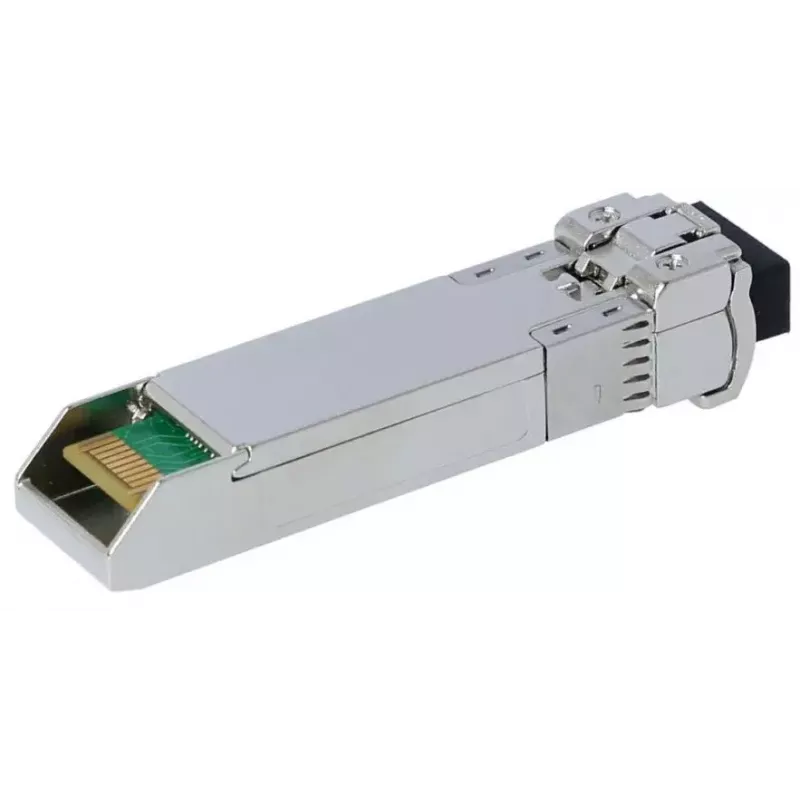

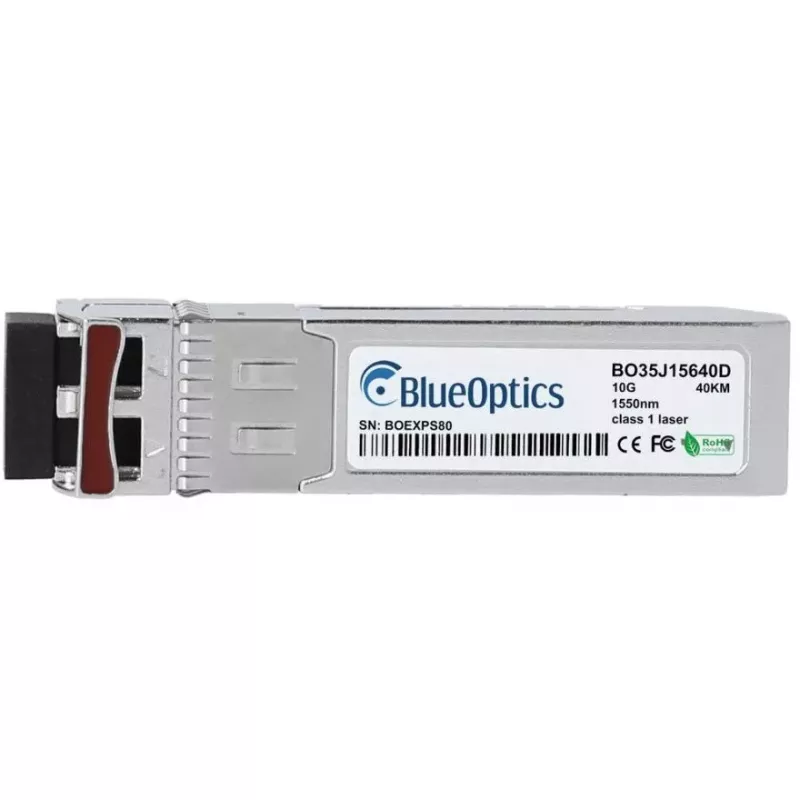

SFP transceiver BlueOptics FN-TRAN-SFP+ER 10000 Mbit/s 1550 nm

The BlueOptics FN-TRAN-SFP+ER 10000 Mbit/s 1550 nm is a compact fiber optic SFP+ transceiver module designed for long-distance high-speed data transmission in networking environments. Supporting a maximum data transfer rate of 10 Gbit/s and operating at a 1550 nm wavelength, this module fits standard SFP+ ports and is intended for use in switches, routers and transceivers that accept SFP+ modules. The module’s lightweight silver housing and industry-standard form factor allow easy installation and compatible integration into existing fiber links.

Advantages

This SFP+ transceiver provides a balance of high bandwidth and form-factor compatibility. It supports 10 Gbit/s throughput suitable for demanding links while using the 1550 nm wavelength for longer reach over single-mode fiber. The compact SFP+ interface simplifies hot-plug installation and replacement. The module’s low weight and standard silver metal housing contribute to stable mechanical fit and thermal behavior in rack-mounted and chassis systems.

Suitable for

• Long-distance single-mode fiber links requiring 10 Gbit/s bandwidth
• Upgrading switches and routers with SFP+ ports for higher throughput
• Data center uplinks and campus backbone connections
• Telecommunications and carrier Ethernet links over 1550 nm

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Wavelength: 1550 nm
• Form factor: SFP+ hot-pluggable transceiver
• Weight: 0.02 kg
• Colour: Silver metal housing

How to use

Install the BlueOptics FN-TRAN-SFP+ER into an available SFP+ port on a compatible switch, router or media converter while the host device is powered down or following the host’s hot-plug guidelines. Connect a single-mode fiber patch cable with the appropriate connectors (LC or as required by your equipment) to the transceiver’s optical interface. Verify link negotiation and traffic passing through the host device’s management interface. Follow any vendor-specific compatibility lists if the host device enforces firmware or vendor checks.

Recommendations

Use this transceiver with single-mode fiber and proper 1550 nm-compatible connectors and cabling. Ensure that activating long-reach links complies with the optical power budget and that transceiver and host device firmware are up to date for interoperability. Handle the optical ports with dust caps when not in use and observe electrostatic discharge precautions during installation.
