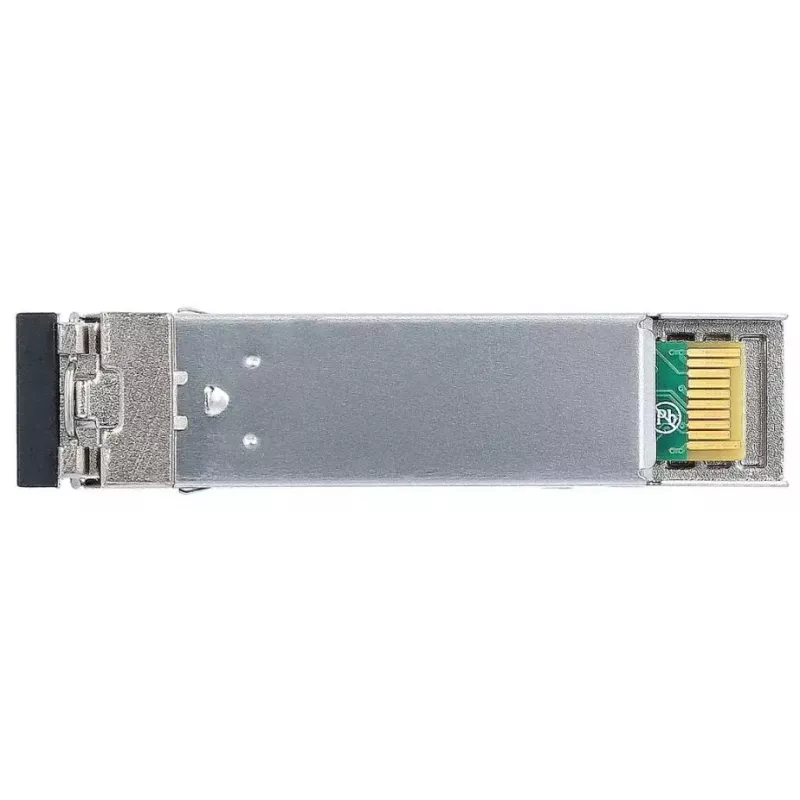

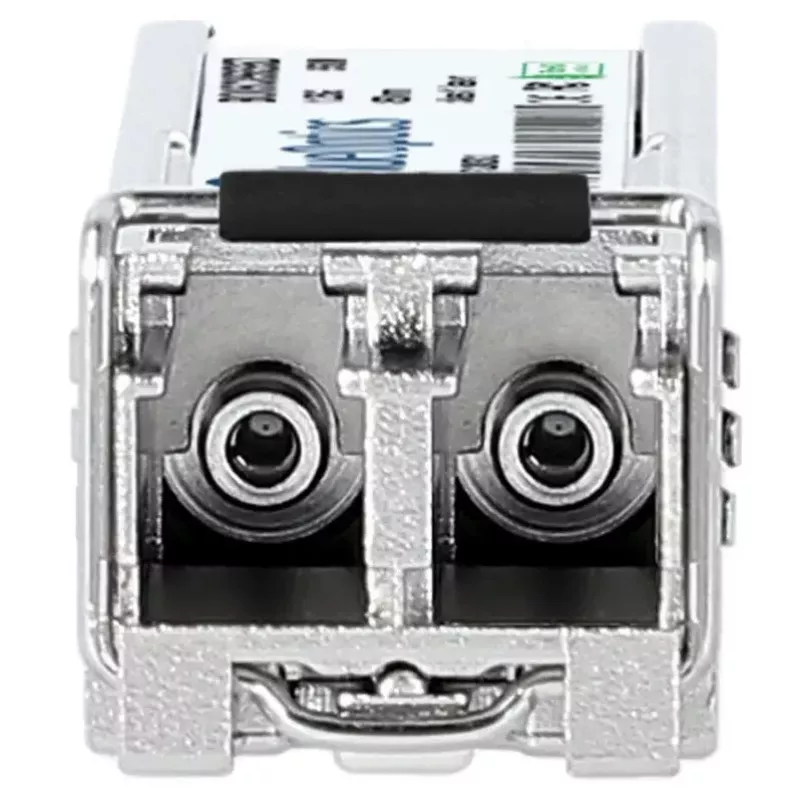

SFP transceiver BlueOptics SFP-3001-BO 1250 Mbit/s 850 nm

The BlueOptics SFP-3001-BO is a compact fiber optic SFP transceiver designed for 1.25 Gbit/s (1250 Mbit/s) data links using an 850 nm wavelength. Housed in metal and finished in silver, the module supports multimode fiber connections with an LC duplex connector and operates from a 3.3 V input. Weighing approximately 20 g, this SFP transceiver implements industry-standard mechanical and electrical interfaces for compatibility with networking equipment that supports SFP modules and 1000Base-SX applications.

Advantages

The BlueOptics SFP-3001-BO combines a standardized SFP form factor with a metal enclosure for mechanical stability and thermal performance. It supports 1.25 Gbit/s throughput and 850 nm optical signalling optimized for multimode fiber, enabling reliable short-range links. Built to MSA-compliant dimensions and interfaces, the module offers digital diagnostics capability where supported by host hardware and is suitable as a direct replacement in systems expecting a 1000Base-SX SFP form factor.

Suitable for

Key specifications

How to use

Insert the SFP-3001-BO into an SFP slot of a switch, router or other compatible device while the host device is powered off or following the host manufacturer's hot-swap procedure. Connect an LC duplex multimode patch cable between this transceiver and the corresponding transceiver at the remote end. Ensure the host device is configured for 1000Base-SX operation and verify link status via the host interface. If available and supported by the host, enable and read digital diagnostics (DDM/DOM) to monitor supply voltage, laser bias current, optical output/input power and temperature for troubleshooting and preventive maintenance.

Recommendations

Use high-quality multimode patch cables and observe proper fiber handling practices to maintain link performance. Confirm that the host hardware supports DDM/DOM if diagnostic monitoring is required. For optimal results, match the transceiver's 850 nm multimode specification with compatible fiber type and transceiver at the far end.
