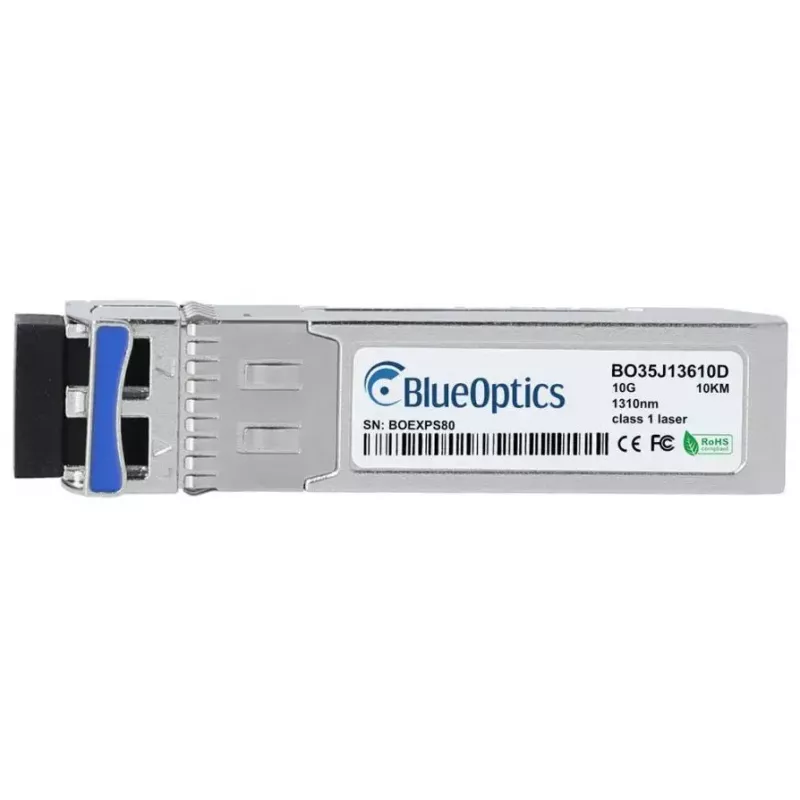

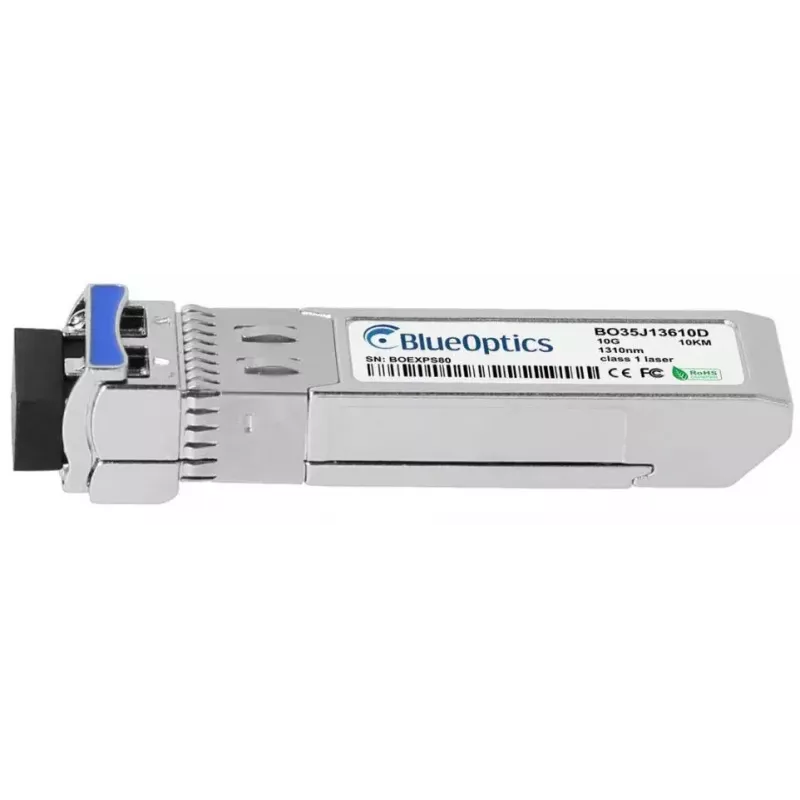

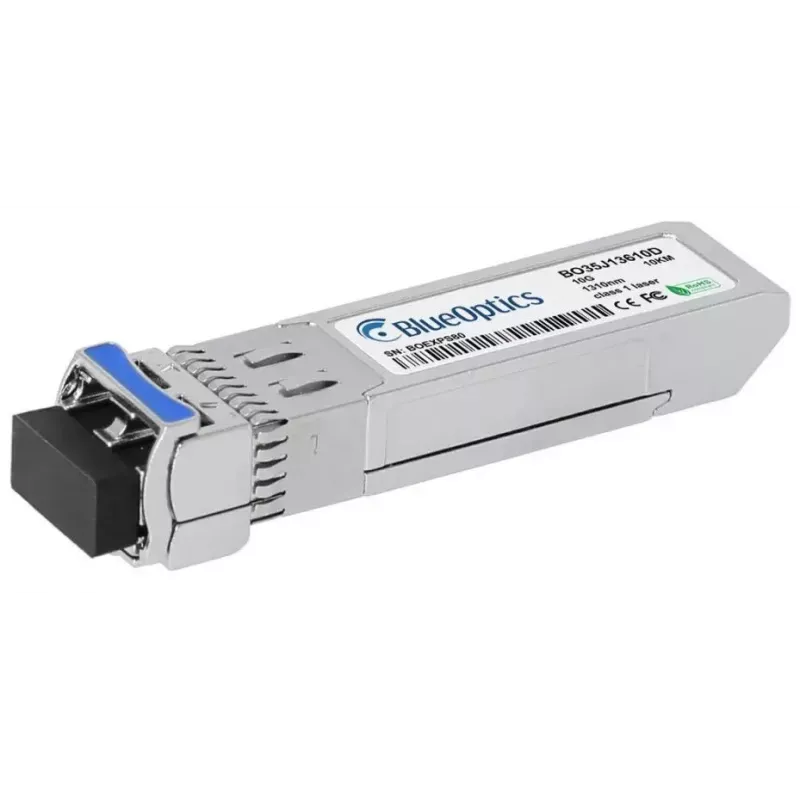

SFP+ transceiver BlueOptics SFPP-10G-LR-OTN-BO 10000 Mbit/s 1310 nm

The BlueOptics SFPP-10G-LR-OTN-BO is an SFP+ fiber optic transceiver module that supports 10 Gbit/s data transfer over single-mode fiber at a 1310 nm wavelength. Designed for compact installation with a 3.3 V supply and a light 2 g weight, this module follows MSA standards and uses an LC duplex connector to transmit and receive optical signals simultaneously. The transceiver is compatible with hardware platforms that support 10GBASE-LR SFP+ modules and is suitable for Ethernet, Fibre Channel over Ethernet (FCoE) and SDH/SONET applications over extended distances.

Advantages

The module offers high-speed 10 Gbit/s performance with single-mode 1310 nm optics and a standard SFP+ interface for broad interoperability. Its compact silver-colored housing and low weight simplify hot-plug installation in dense switch and router environments. Built and tested to MSA guidelines, the transceiver provides predictable behaviour in systems that require 10GBASE-LR functionality and supports digital diagnostics for remote monitoring of key optical and electrical parameters.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on a switch, router or other networking device while the device is powered according to the manufacturer's guidance for hot-plug operations. Connect single-mode LC duplex fiber patch cords to the transceiver's TX and RX ports, ensuring correct polarity and secure connections. Verify link status in the host device and, if available, enable and read digital diagnostics (DDM/DOM) to monitor supply voltage, laser bias current, transmit output power, receive input power and temperature. Use appropriate fiber adapters or patch panels where required to maintain cable management and signal integrity.

Recommendations

Use this transceiver in systems that explicitly support 10GBASE-LR SFP+ modules and confirm DDM compatibility for remote monitoring. Select quality single-mode fiber patch cords and maintain correct connector cleanliness to ensure reliable optical links. Follow vendor guidance for optical power budgets and reach; perform link testing after installation and consider requesting a test sample to validate compatibility in your specific hardware environment.
