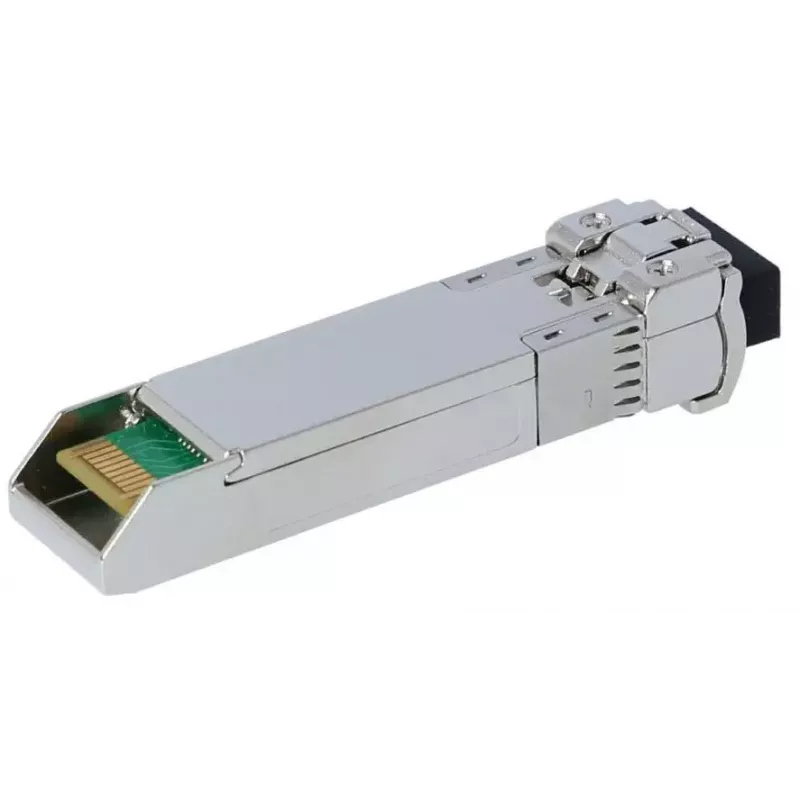

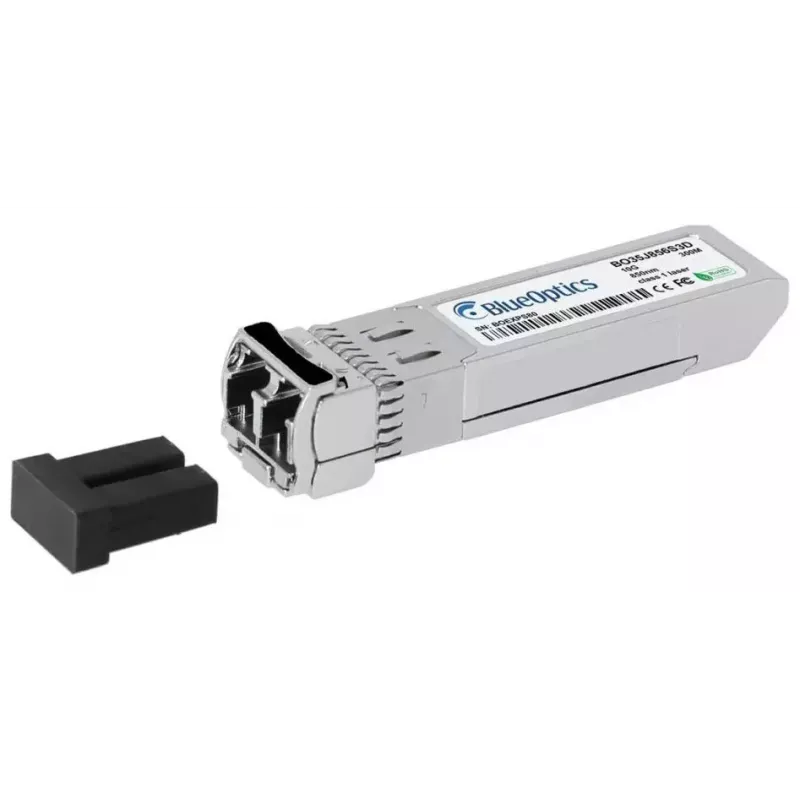

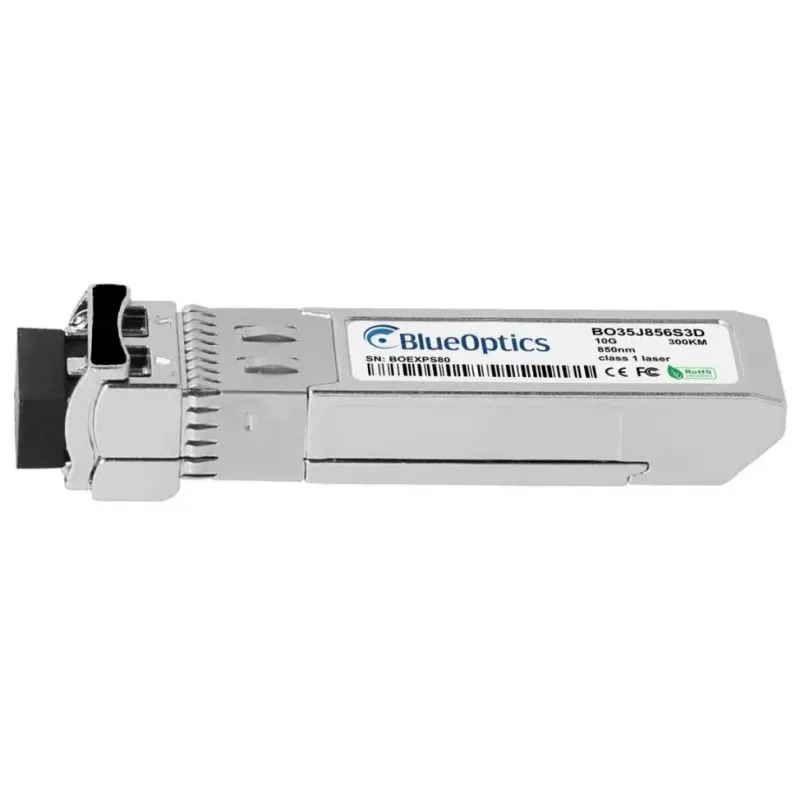

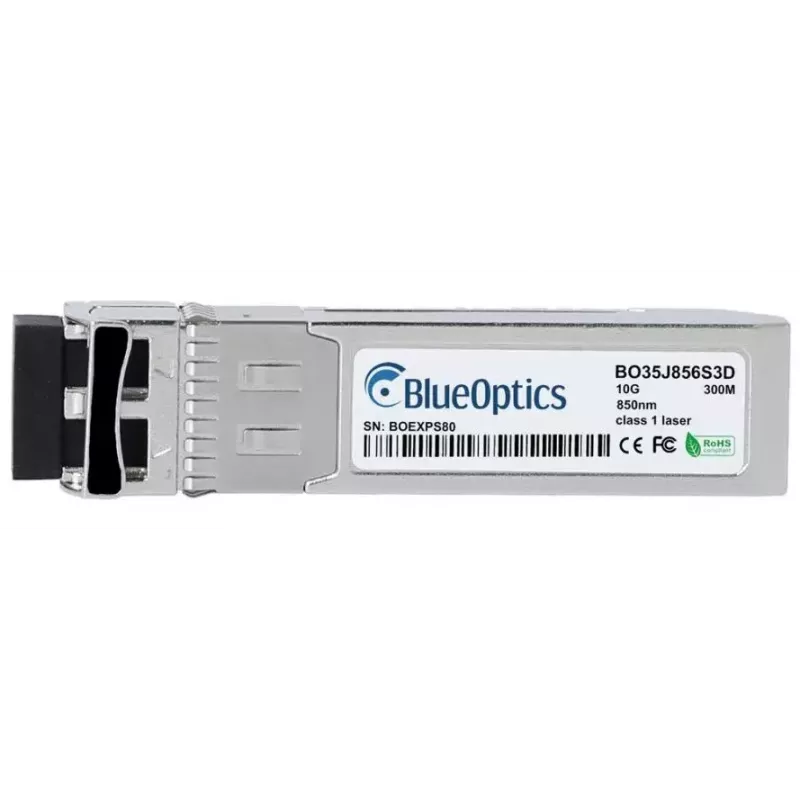

SFP+ transceiver modul BlueOptics 00NU536-BO 10000 Mbit/s 850 nm

The BlueOptics 00NU536-BO SFP+ transceiver module is designed for high-speed multimode fiber networks and supports data rates up to 10,000 Mbit/s. Operating at an 850 nm wavelength and featuring an LC duplex connector, this silver-coloured SFP+ module follows MSA mechanical standards and is RoHS compliant. Weighing approximately 20 g, it fits into SFP+ ports on network switches, routers and storage systems that accept standard 10GBASE-SR transceivers.

Advantages

This SFP+ transceiver delivers 10GBASE-SR optical links over multimode fiber, enabling simultaneous transmit and receive channels via the LC duplex interface. The module is built to MSA specifications for mechanical compatibility and is tested for interoperability with major vendor platforms. Its compact SFP+ form factor and low weight simplify installation and replacement. RoHS compliance ensures adherence to environmental standards.

Suitable for

• 10 Gigabit Ethernet connections over multimode fiber
• Short-reach data center links and server uplinks
• Switch-to-switch and switch-to-storage connections within the same building or campus
• Applications that require LC duplex 850 nm 10GBASE-SR transceivers

Key specifications

• Interface type: SFP+ (LC duplex)
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Wavelength: 850 nm
• Supported fiber type: multimode fiber (MMF)
• Typical reach: up to several hundred meters depending on MMF grade and link design
• Product colour: Silver
• Weight: approx. 0.02 kg
• Standards compliance: MSA mechanical compatibility, RoHS

How to use

Power down or follow hot-swap procedures supported by your hardware, then insert the BlueOptics SFP+ module into an available SFP+ slot until it seats firmly. Connect LC duplex multimode fiber patch cords to the transmit and receive ports, ensuring correct orientation and polarity. Verify link status through your switch or server management interface and configure the port for 10G operation if required. For diagnostics, enable DDM/DOM support in compatible hardware to monitor real-time parameters such as optical power and temperature.

Recommendations

Use OM3/OM4 multimode fiber for optimal reach and performance at 10 Gbit/s, keep connectors and fiber endfaces clean, and confirm that the host device supports third-party SFP+ modules and DDM/DOM if you require real-time diagnostics.
