SFP transceiver modul BlueOptics 100-01670-BO 1250 Mbit/s optické vlákno

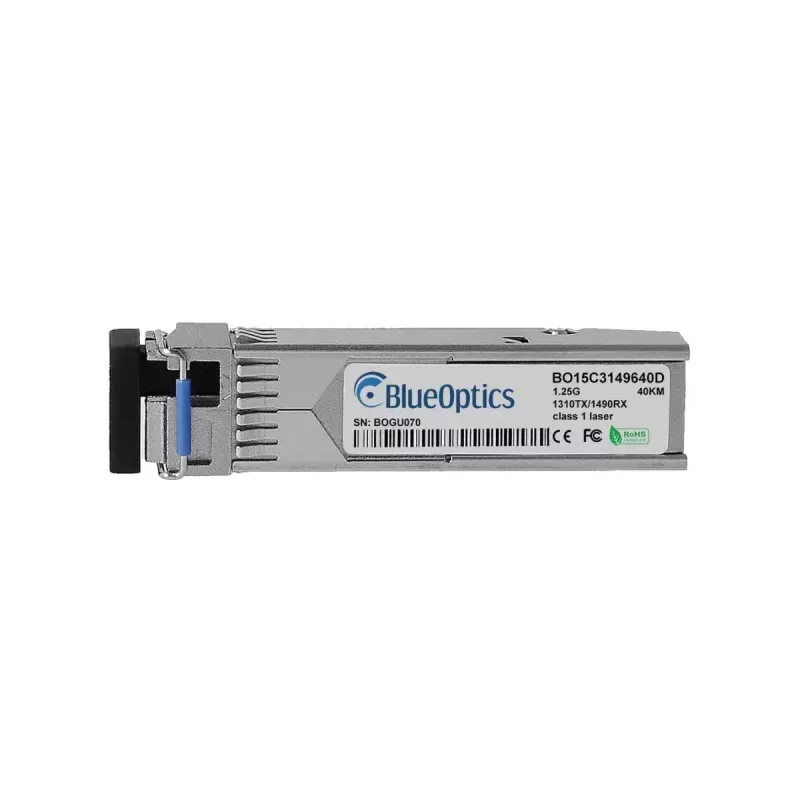

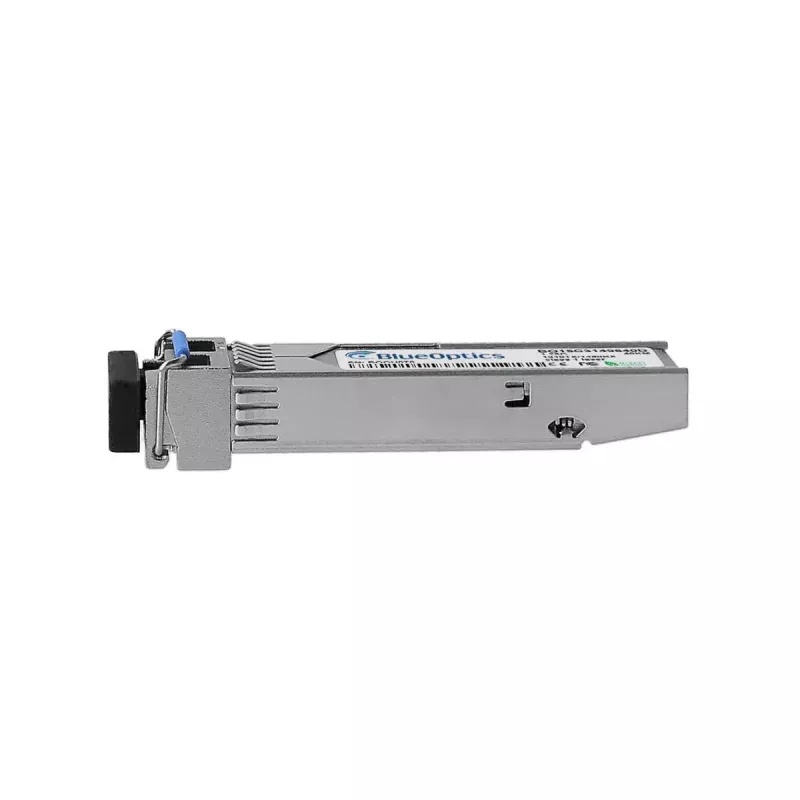

The BlueOptics 100-01670-BO is a fiber optic SFP transceiver module designed for use in compatible network equipment. It supports a maximum data transfer rate of 1250 Mbit/s and comes in an SFP form factor with a silver housing. The module is lightweight at 20 g and offers long-term operation reliability with a stated MTBF of 1,000,000 hours. Compliance with CE, FCC and RoHS standards ensures it meets common regulatory and safety requirements for network installations.

Advantages

The compact SFP form factor allows easy hot-plug installation into switches, routers or media converters that support SFP slots. With a maximum data rate of 1250 Mbit/s, the transceiver is suitable for standard fiber links where gigabit-class serial links are needed. Its low weight and compact dimensions reduce mechanical stress on equipment ports, while the long MTBF indicates a design aimed at stable, continuous operation. CE, FCC and RoHS compliance simplifies integration into regulated environments.

Suitable for

• Connecting fiber links between switches and routers with SFP-compatible ports
• Replacing or upgrading existing SFP transceivers in network gear
• Use in media converters and optical network modules for short to medium distance fiber connections

Key specifications

• Form factor: SFP
• Maximum data transfer rate: 1250 Mbit/s
• Material/finish: silver-coloured housing
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours
• Regulatory compliance: CE, FCC, RoHS

How to use

Ensure the host device supports SFP fiber transceivers and the required data rate. With the device powered appropriately according to the host equipment manual, insert the BlueOptics SFP transceiver into an empty SFP slot until it seats and latches. Connect the compatible fiber optic cable to the transceiver connector, observing correct fiber type and polarity. Monitor link status on the host device and configure network settings if necessary. For removal, follow hot-swap procedures stated by the host manufacturer to avoid data disruption.

Recommendations

Use the transceiver in compatible SFP slots only and match fiber type and connector standard to ensure link integrity. Store spare modules in anti-static packaging and avoid exposing the optical interface to dust or physical damage when not connected.
