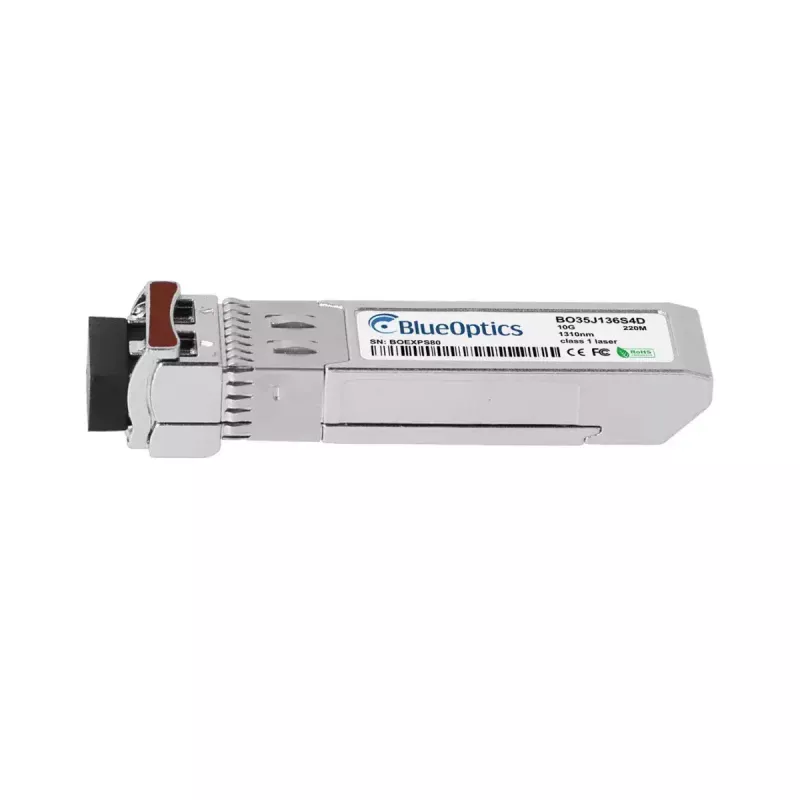

SFP transceiver modul BlueOptics 10G-SFP-LRM-BO 10000 Mbit/s optický kábel

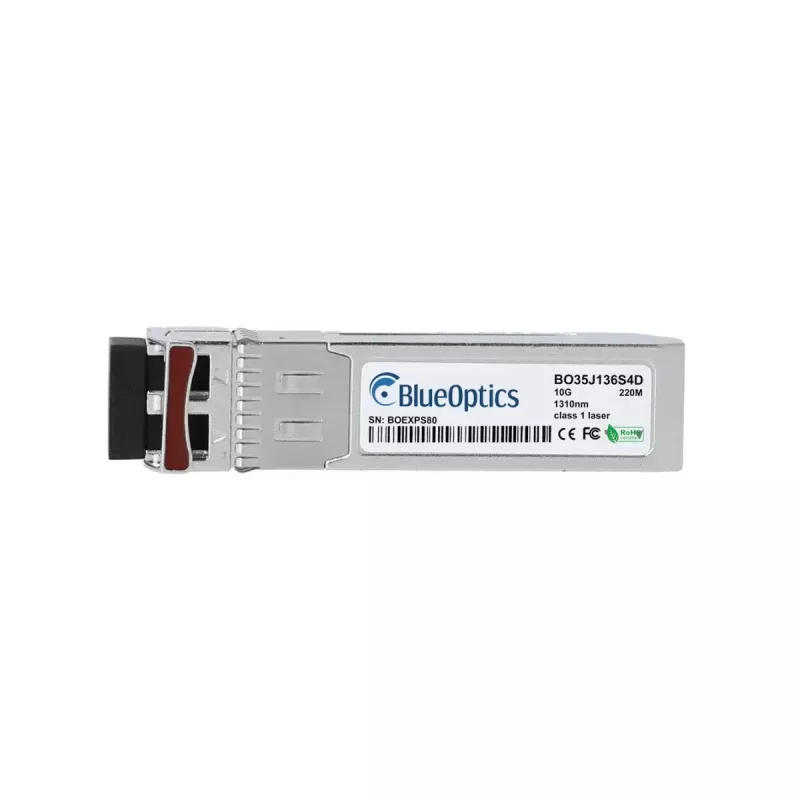

The BlueOptics 10G-SFP-LRM-BO is a 10 Gigabit SFP+ fiber optic transceiver module designed for short-reach multimode connections. With a maximum data transfer rate of 10,000 Mbit/s and support for LC fiber connectors, this compact silver module fits standard SFP+ slots to enable high-speed Ethernet links up to 220 metres over appropriate multimode fiber. Its small form factor and 20 g weight make it suitable for dense networking equipment where space and port density matter.

Advantages

The module delivers 10 Gigabit Ethernet performance in an SFP+ form factor, allowing interoperable upgrades in equipment with SFP+ ports. Low weight and standardized LC connectivity simplify installation and replacement. A high MTBF rating provides a predictable operational lifetime for stable network deployments. The device is built to support short to medium multimode fiber runs while maintaining industry-standard electrical and optical interfaces.

Suitable for

• Short-reach 10 Gigabit Ethernet links in data centres and enterprise aggregation layers
• Server-to-switch and switch-to-switch connections over multimode fiber up to 220 m
• High-density switch ports where SFP+ modules are required

Key specifications

• Maximum data transfer rate: 10000 Mbit/s
• Maximum transfer distance: 220 m over multimode fiber
• Ethernet interface type: 10 Gigabit Ethernet (SFP+ form factor)
• Fiber optic connector: LC
• Product colour: Silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Insert the transceiver into a compatible SFP+ port until it seats firmly, taking care to avoid static discharge and to align the module correctly. Connect LC-terminated multimode fiber patch cords to the module's LC duplex connector. Verify link LEDs on both ends and configure the switch or host interface for 10 Gigabit operation as required by your network equipment. For removal, press the module's release mechanism and gently extract it while protecting the fiber ends and ports from contamination.

Recommendations

Use the module with compatible SFP+ ports and multimode fiber certified for 10 Gigabit links. Clean LC connectors before mating, avoid tight bends in fiber runs, and select appropriate transceivers and cables for the intended distance (up to 220 m). Follow equipment vendor guidance for firmware, interoperability lists, and thermal limits to ensure stable operation.
