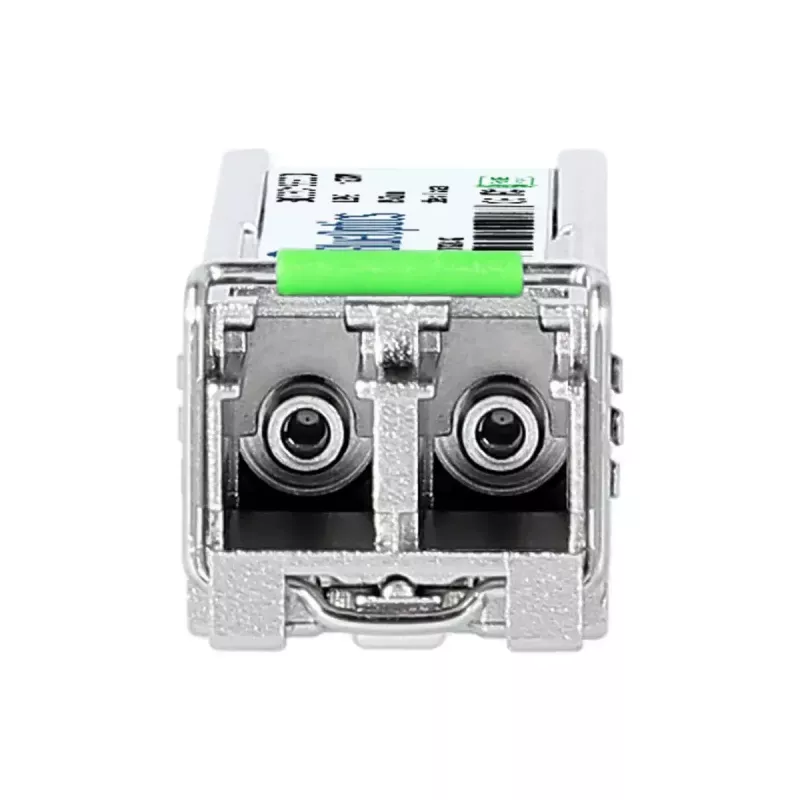

SFP transceiver modul BlueOptics 1KGT038920R0001-BO 1250 Mbit/s

The BlueOptics 1KGT038920R0001-BO SFP transceiver module is a compact fiber optic interface designed for 1.25 Gigabit Ethernet links with a maximum data transfer rate of 1250 Mbit/s. Constructed in a silver metal housing and weighing approximately 20 g, this SFP module supports long-distance optical transmission up to 160,000 m and offers an MTBF of 1,000,000 hours for sustained operation in fiber network environments. The module uses an LC fiber optic connector and fits standard SFP ports in switches, routers and media converters.

Advantages

The module provides a standardized small form-factor pluggable solution that enables fiber connectivity without modifying existing equipment. Its lightweight, metal casing and common LC connector ensure straightforward installation and physical compatibility. With support for long-range transmission and a high MTBF rating, the transceiver is suitable for deployments where long uptimes and reliable optical links are required.

Suitable for

• Connecting network switches and routers over single-mode fiber for long-distance links
• Replacing or upgrading SFP ports in media converters and optical line equipment
• Data center uplinks and campus backbone connections requiring 1.25 Gigabit Ethernet
• Network infrastructure projects demanding compact, hot-pluggable optical modules

Key specifications

• Maximum data transfer rate: 1250 Mbit/s
• Maximum transfer distance: 160,000 m
• Ethernet interface type: 1.25 Gigabit Ethernet
• Fiber optic connector: LC
• Product colour: Silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Power down the device or follow hot-swap procedures recommended by the equipment manufacturer, then insert the BlueOptics SFP module into an empty SFP port until it seats firmly. Connect an LC-terminated fiber patch cable to the module, observing correct transmit/receive orientation. After insertion, verify link status and configure interface settings on the host device as required for 1.25 Gigabit Ethernet operation. For removal, disable the interface if recommended and gently extract the module by pulling on the ejector mechanism.

Recommendations

Use single-mode fiber and appropriate LC patch cords rated for the distances required. Ensure dust caps are used when the module is not connected to protect optical surfaces. Follow ESD precautions during handling and consult host device documentation for any interoperability or firmware considerations.
