SFP transceiver modul BlueOptics 2682500000-BO 1250 Mbit/s

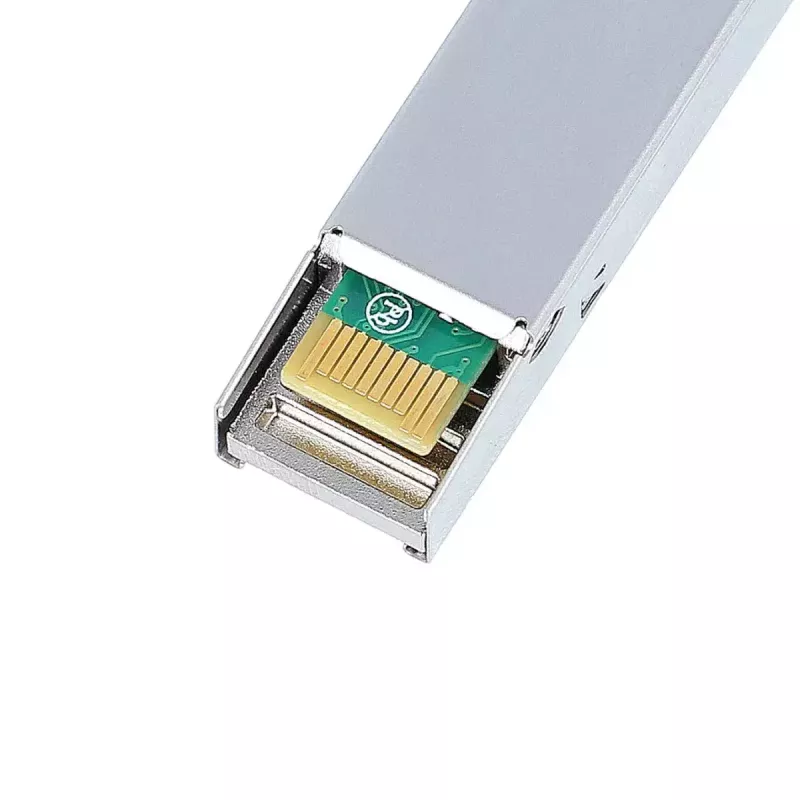

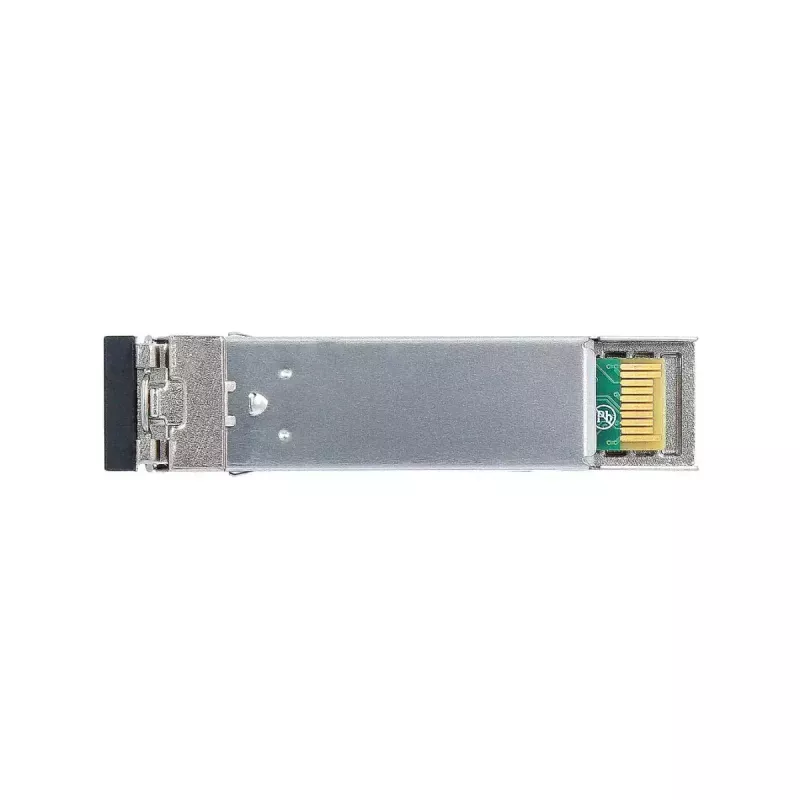

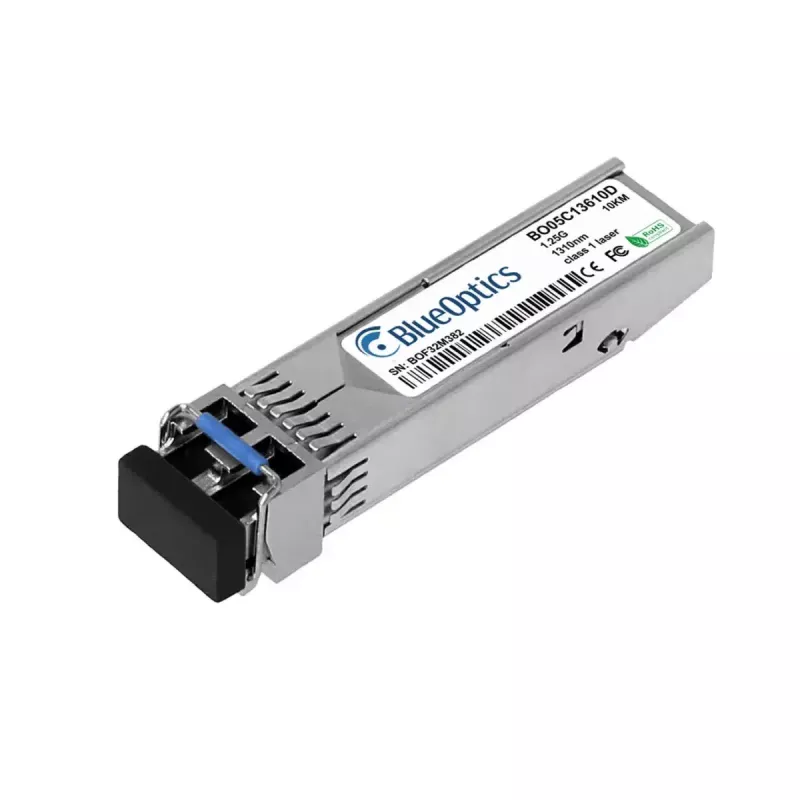

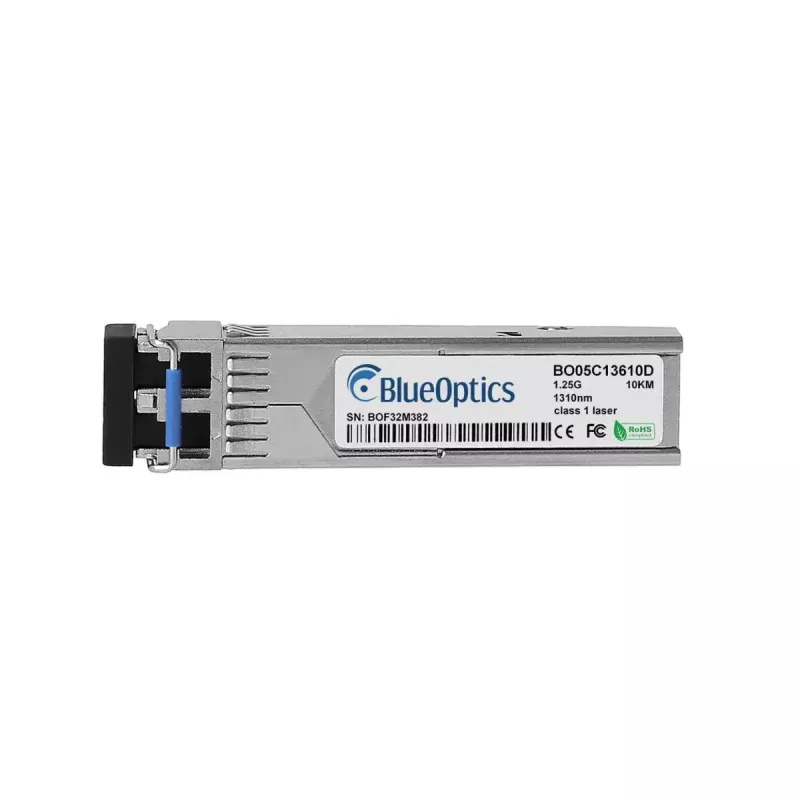

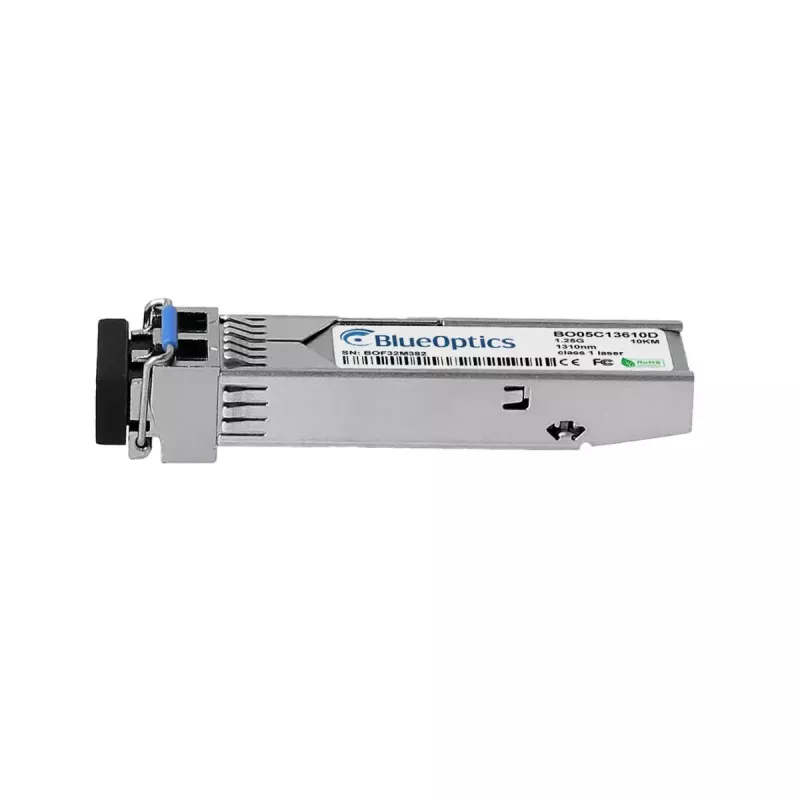

The BlueOptics 2682500000-BO SFP transceiver module is a small-form-factor, fiber-optic interface designed for network equipment requiring 1.25 Gigabit Ethernet connectivity. It supports a maximum data transfer rate of 1250 Mbit/s and is intended for single-mode fiber links up to 10,000 m. The module comes in a silver housing, weighs approximately 20 g and follows the SFP form factor for hot-pluggable installation in compatible switches, routers and media converters.

Advantages

This SFP transceiver offers a compact, industry-standard SFP form factor that simplifies upgrades and modular deployment in rack and chassis systems. With a rated MTBF of 1,000,000 hours it provides long operational reliability for continuous network use. The LC fiber connector ensures a secure duplex connection while the 1.25 Gigabit Ethernet interface supports common fiber-based Ethernet applications. Its lightweight silver housing makes handling and installation straightforward.

Suitable for

• Extending single-mode fiber links up to 10 km
• Hot-pluggable upgrades to switches, routers and media converters
• Replacing or standardizing SFP ports in enterprise and ISP equipment
• Fiber-based Ethernet connections requiring LC connectors

Key specifications

• Maximum data transfer rate: 1250 Mbit/s
• Maximum transfer distance: 10000 m (single-mode fiber)
• Ethernet interface type: 1.25 Gigabit Ethernet

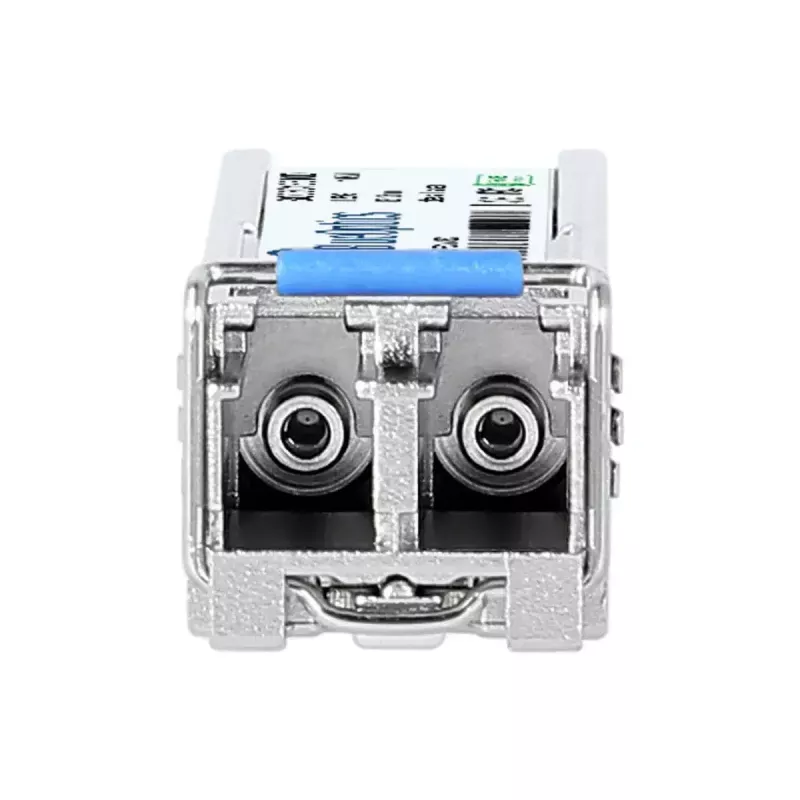

• Fiber optic connector: LC
• Form factor: SFP (small form-factor pluggable)
• Product colour: Silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

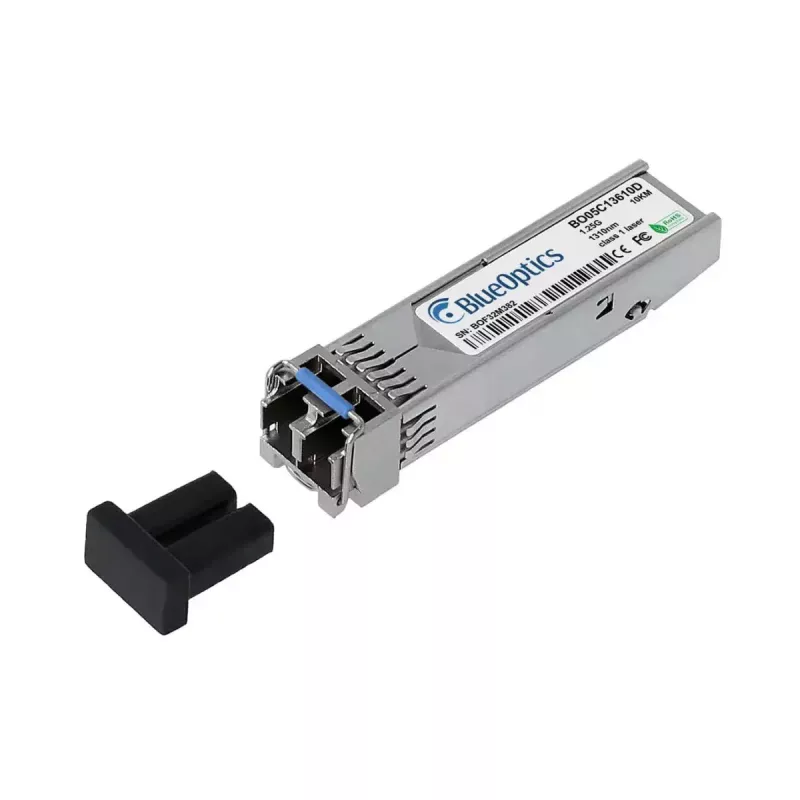

Insert the BlueOptics SFP transceiver into a compatible SFP slot on your network device while the device is powered down or follow the equipment vendor's hot-plug procedures if hot-swapping is supported. Connect LC-terminated fiber patch cables to the transceiver ensuring proper transmit/receive orientation. Configure the network device for the intended 1.25 Gigabit Ethernet link parameters and verify the optical link status through the device interface. Observe standard electrostatic discharge (ESD) precautions during handling and keep dust caps on the connector when the module is not in use.

Recommendations

Use single-mode fiber rated for the required distance and verify connector cleanliness before installation. Match transceiver specifications with the partner device and follow vendor guidelines for compatibility and firmware updates to ensure stable operation.
