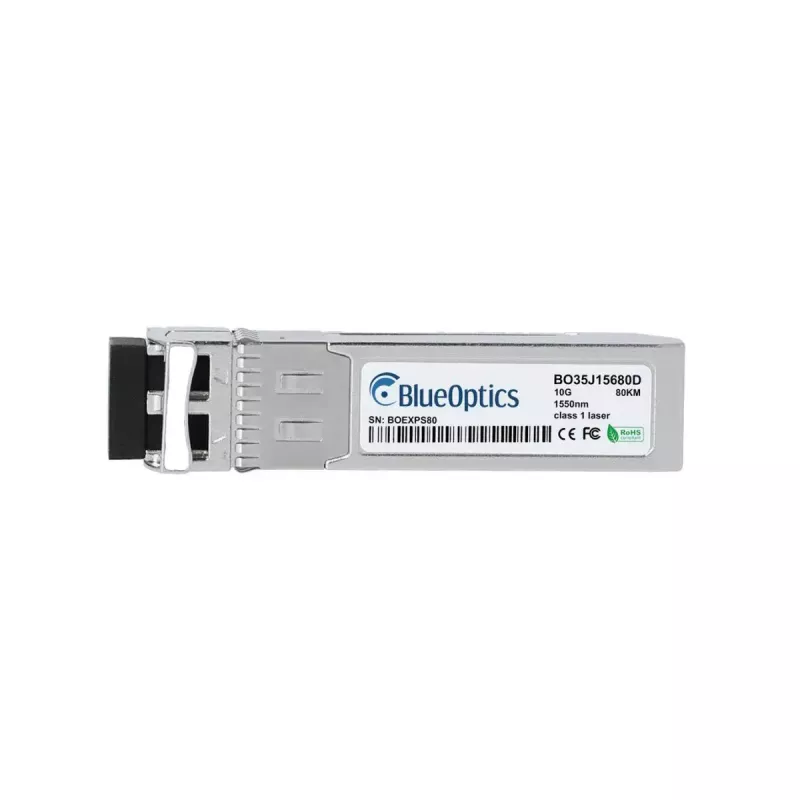

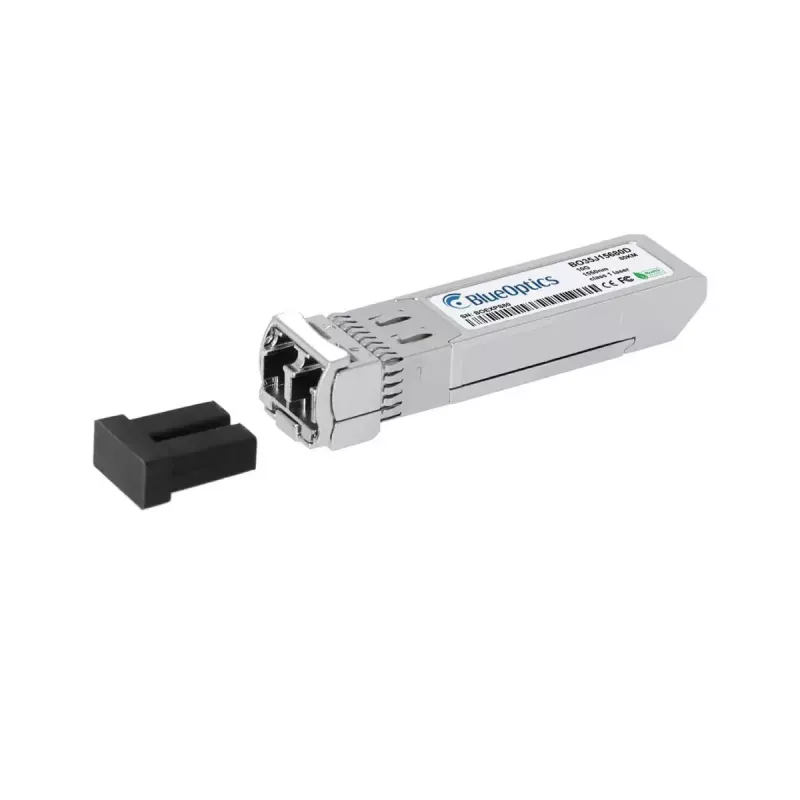

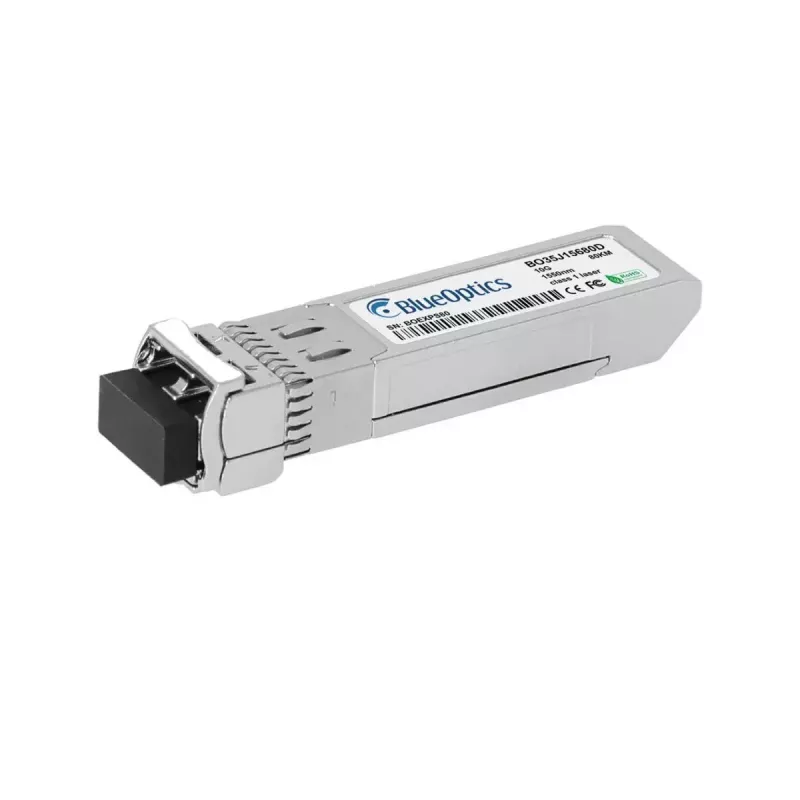

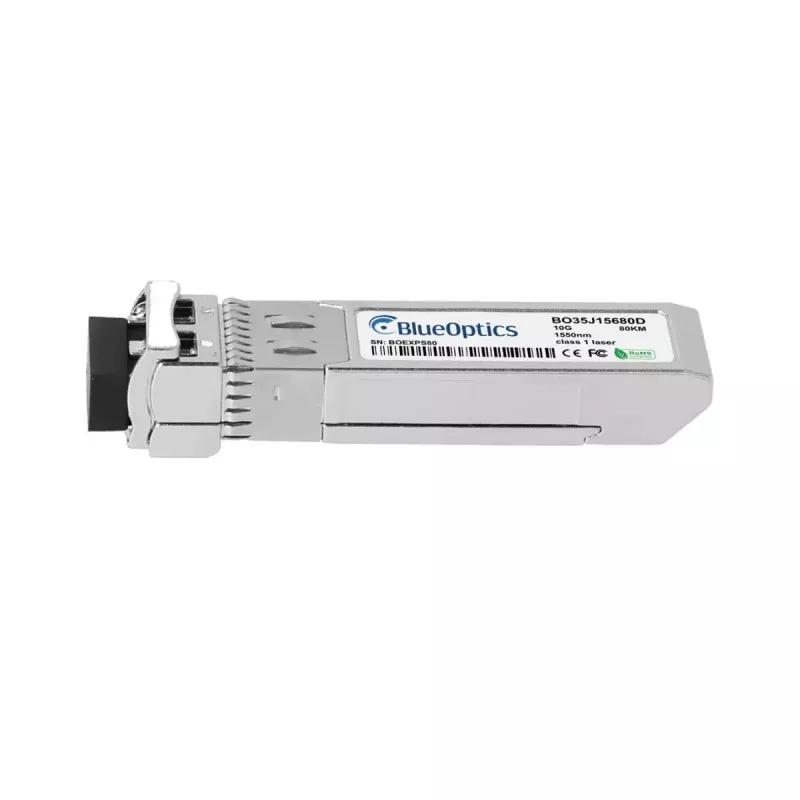

SFP transceiver modul BlueOptics 3FE65832AA-BO optické vlákno SFP+ 80000 m

The BlueOptics 3FE65832AA-BO is a fiber optic SFP+ transceiver module designed for high-speed single-mode fiber links up to 80,000 m. It implements the 10GBASE-ZR transmission class with LC duplex connectivity and a 1550 nm transmitter and receiver, complying with common MSA form-factor and interface expectations. The module comes in an aluminium housing, weighs approximately 20 g and is intended for use in network devices that accept SFP+ modules supporting the same transmission standard.

Advantages

The module supports 10 Gbps line rates suitable for long-haul optical links and provides immunity to electromagnetic interference inherent to fiber connections. Built to MSA dimensions and with LC duplex connectors, it is interoperable with equipment families that accept standard SFP+ 10GBASE-ZR optics. The aluminium housing offers mechanical durability while the compact, lightweight design simplifies installation and replacement in switches, routers and storage systems.

Suitable for

• Long-distance 10 Gbps Ethernet links over single-mode fiber
• Interconnection between switches, routers and transport equipment in carrier or enterprise backbones
• Fibre Channel over Ethernet or SDH/SONET links requiring 10GBASE-ZR optics
• Environments where LC duplex connectors and MSA-compliant SFP+ modules are used

Key specifications

• Interface type: SFP+
• Transmission rate: up to 10 Gbps (10GBASE-ZR)
• Optical wavelength: 1550 nm (Tx and Rx)
• Maximum link distance: up to 80,000 m on appropriate single-mode fiber
• Connector type: LC duplex
• Housing material and colour: aluminium / aluminium colour
• Weight: approx. 0.02 kg
• Digital diagnostics (DDM/DOM) support: available when supported by host hardware

How to use

Install the BlueOptics SFP+ module into an SFP+ slot of a compatible switch, router or storage device following the host vendor’s instructions for hot-plug modules. Connect LC duplex single-mode fiber patch cords to the module’s transmit and receive ports, ensuring correct polarity. Verify link status and speed in the host device management interface; enable DDM/DOM monitoring if the host supports it to read supply voltage, laser bias current, transmit power, receive power and temperature in real time. Follow standard safety procedures for handling fiber optics and laser-emitting devices.

Recommendations

Use single-mode fiber rated for long-haul transmission and high-quality LC duplex patch cords to achieve the stated 80 km reach. Confirm that the host hardware explicitly supports 10GBASE-ZR SFP+ optics and DDM/DOM if diagnostic monitoring is required. For reliable operation, perform end-to-end verification and, where possible, request a test sample to validate interoperability with the target platform.
