SFP transceiver modul BlueOptics 3HE00868CB-BO 1250 Mbit/s optické vlákno

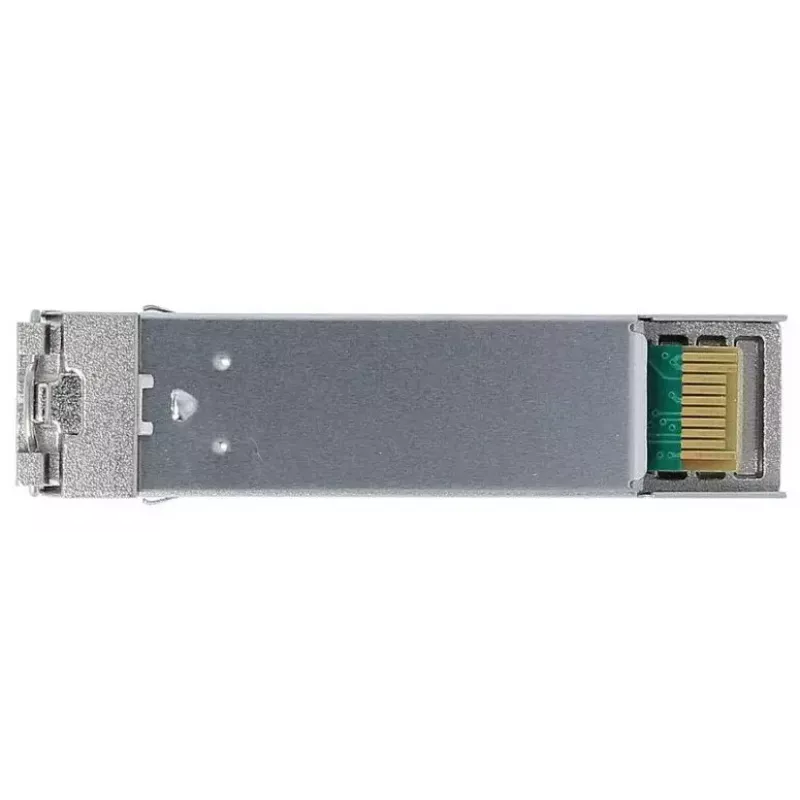

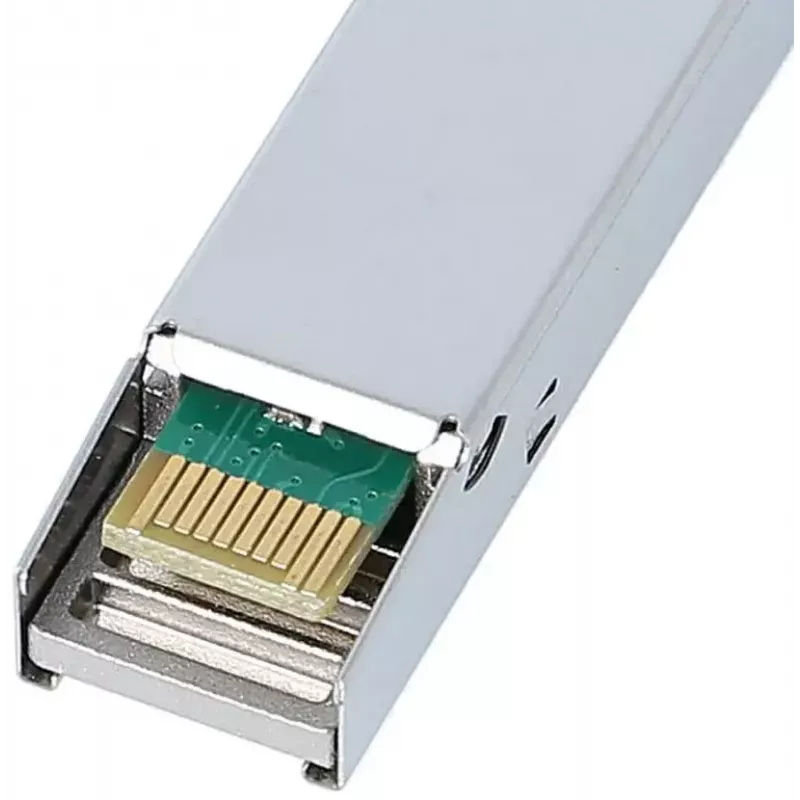

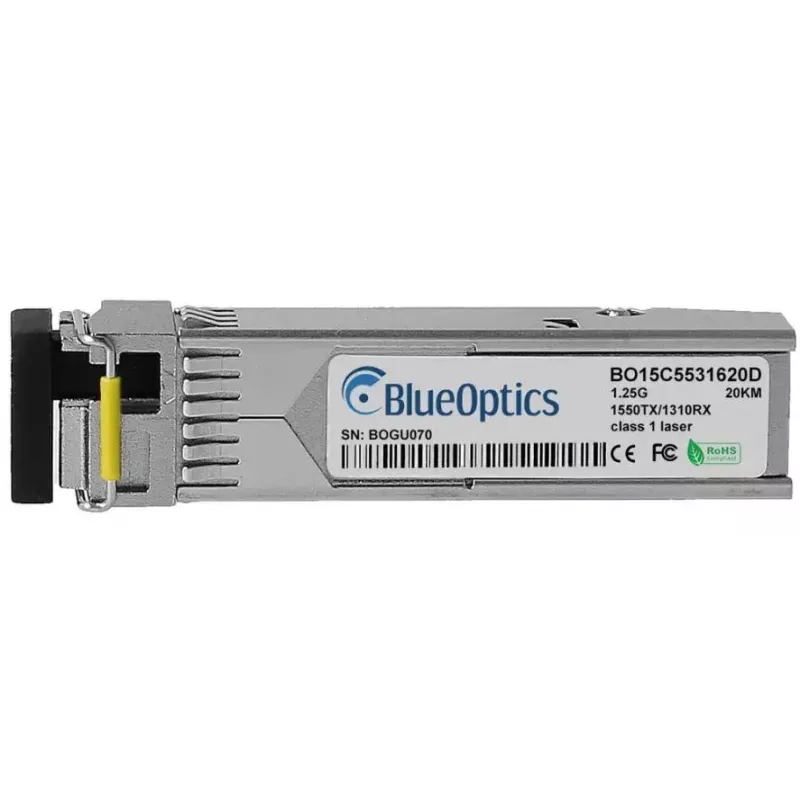

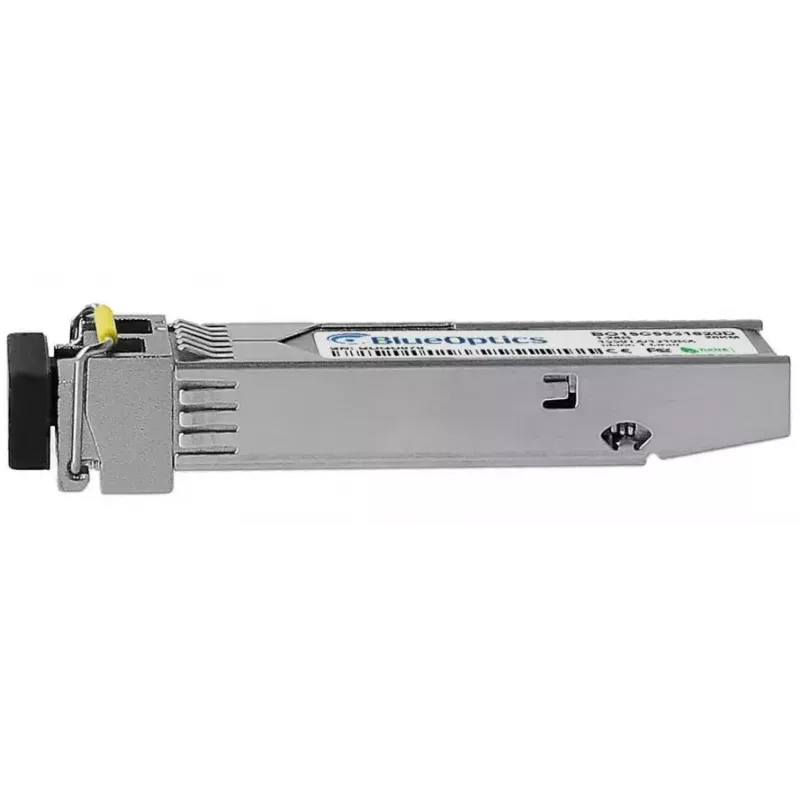

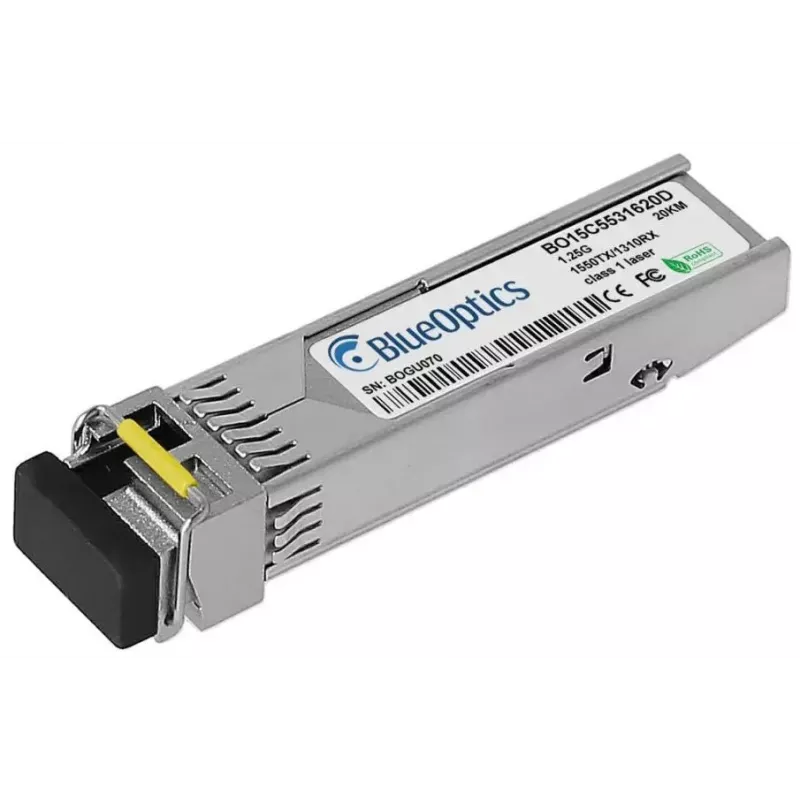

The BlueOptics 3HE00868CB-BO SFP transceiver module is a compact fiber optic interface designed for single-mode links with a maximum data rate of 1250 Mbit/s. Operating at 3.3 V input voltage, the module uses an LC (UPC) simplex connector and supports optical transmission distances up to 20,000 m. Its slim metal housing (13.9 mm × 58.4 mm × 8.5 mm) and lightweight construction (0.02 kg) make it suitable for deployment in network switches, routers and media converter systems that accept MSA-compliant SFP modules and Alcatel Nokia–compatible transceivers.

Advantages

The transceiver offers a standard-compliant form factor and connector type that facilitates interoperability with equipment designed for SFP modules. Its single-mode fiber support and 1250 Mbit/s data rate enable long-reach optical links up to 20 km, while the small physical dimensions and low weight simplify installation in dense rack environments. The module's silver metal housing provides mechanical robustness and thermal stability appropriate for continuous network operation.

Suitable for

• Long-reach single-mode Ethernet links up to 20 km
• Upgrading or replacing Alcatel Nokia compatible SFP ports
• Integration in switches, routers, storage systems and media converters with SFP slots
• Fiber patch panel or point-to-point connections using LC (UPC) connectors

Key specifications

• Maximum data transfer rate: 1250 Mbit/s
• Maximum transfer distance: 20,000 m (single-mode fiber)

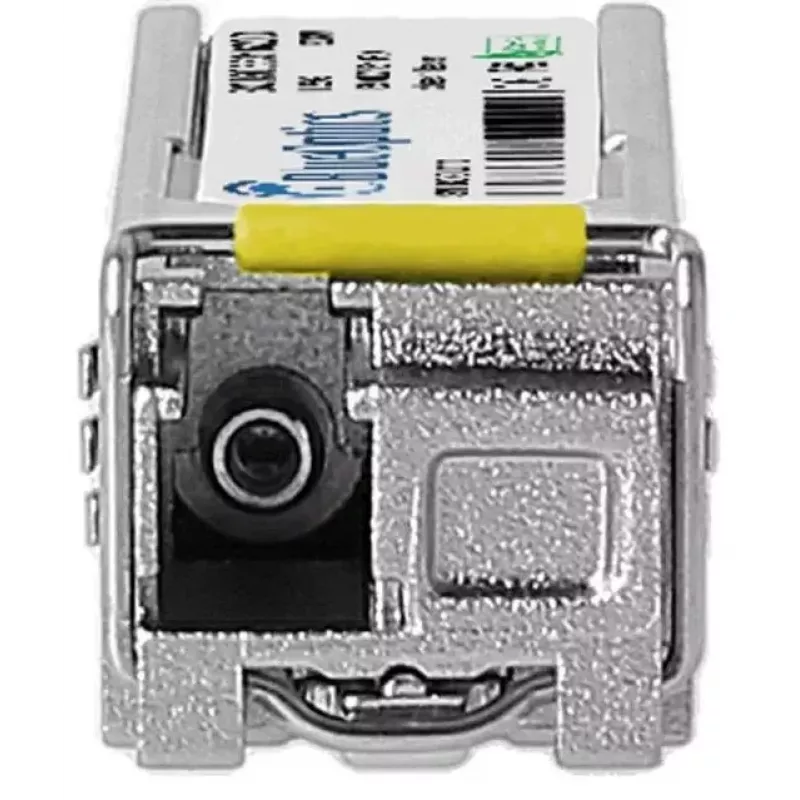

• Fiber connector: LC (UPC) simplex
• Supply voltage: 3.3 V
• Dimensions (W × D × H): 13.9 mm × 58.4 mm × 8.5 mm
• Weight: 0.02 kg
• Product colour: Silver

How to use

Before insertion, ensure the host device supports MSA-compliant SFP modules and that the firmware or software does not block third-party transceivers. Align the LC connector of the fiber patch cord with the module's LC (UPC) port and insert the SFP into an empty SFP cage on the switch, router or media converter until it latches. Verify link status and negotiated speed through the host device management interface. For best results, route the fiber carefully to avoid tight bends and protect connectors from contamination; clean connector endfaces before mating.

Recommendations

Use single-mode fiber cabling and LC (UPC) patch cords rated for long-distance links. Confirm DDM/DOM support on the host platform if real-time diagnostic monitoring is required. Store and handle the module in a clean, ESD-safe environment and follow manufacturer guidelines for insertion/removal to avoid damage to the optical interfaces.
