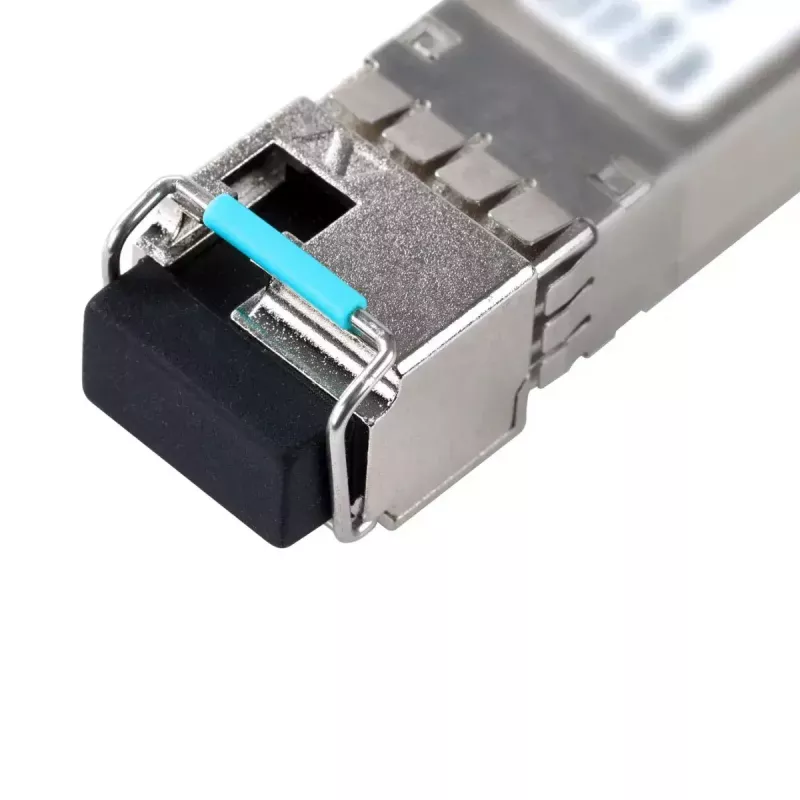

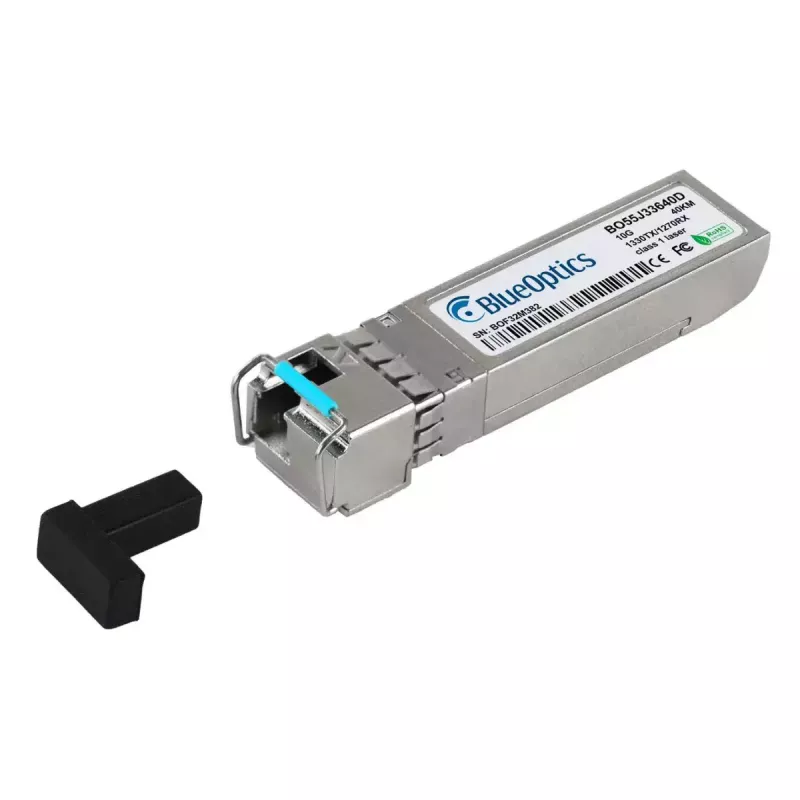

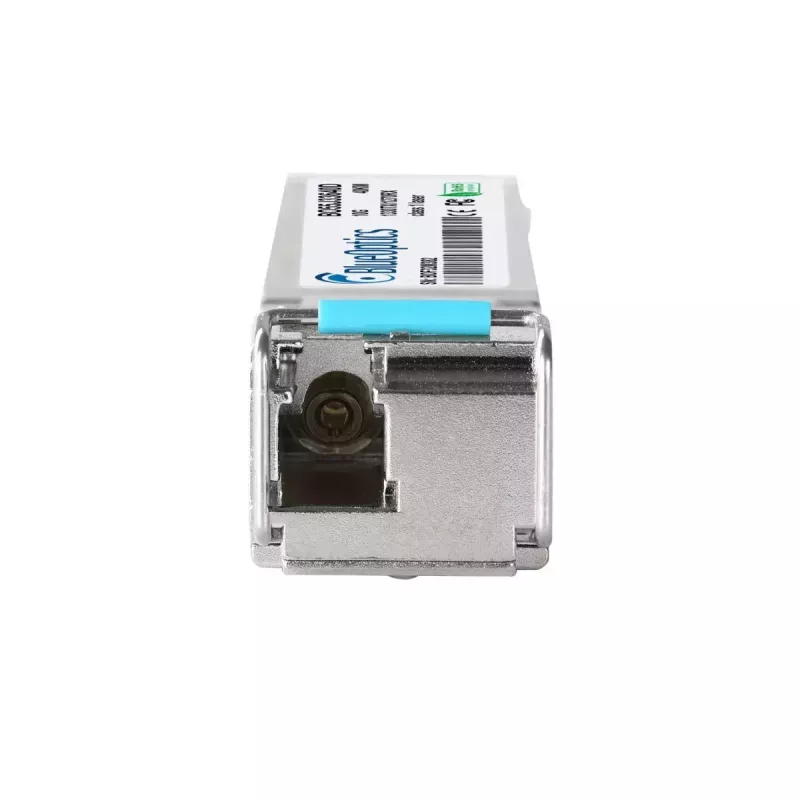

SFP+ transceiver modul BlueOptics 3HE10452AB-BO 10000 Mbit/s

The BlueOptics 3HE10452AB-BO 10000 Mbit/s SFP+ transceiver module is a compact fiber optic interface designed for high-speed network links. It supports data transfer rates up to 10 Gbit/s in a standard SFP+ form factor and is built for integration into switches, routers and optical equipment that accept hot-pluggable SFP+ modules. The module's silver housing and lightweight design make it suitable for dense installations where space and weight matter, while a quoted MTBF of 1,000,000 hours indicates long-term operational reliability under typical conditions.

Advantages

This SFP+ transceiver offers a standardized interface type compatible with SFP+ ports, enabling straightforward replacement or upgrade of existing fiber connections. Its support for 10000 Mbit/s ensures sufficient bandwidth for server uplinks, aggregation ports and bandwidth-intensive applications. The compact, low-weight metal housing provides physical robustness and simple handling during installation or maintenance. Rated with a high MTBF, the module reduces the need for frequent replacements in stable network environments.

Suitable for

• 10 Gbit/s uplinks between switches and servers
• Fiber optic connections in data centers and server rooms
• Network aggregation and backbone links
• Replacement or spare SFP+ modules for compatible network equipment

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Housing colour: silver
• Weight: 0.02 kg
• Form factor: hot-pluggable SFP+ transceiver
• Designed for fiber optic links

How to use

Insert the module into a compatible SFP+ slot on the network device while the device is powered according to the manufacturer's guidance for hot-pluggable modules. After seating the module, connect the appropriate fiber optic cable and verify link status through the device's management interface or LED indicators. If required, configure the device's port settings such as speed, duplex and transceiver-specific options in line with network policies. When removing the module, follow standard hot-swap procedures to avoid cable or port damage.

Recommendations

Verify compatibility with the target device's supported transceiver list before installation. Use recommended fiber types and connector standards for 10 Gbit/s links, keep dust caps on when the module is not connected, and handle the module by its housing to avoid contaminating optical interfaces.
