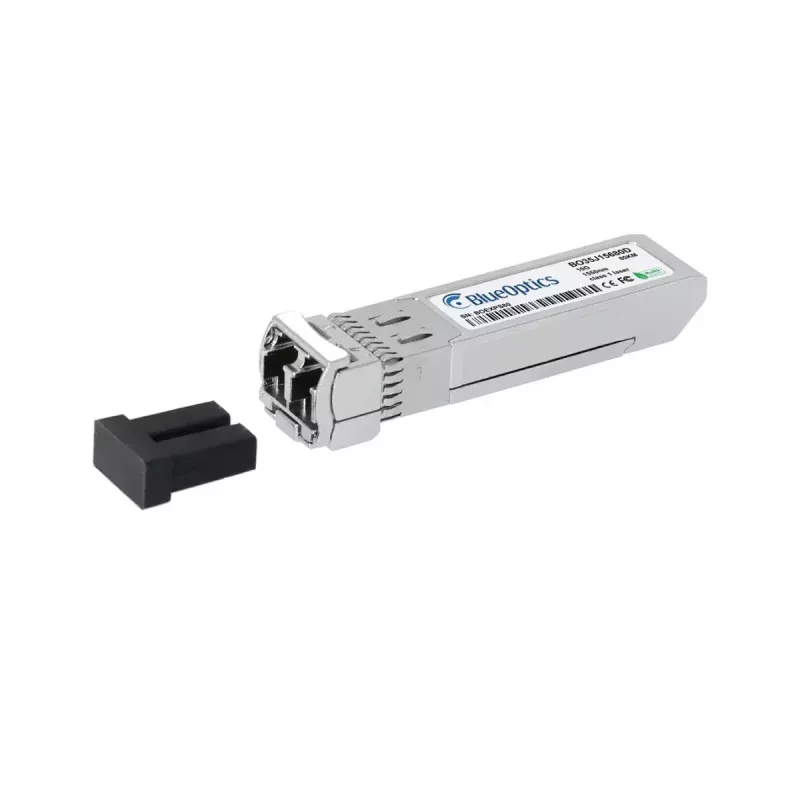

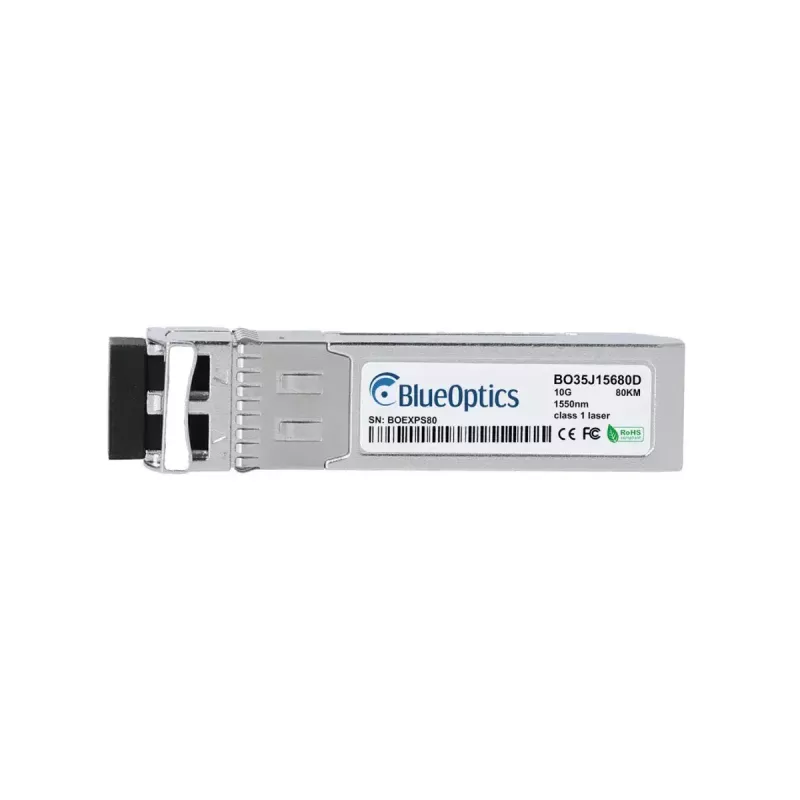

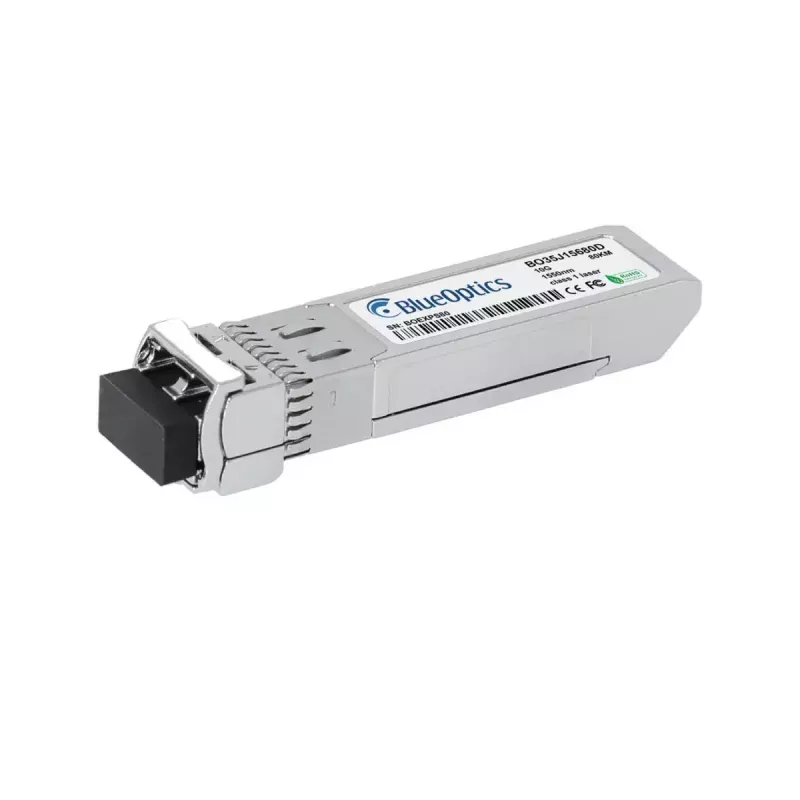

SFP+ transceiver modul BlueOptics AT-SP10ZR80/I-BO optický LC

The BlueOptics AT-SP10ZR80/I-BO is a 10G SFP+ fiber optic transceiver module designed for long-distance single-mode links with an LC duplex connector. Constructed in aluminium and weighing approximately 20 g, this module supports 10GBASE-ZR transmission over up to 80 km and is compatible with hardware that follows MSA SFP+ standards. It integrates optical transmitter and receiver elements at 1550 nm and offers digital diagnostic monitoring for real-time status reporting when supported by the host device.

Advantages

The module provides 10 Gbit/s optical data transmission on single-mode fiber with an LC duplex interface, enabling simultaneous transmit and receive channels. Built to MSA specifications, it is compatible with a broad range of network switches, routers and storage systems that accept SFP+ 10GBASE-ZR modules. The aluminium housing and tested components contribute to a compact, durable design with low weight and long operational lifetime. When the host platform supports DDM/DOM, the transceiver supplies supply voltage, laser bias current, transmit power, receive power and temperature readings for remote diagnostics.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into a compatible SFP+ slot on the switch, router or storage device until it clicks into place, using an LC duplex single-mode patch cable to connect to the remote transceiver or patch panel. Verify that the host device firmware or driver accepts third-party SFP+ modules and that DDM/DOM support is enabled if diagnostic monitoring is required. After insertion, confirm link status and speed on the host device and check power and receive levels through the management interface if available.

Recommendations

For reliable long-distance performance, use single-mode fiber and high-quality LC duplex patch cords matched to the transceiver specifications, ensure proper cleaning of fibre endfaces before connection, and confirm host compatibility with 10GBASE-ZR modules. Enable DDM/DOM monitoring in the host to track optical parameters and schedule preventive maintenance based on readings.
