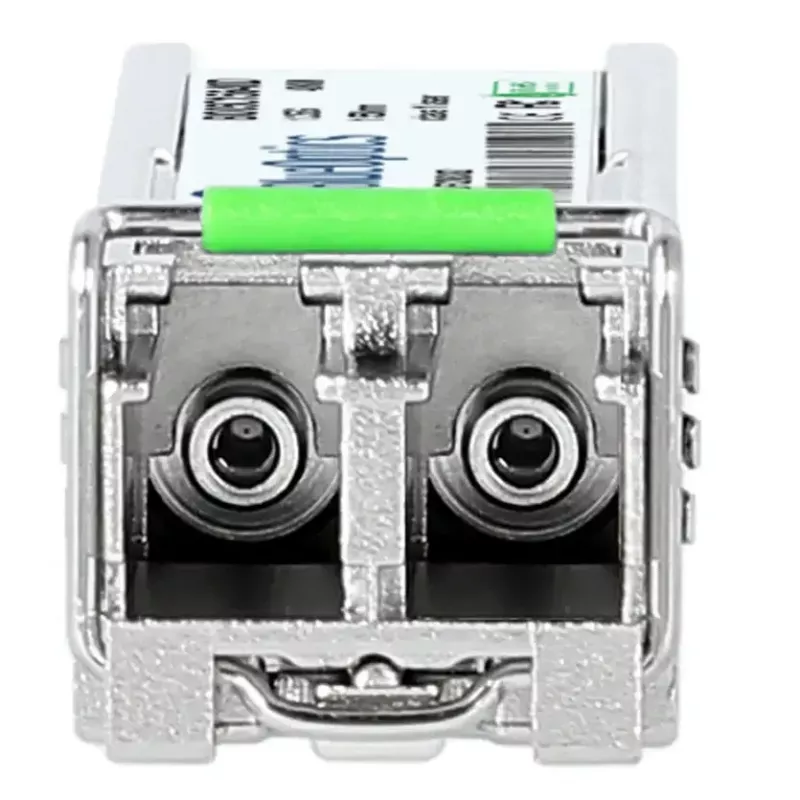

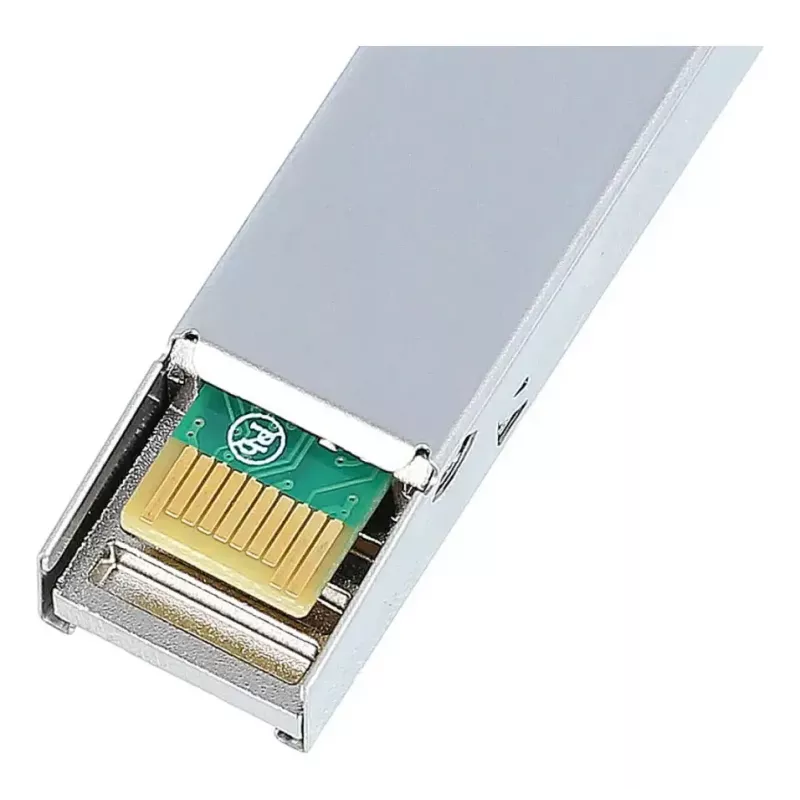

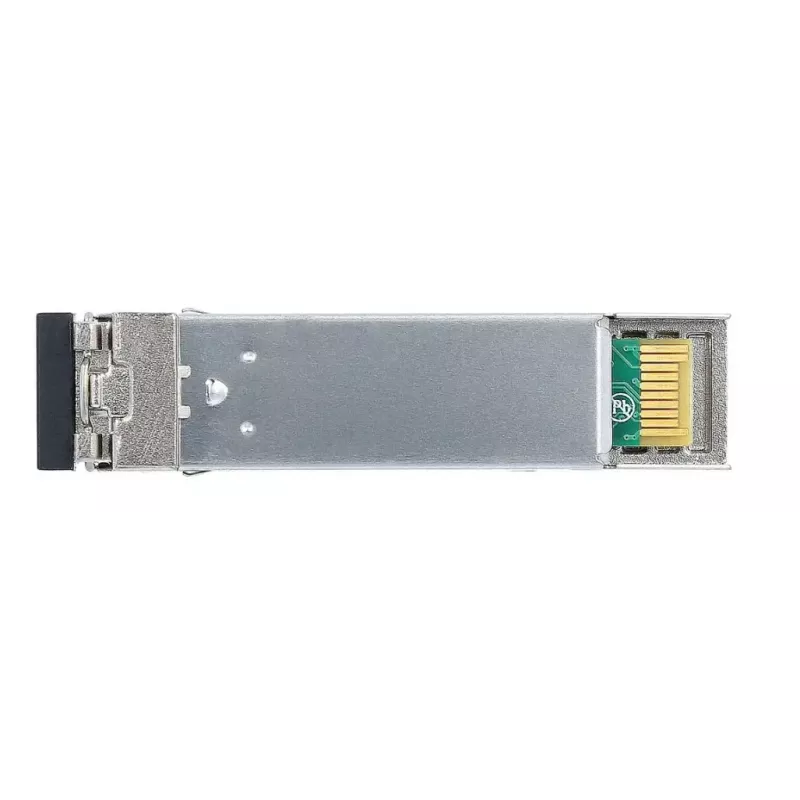

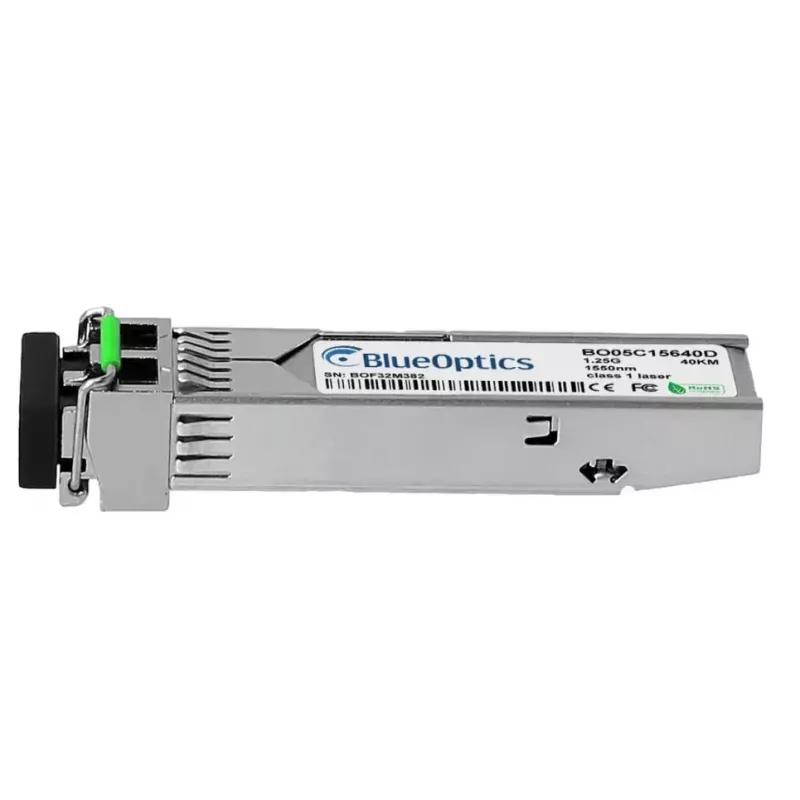

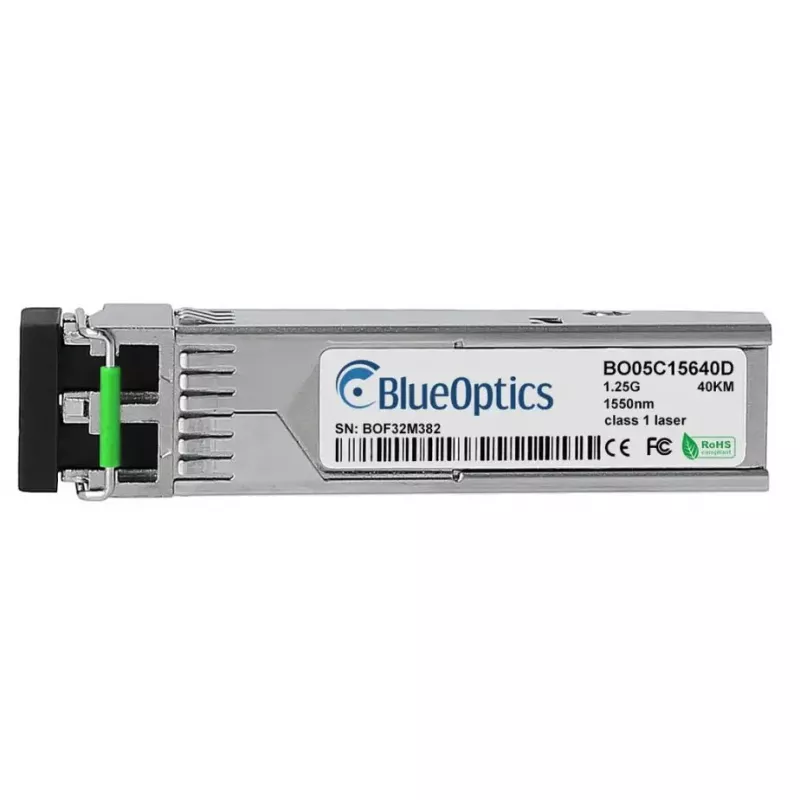

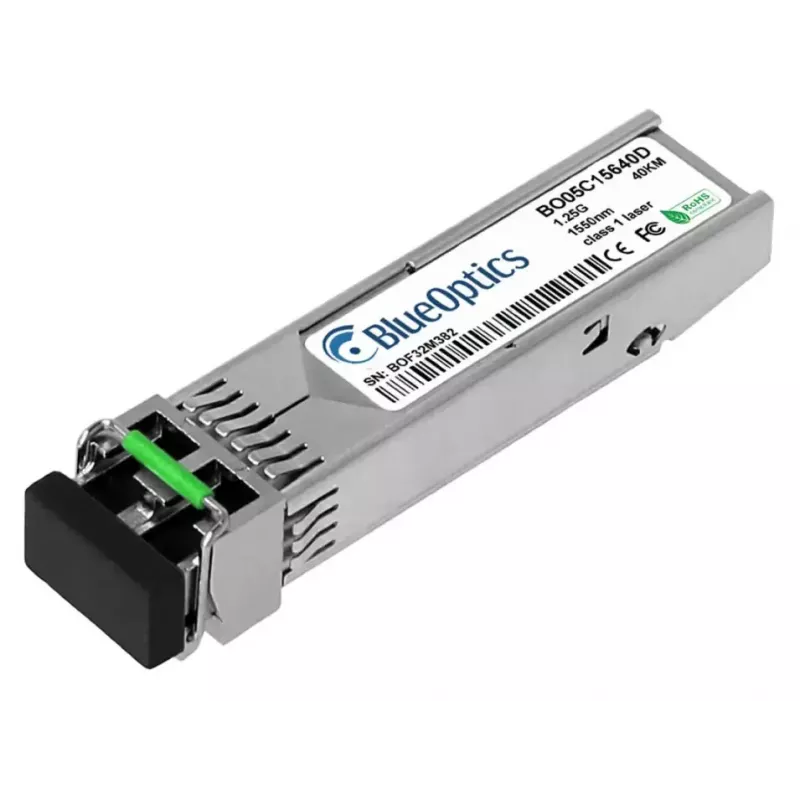

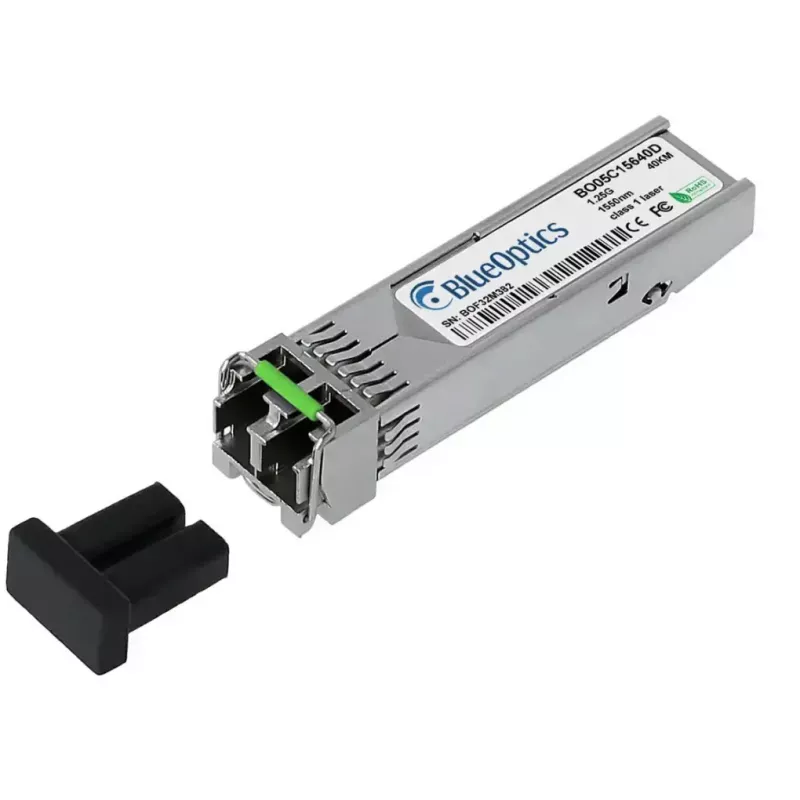

SFP transceiver modul BlueOptics BO05C15640DIN 1250 Mbit/s

The BlueOptics BO05C15640DIN SFP transceiver module is designed for fiber optic network links requiring up to 1250 Mbit/s data throughput. With a compact SFP form factor and an LC fiber connector, the module supports single-port insertion into compatible network equipment. The transceiver is silver in color, lightweight at 20 g, and certified to CE, FCC and RoHS standards. Its high reliability is reflected in a mean time between failures (MTBF) of 3,000,000 hours, and it supports optical transmission distances up to 40,000 m, making it suitable for extended-reach fiber connections.

Advantages

The module provides a standardized SFP interface for straightforward hot-pluggable installation and interoperability with SFP-enabled switches, routers and media converters. Its LC connector and support for 1.25 Gigabit Ethernet ensure compatibility with common fiber infrastructures. Certification to CE, FCC and RoHS offers assurance of regulatory compliance, while the low weight and compact dimensions simplify handling and installation in dense equipment racks.

Suitable for

Key specifications

How to use

Install the BlueOptics BO05C15640DIN by inserting the SFP module into a compatible SFP port on a switch, router or media converter until it latches. Connect an LC-terminated fiber optic cable to the module's LC connector, observing proper fiber polarity and connector cleanliness. Ensure the host device is powered and configured for the intended 1.25 Gigabit Ethernet link; the module supports hot-plug operation but should be handled following standard ESD precautions. Monitor link status through the host device to verify successful negotiation and signal quality.

Recommendations

For reliable performance, use clean LC connectors and factory-tested single-mode fiber for long-reach links, verify compatibility with the host equipment's SFP specifications, and follow ESD handling procedures. Keep firmware and device configurations up to date to ensure stable 1.25 Gigabit Ethernet operation.
