SFP transceiver modul BlueOptics BO15C3149620DIN 1250 Mbit/s vlákno

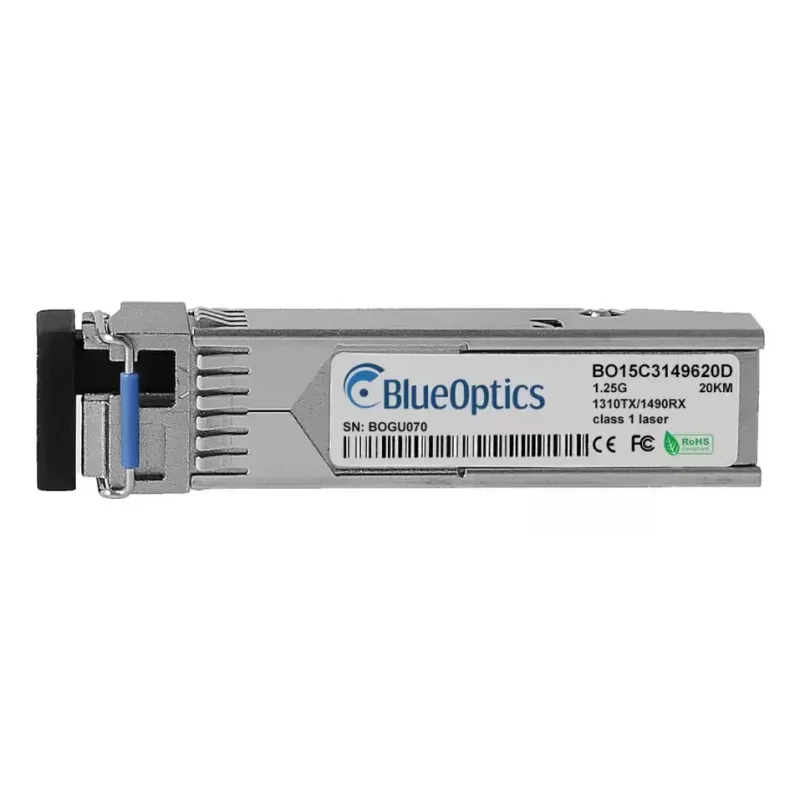

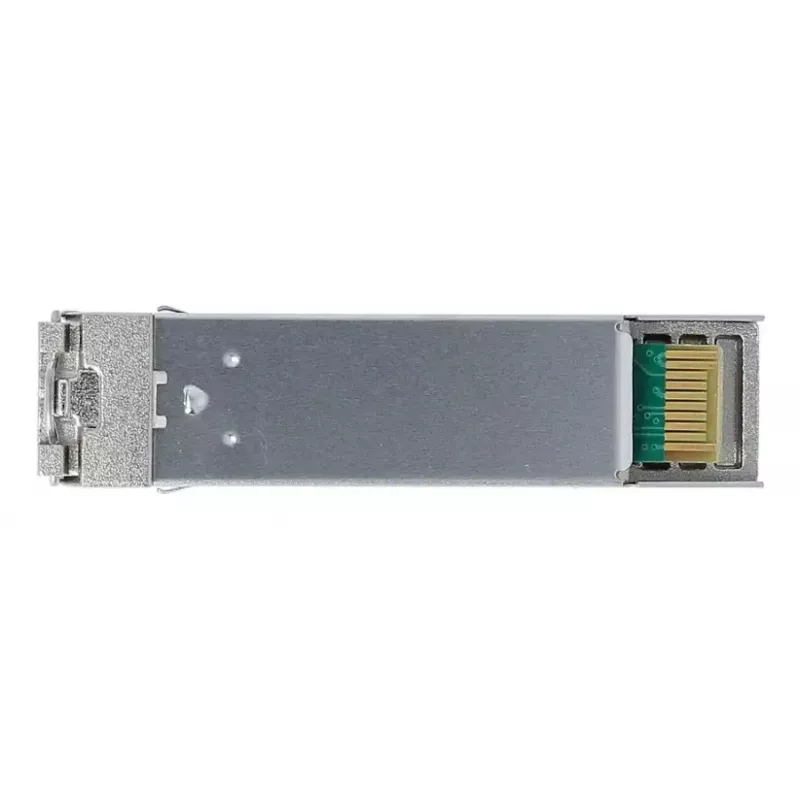

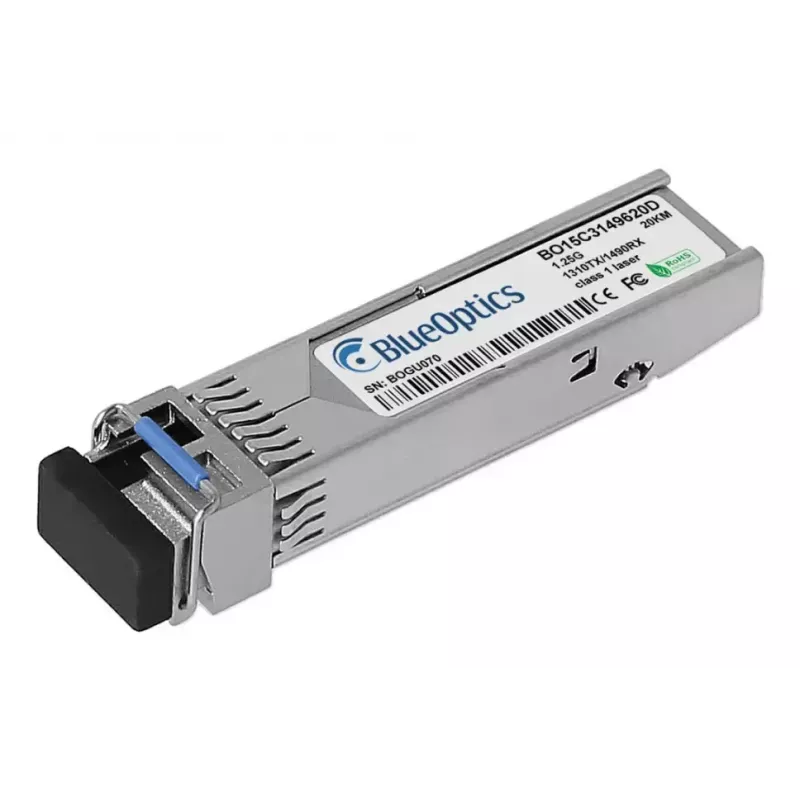

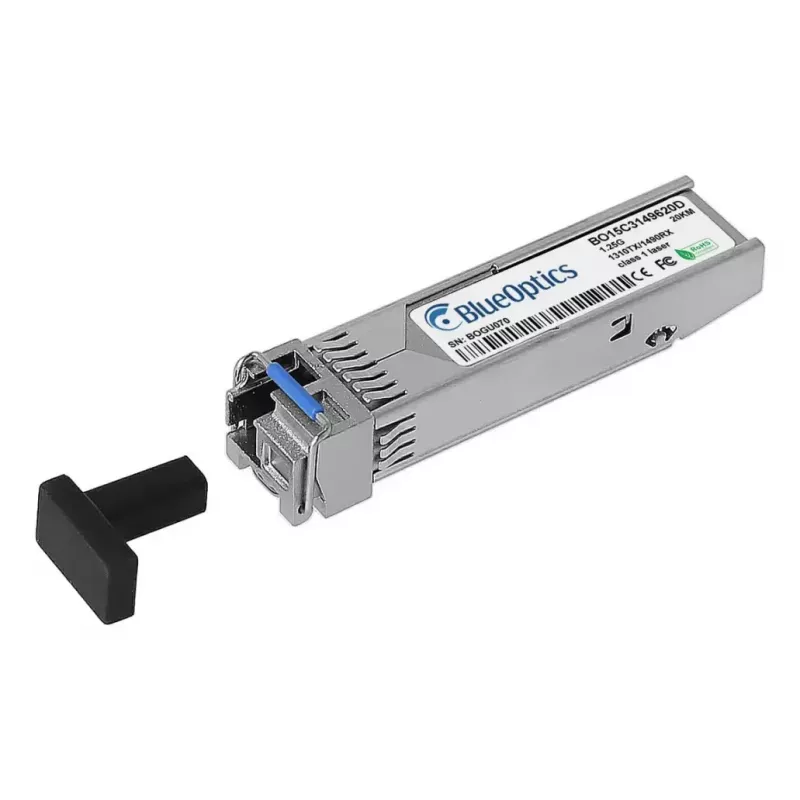

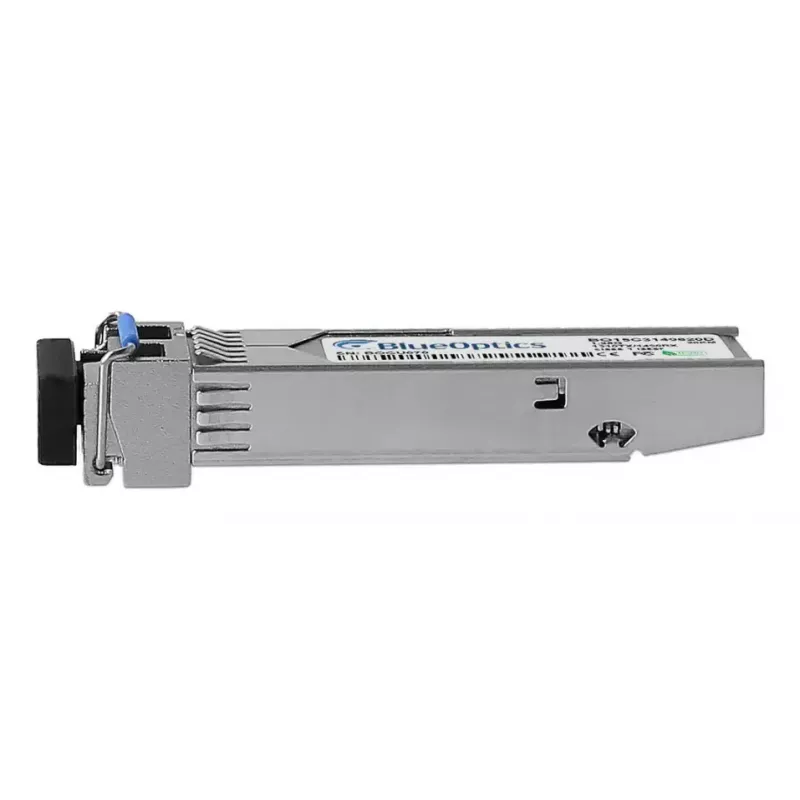

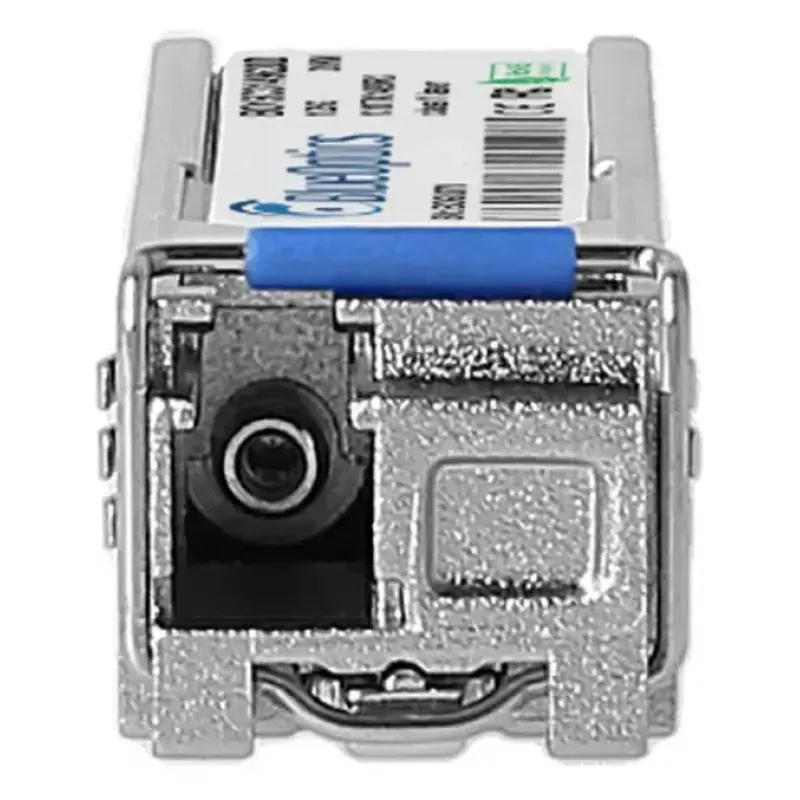

The BlueOptics BO15C3149620DIN is an SFP transceiver module for fiber optic connections, supporting a maximum data transfer rate of 1250 Mbit/s. Built in a compact SFP form factor with an LC fiber connector and silver housing, this module is intended for use in 1.25 Gigabit Ethernet links. It is lightweight (0.02 kg) and rated with a mean time between failures (MTBF) of 3,000,000 hours. Compliance with CE, FCC and RoHS standards ensures it meets common regulatory and environmental requirements for networking equipment.

Advantages

The module’s SFP form factor provides compatibility with a wide range of switches, routers and media converters that accept hot-pluggable transceivers. A maximum transfer distance of up to 20,000 m enables use in long-reach fiber segments. The LC connector and standardized 1.25 Gigabit Ethernet interface simplify installation and interoperability. Low weight and compact dimensions reduce space and mechanical load in rack or chassis installations.

Suitable for

Key specifications

How to use

Power down the device only if required by the manufacturer; otherwise use the module as a hot-pluggable transceiver by inserting it into an available SFP slot on a compatible switch, router or media converter. Connect an LC-terminated singlemode or multimode fiber cable as appropriate for the link design, ensuring correct polarity. Configure the network equipment to recognize the 1.25 Gb/s interface and verify link status using device LEDs or management interfaces. Observe electrostatic discharge (ESD) precautions when handling the transceiver and keep dust caps in place on unused ports.

Recommendations

For reliable long-term operation, use the BlueOptics module within the specified environmental ranges of the host device, maintain clean fiber end-faces, and follow manufacturer guidance for fiber type (singlemode or multimode) and connector cleaning. Verify compatibility with your switching or routing equipment before deployment.
