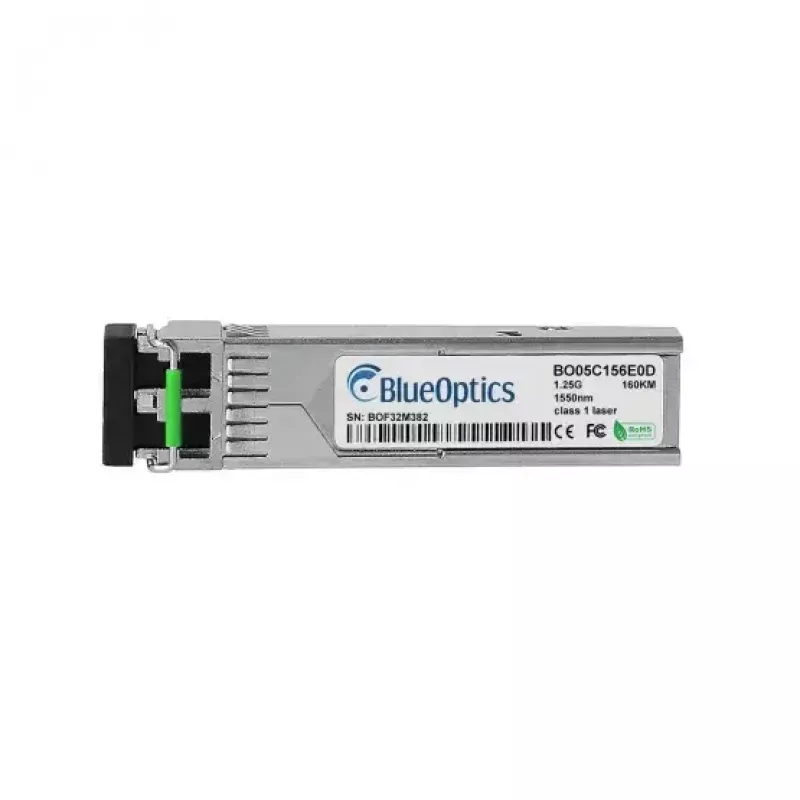

SFP transceiver modul BlueOptics BTI-MGBIC-ELH-DD-LC-BO 1250 Mbit/s 1550 nm

The BlueOptics BTI-MGBIC-ELH-DD-LC-BO SFP transceiver module is designed for single-mode fiber optic networking and supports a data transfer rate up to 1250 Mbit/s at a wavelength of 1550 nm. Housed in a durable metal casing and weighing just 20 g, the module uses an LC duplex interface and operates from a 3.3 V supply. It is designed to support long-range connections up to 160 km and complies with common MSA SFP form-factor standards, making it suitable for integration into switches, routers and other network hardware that accept standard SFP transceivers.

Advantages

The module provides long-distance optical transmission with low susceptibility to electromagnetic interference thanks to single-mode fiber operation at 1550 nm. Its compact SFP form factor and metal housing ensure mechanical stability and straightforward hot-pluggable installation. Built and tested to industry MSA standards, the transceiver includes digital diagnostics support for monitoring key operating parameters and is compatible with hardware platforms that support standard 1000BASE-ZX SFP modules.

Suitable for

Key specifications

How to use

Install the SFP transceiver into an empty SFP slot on a compatible switch, router or optical interface while the host device is powered according to the vendor's instructions for hot-pluggable modules. Connect an appropriate single-mode LC duplex fiber patch cable to the transceiver, ensuring correct Tx/Rx orientation. Verify link status on the host device and, if available, use the device management interface to check digital diagnostics for supply voltage, laser bias current, optical output/input power and temperature. Follow the equipment vendor guidelines for firmware and compatibility requirements.

Recommendations

Use single-mode fiber and LC duplex patch cords rated for long-distance 1550 nm transmission. Confirm DDM/DOM support on the host platform to monitor performance and schedule preventive maintenance. Avoid bending or stressing fiber connectors and follow ESD-safe handling procedures when inserting or removing the SFP module.
