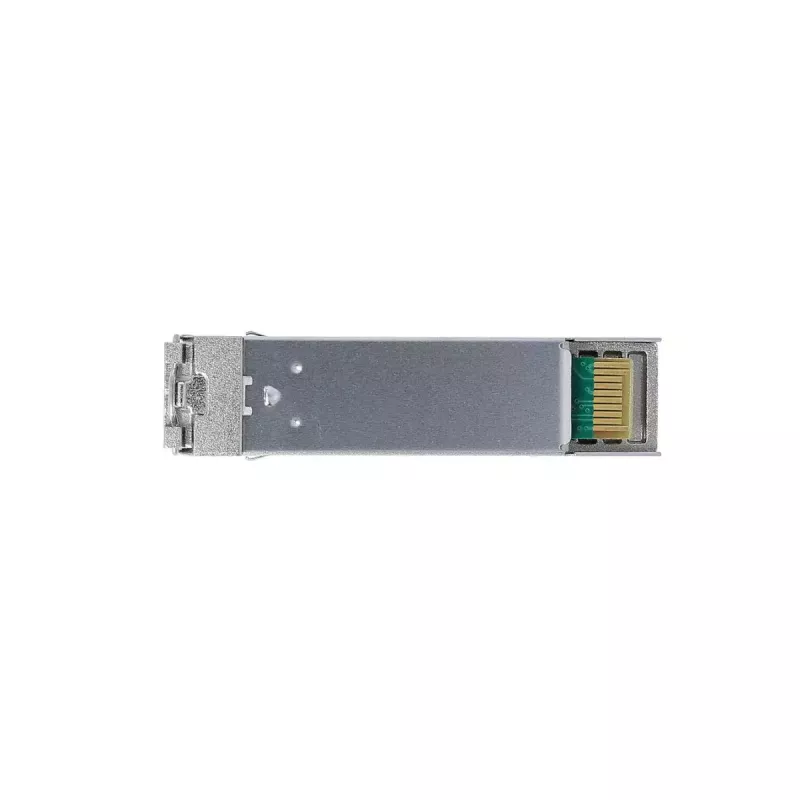

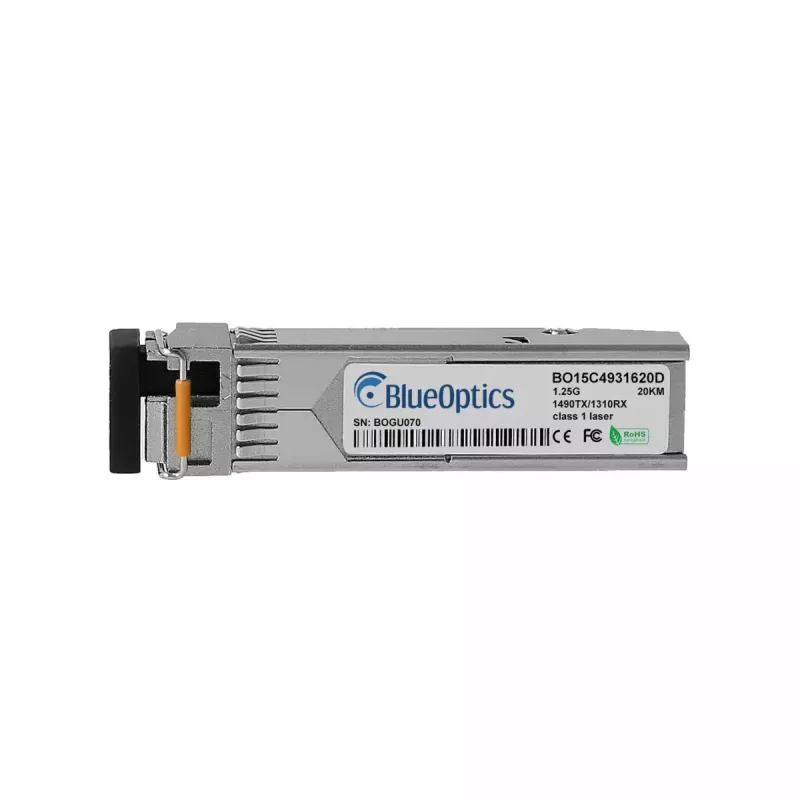

SFP transceiver modul BlueOptics BTI-SFP-GBD10L-DD-49/31S-BO 1250 Mbit/s

The BlueOptics BTI-SFP-GBD10L-DD-49/31S-BO 1250 Mbit/s is an SFP transceiver module for single-mode fiber optic connections. Designed for modular network equipment with SFP ports, this compact silver module supports a data rate up to 1250 Mbit/s and a maximum optical reach of 20,000 m. With a lightweight design (approx. 20 g) and standardized LC fiber connector, it fits typical switches, routers and media converters that accept SFP form-factor modules and provides a long rated MTBF of 1,000,000 hours for continuous operation scenarios.

Advantages

The module offers a compact SFP form factor compatible with many network devices and a silver housing that simplifies identification in rack systems. It supports 1.25 Gigabit Ethernet signaling suitable for legacy 1250 Mbit/s links and provides a long maximum transmission distance of up to 20 km over single-mode fiber. Low weight and an industry-standard LC connector make installation and hot-swap replacement straightforward while the high MTBF indicates reliable long-term operation in managed networks.

Suitable for

Key specifications

How to use

Ensure the host device supports SFP transceivers and that the SFP slot is powered down or the device supports hot-swap insertion if installing live. Align the LC connector on the fiber patch cable with the module's LC port and insert the transceiver into the SFP slot until it latches. Configure the host device for the appropriate link speed and fiber type if required. Verify link status and optical levels using the network device management interface or diagnostic tools. For removal, unlatch and pull the module straight out, then protect the LC connector with dust caps.

Recommendations

Use single-mode fiber cables rated for the intended distance and maintain clean LC connector endfaces to prevent signal loss. Match the transceiver's specifications with the remote endpoint to ensure compatible wavelength and link parameters, and follow the host equipment manufacturer’s guidelines for SFP compatibility and firmware settings.
