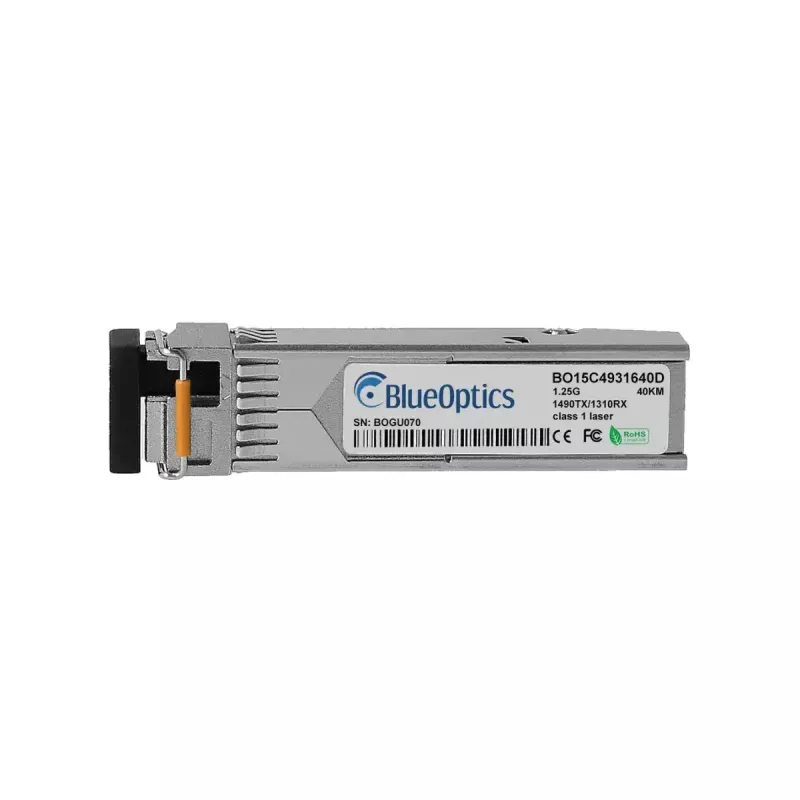

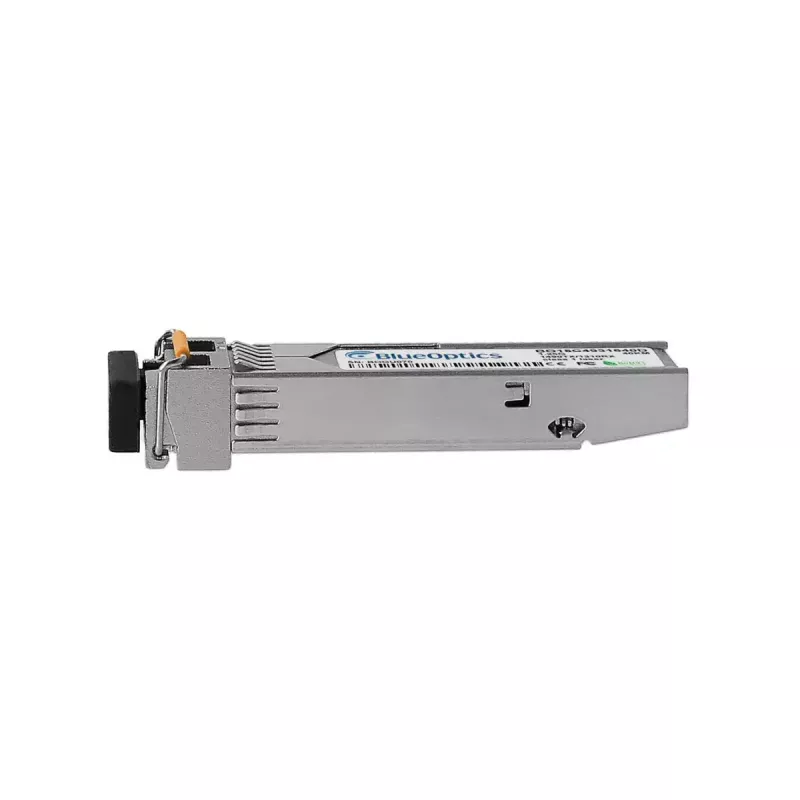

SFP transceiver modul BlueOptics BTI-SFP-GBD40E-DD-49/31S-BO 1250 Mbit/s

The BlueOptics BTI-SFP-GBD40E-DD-49/31S-BO 1250 Mbit/s is a compact single‑port SFP transceiver module designed for fiber optic network links. It supports a maximum data transfer rate of 1250 Mbit/s and a maximum transmission distance of up to 40,000 m over single-mode fiber. The module uses an LC fiber connector, conforms to the SFP form factor and comes in a silver housing with a lightweight build of approximately 20 g. With an MTBF of 1,000,000 hours, this transceiver is intended for stable point-to-point Ethernet connections in network equipment that accepts SFP modules.

Advantages

This SFP transceiver provides a standard 1.25 Gigabit Ethernet interface in a hot‑pluggable SFP form factor, enabling easy insertion and replacement without powering down equipment. The LC connector ensures compact duplex fiber connections, while the long maximum transfer distance makes it suitable for campus, metropolitan and long‑haul links. The modest weight and industry standard form factor simplify deployment in switches, media converters and optical line cards. The long MTBF rating indicates a design aimed at sustained operation and reduced maintenance intervals.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP transceiver into an available SFP slot on a compatible switch, router or media converter until it clicks into place. Connect LC duplex single‑mode fiber patch cords to the module, observing correct transmit/receive alignment. Ensure the connected equipment is configured for the appropriate link speed and duplex mode; the module operates at the standard 1.25 Gbit/s SFP interface. Monitor link status via the host device; the module is hot‑pluggable so it can be inserted or removed while the host is powered, following the host vendor's instructions for hot‑swap procedures.

Recommendations

Use high-quality single‑mode LC patch cords and follow proper fiber handling procedures to avoid contamination of optical endfaces. Verify optical power budgets and connector cleanliness when deploying over long distances, and consult device compatibility lists if the host equipment restricts supported transceiver models.
