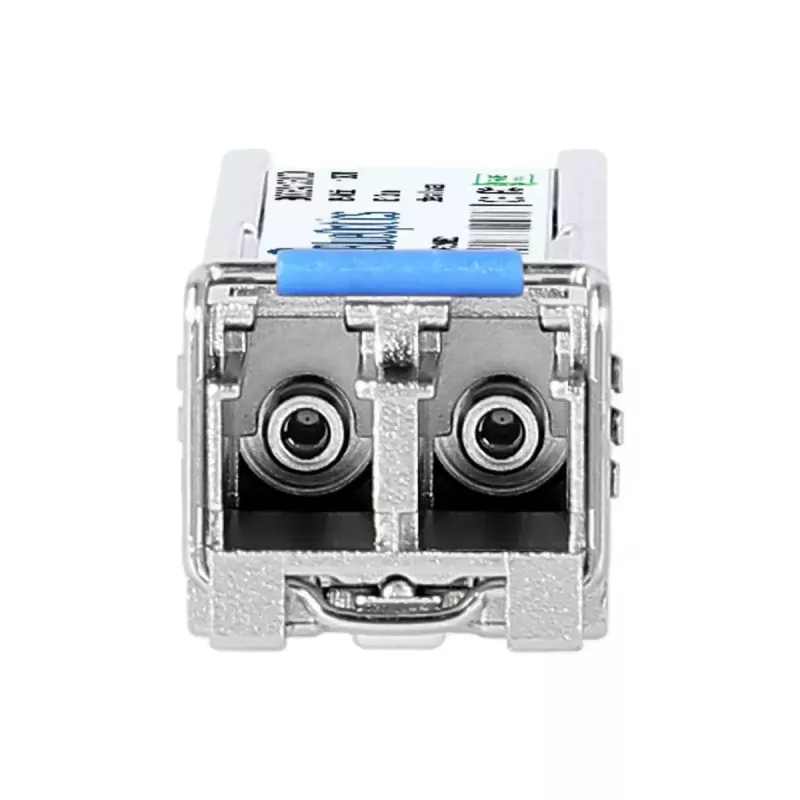

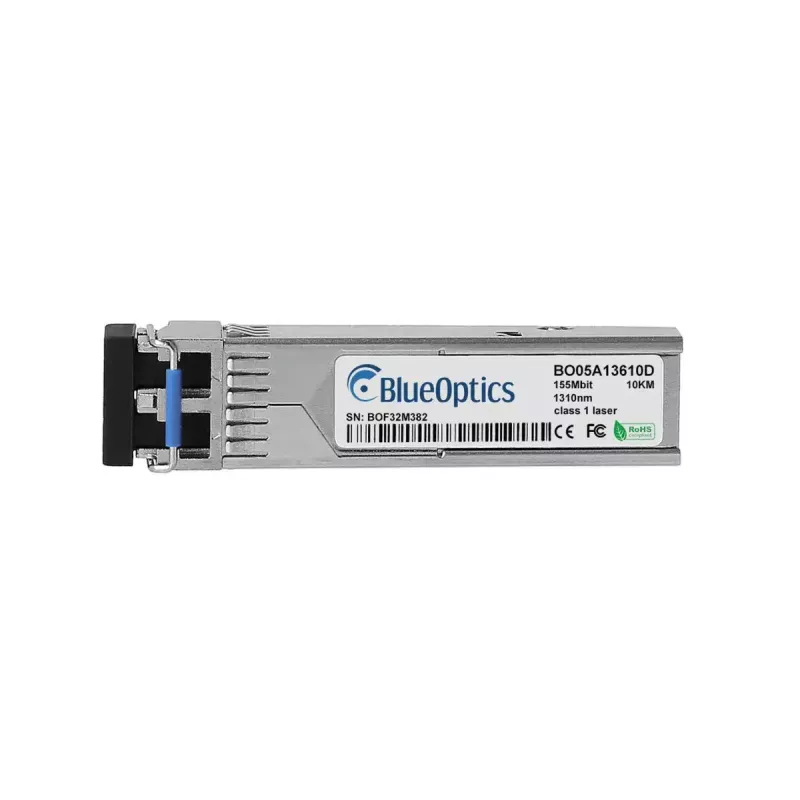

SFP transceiver modul BlueOptics ONS-SE-100-LX10-BO 155 Mbit/s 1310 nm

The BlueOptics ONS-SE-100-LX10-BO SFP transceiver module is designed for fiber optic connections with a compact SFP form factor. It supports a maximum data transfer rate of 155 Mbit/s and operates at a wavelength of 1310 nm using an LC duplex interface. The module is engineered for interoperability with common hardware platforms that accept MSA-compliant SFP modules and is built to meet CE, FCC and RoHS standards. Rated with a mean time between failures (MTBF) of approximately 3,000,000 hours, it provides a reliable optical link for 100BASE-LX type applications over singlemode fiber.

Advantages

The transceiver provides a standardized SFP interface in a compact silver enclosure, enabling easy hot-plug replacement and broad vendor compatibility when used in equipment that supports MSA SFP modules. Operating at 1310 nm and supporting 155 Mbit/s data throughput, it offers stable optical transmission with LC duplex connections. The module includes digital diagnostics monitoring (DDM/DOM) for real-time reporting of parameters such as supply voltage, laser current, optical power and temperature when supported by the host device. Manufactured to industry component standards, the module is intended for long service life and steady performance in networking environments.

Suitable for

• 100BASE-LX fiber uplinks between switches and routers
• Interconnection of storage systems and network appliances over singlemode fiber
• Replacement or upgrade of SFP ports in MSA-compliant network equipment
• Use in measurement and monitoring devices that accept LC duplex SFP modules

Key specifications

• Form factor: SFP (small form-factor pluggable)
• Maximum data rate: 155 Mbit/s
• Wavelength: 1310 nm (transmit and receive)
• Connector type: LC duplex
• Typical application: 100BASE-LX optical link
• Mean time between failures (MTBF): ~3,000,000 hours
• Color/finish: Silver
• Weight: 0.02 kg

How to use

Install the BlueOptics SFP module into an empty SFP port on compatible network hardware while the device is powered according to the host vendor’s instructions for hot‑swap modules. Connect an LC duplex singlemode fiber patch cable to the module’s LC ports, ensuring correct transmit/receive orientation. Verify link status on the host device and, if applicable, enable or monitor DDM/DOM functions through the host management interface to check operating parameters. Follow the equipment manufacturer’s guidelines for handling ESD-sensitive components and for cleaning fiber connectors before insertion.

Recommendations

Use singlemode LC duplex patch cables matched to the optical budget and distance requirements for 100BASE-LX links, and confirm that the host device supports SFP modules with DDM/DOM if diagnostics are required. Store and handle the module in ESD-safe conditions and keep connector endfaces clean to maintain link quality.
