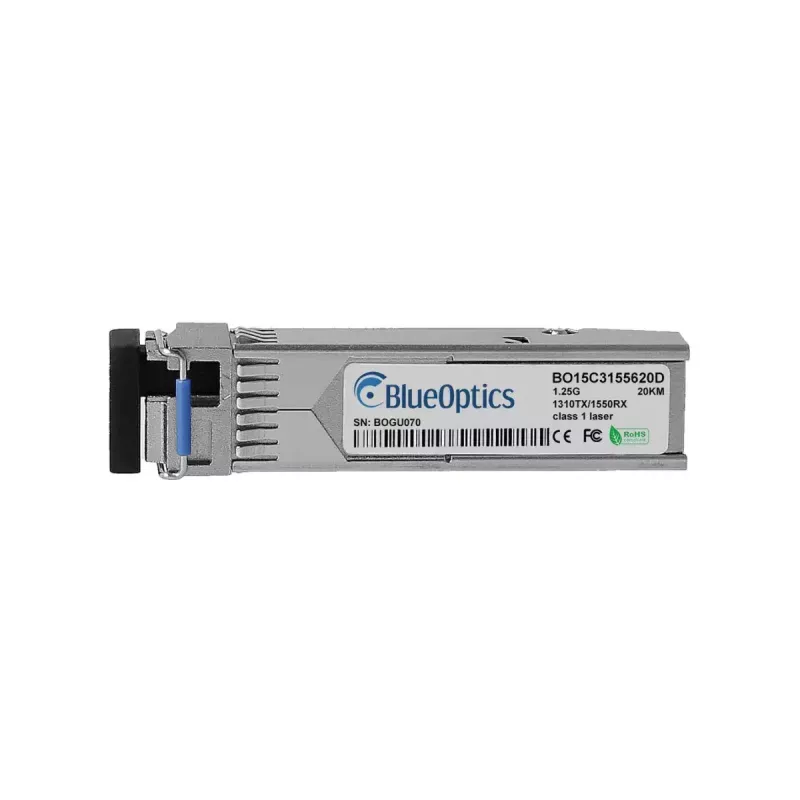

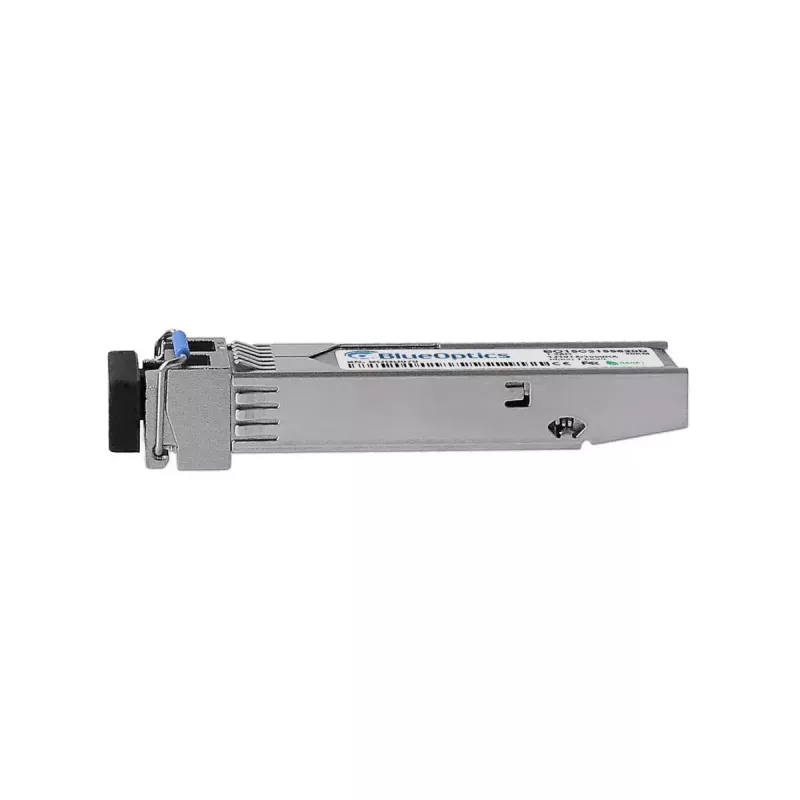

SFP transceiver modul BlueOptics RDH 102 48/1-BO 1250 Mbit/s

The BlueOptics RDH 102 48/1-BO is an SFP transceiver module designed for fiber optic links with a maximum data transfer rate of 1250 Mbit/s. It uses an SFP form factor with an LC Simplex connection and supports 1000BASE-BX-U operation with separate transmit (1310 nm) and receive (1550 nm) wavelengths over single-fiber links. The module is built to MSA standards, is CE, RoHS and FCC compliant, and has a high MTBF value for long-term use in network equipment.

Advantages

The transceiver offers compatibility with a wide range of hardware platforms that accept SFP modules, including switches, routers, storage systems and other network devices that support 1000BASE-BX-U. It integrates digital diagnostics (DDM/DOM) for real-time monitoring of optical power, temperature, supply voltage and laser current, enabling remote troubleshooting and maintenance. Constructed from high-quality optical and electronic components and finished in a compact silver housing, the module provides robust optical performance and long service life.

Suitable for

Key specifications

How to use

Install the BlueOptics RDH 102 48/1-BO into an SFP slot of a compatible network device while the device is powered down or following the device manufacturer's hot-swap procedure. Connect an LC simplex fiber patch cable to the module and ensure correct polarity for BX operation (transmit to receive on the remote end). Verify link status via the host device LEDs and, if available, access DDM/DOM data from the device management interface to check optical power, temperature and voltage readings. Follow standard ESD precautions when handling the transceiver and keep the optical connector caps on until connection.

Recommendations

Use high-quality LC simplex fiber patch cables and matching connectors to achieve the specified performance. Ensure the host device supports 1000BASE-BX-U and DDM/DOM if you intend to use diagnostic functions. Avoid bending the fiber beyond recommended radii and operate the module within manufacturer-recommended temperature and voltage ranges to maintain long-term reliability.
