SFP+ transceiver modul BlueOptics S26361-F3986-E6-BO 10 km hliník

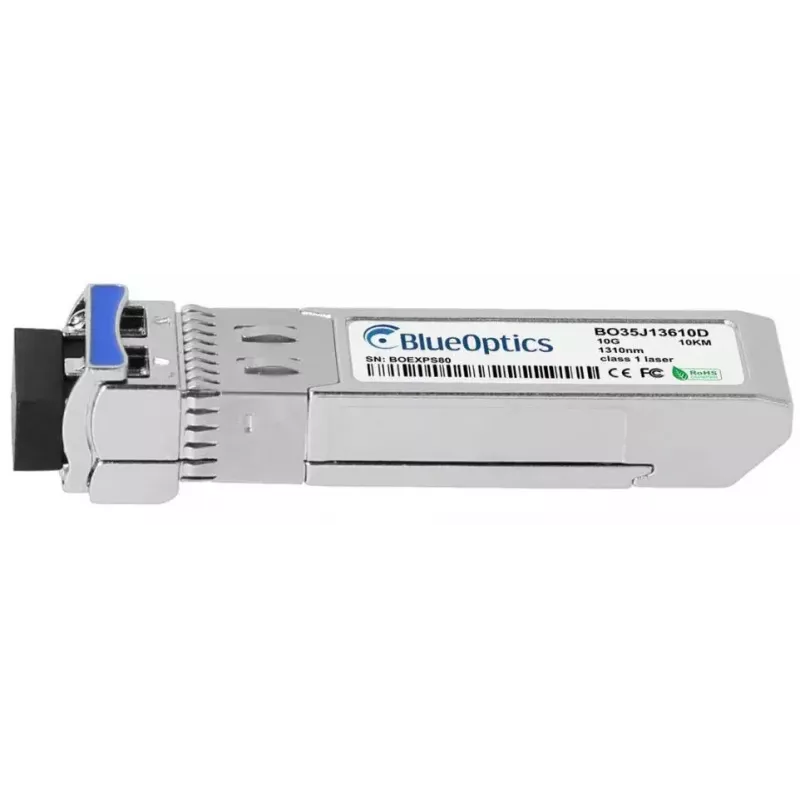

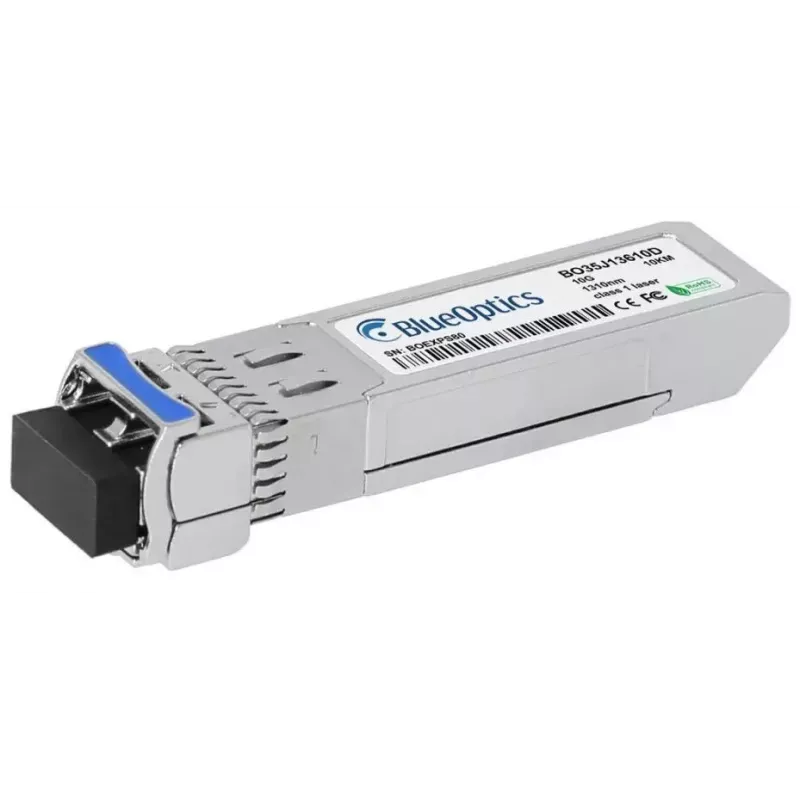

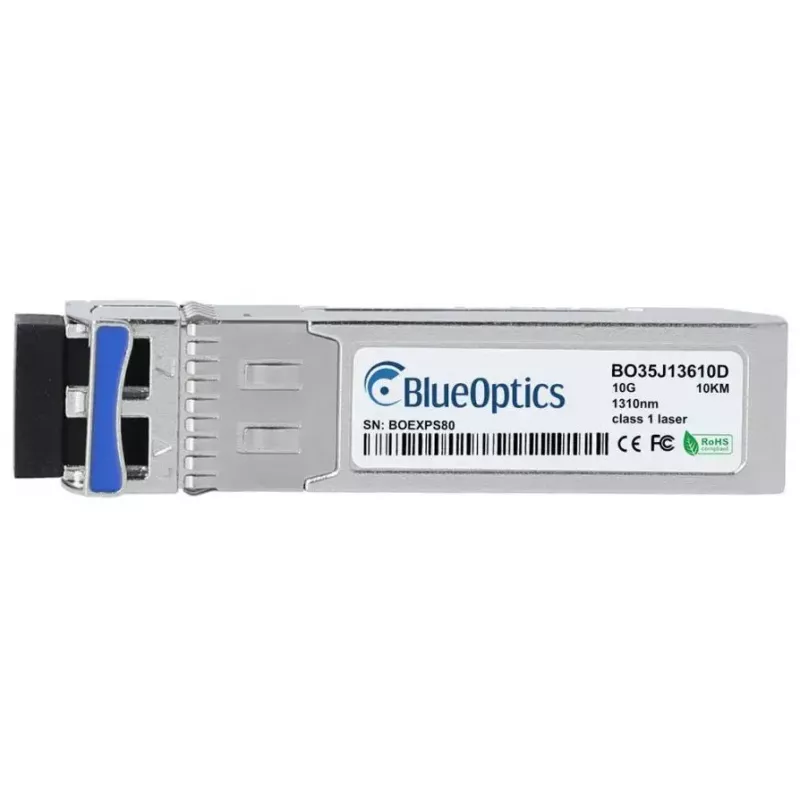

The BlueOptics S26361-F3986-E6-BO SFP+ transceiver module is a 10GBASE-LR compatible fiber optic module designed for single-mode optical links up to 10 km. Constructed in an aluminium housing and weighing approximately 20 g, this SFP+ module uses an LC duplex connector and operates with 1310 nm transmitter and receiver wavelengths. It supports standard SFP+ interface protocols and is suitable for integration into network equipment that accepts MSA-compliant 10GBASE-LR SFP+ transceivers.

Advantages

This aluminium-bodied SFP+ transceiver offers a compact, MSA-compliant form factor, stable single-mode optical transmission and reliable 10 Gbit/s performance over distances up to 10 km. The module is designed for interoperability with equipment that supports Fujitsu S26361-F3986-E6 compatible 10GBASE-LR SFP+ transceivers and includes digital diagnostic monitoring (DDM/DOM) support when the host hardware provides that functionality. The lightweight construction and industry-standard LC duplex connector simplify installation and cabling.

Suitable for

Key specifications

How to use

Install the SFP+ transceiver into any compatible SFP+ slot on switches, routers or other network appliances while the device is powered according to the vendor’s installation guidelines. Use a single-mode LC duplex patch cable to connect to the remote transceiver, observing transmit/receive orientation. Verify link negotiation and speed on the host device; enable DDM/DOM in the system management interface if monitoring of optical parameters is required and supported by the hardware. Follow standard ESD precautions when handling the module and keep protective caps on the optical ports when not in use.

Recommendations

For optimal performance, pair this transceiver with single-mode LC duplex fiber and maintain proper connector cleanliness. Confirm host compatibility with Fujitsu S26361-F3986-E6 compatible 10GBASE-LR SFP+ modules and check that DDM/DOM is supported if remote diagnostics are needed. Use appropriate fiber patch panels or quality patch cords to minimize insertion loss and achieve the specified 10 km reach.
