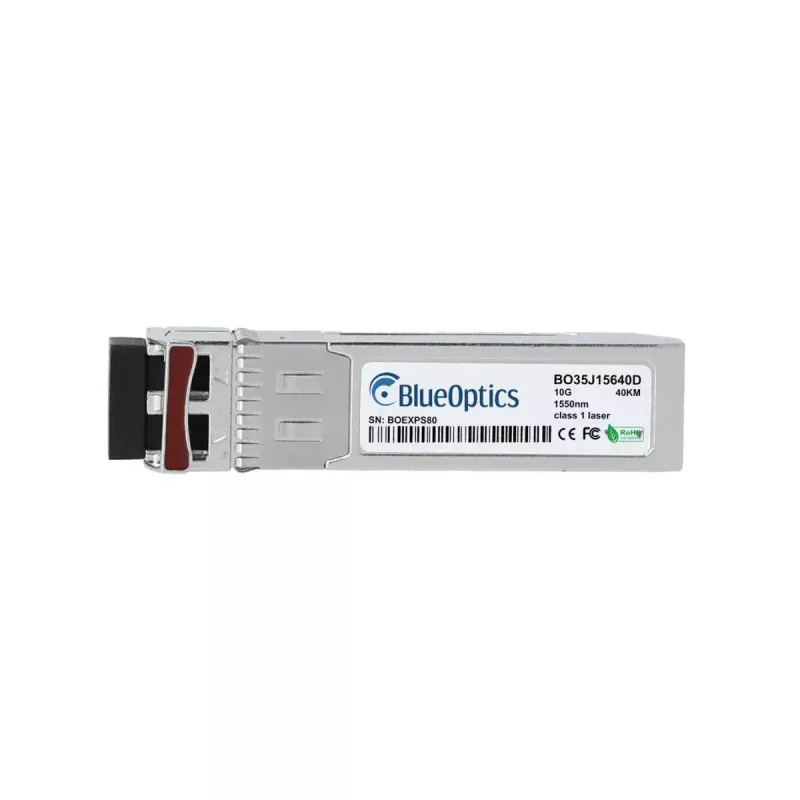

SFP transceiver modul BlueOptics SFP-10G-ER-PS 10000 Mbit/s 1550 nm

The BlueOptics SFP-10G-ER-PS is a fiber optic SFP+ transceiver module engineered for high-speed data transmission at up to 10000 Mbit/s. Operating at a wavelength of 1550 nm, this module supports long-distance optical links and is suited for use in data centers, carrier networks and enterprise backbone connections. The module fits into standard SFP+ slots and is compatible with a range of networking equipment that accepts SFP+ form-factor transceivers.

Advantages

This SFP+ transceiver offers a combination of long-reach capability and a compact form factor, enabling high-bandwidth links over extended distances while conserving module slot space. The 1550 nm wavelength is optimized for reduced attenuation on single-mode fiber, supporting reliable performance for long-haul transmission. The design follows common SFP+ mechanical and electrical interfaces to ensure straightforward integration into existing network hardware.

Suitable for

• Long-distance single-mode fiber links
• 10 Gigabit Ethernet backbone connections
• Inter-rack and campus connectivity
• Data center uplinks and aggregation ports

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Operating wavelength: 1550 nm
• Form factor: SFP+ transceiver module
• Designed for single-mode fiber long-reach applications

How to use

Insert the transceiver into an available SFP+ slot on compatible network equipment with the connector latch aligned. After physical insertion, connect a single-mode fiber cable with appropriate connectors to the transceiver’s optical port. Ensure transmit and receive fibers are correctly oriented. Configure the connected equipment for 10 Gigabit Ethernet operation if necessary and verify link status through the switch or router management interface.

Recommendations

Install and remove the transceiver with the system powered down if recommended by the equipment vendor. Use clean fiber connectors and follow standard fiber handling procedures to avoid contamination or damage. For long-haul links, verify optical budget and use single-mode fiber rated for 1550 nm transmission. Consult the networking equipment documentation for compatibility notes and transceiver settings.
