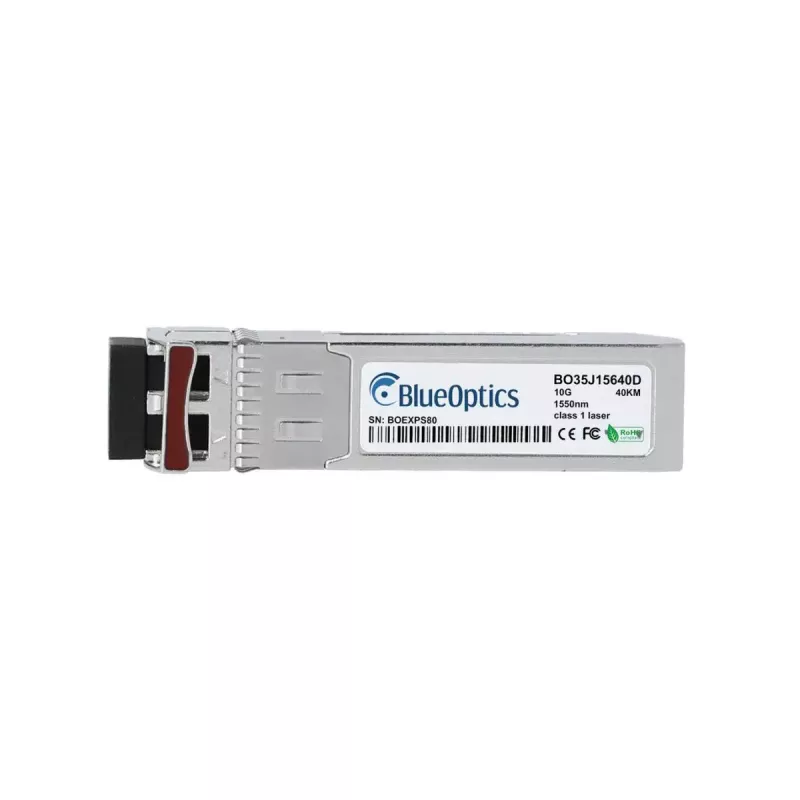

SFP transceiver modul BlueOptics SFP-10G-ER-PT 10000 Mbit/s SFP+ 1550 nm

The BlueOptics SFP-10G-ER-PT is a fiber optic SFP+ transceiver module engineered for high-speed data transmission over long distances. Supporting a maximum data transfer rate of 10,000 Mbit/s and operating at a wavelength of 1550 nm, this module is suitable for network environments that require stable, high-bandwidth connectivity. The compact SFP+ form factor allows flexible installation in compatible switch and router ports while maintaining industry-standard electrical and optical interfaces.

Advantages

This SFP+ transceiver provides high throughput and consistent performance for long-reach fiber links, with wavelength and form factor optimized for 1550 nm single-mode fiber applications. Designed to fit SFP+ slots, it offers hot-pluggable convenience and interoperability with equipment that supports standard SFP+ optical modules. The module's specification supports applications where low-latency, high-bandwidth connections are required.

Suitable for

• Long-distance single-mode fiber links in enterprise and service provider networks
• 10 Gbps uplinks between switches, routers and aggregation devices
• Data center interconnects and backbone connections
• Carrier-grade metro and access network segments

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbps)
• Optical wavelength: 1550 nm
• Form factor: SFP+ hot-pluggable module
• Fiber type: single-mode fiber (typical for 1550 nm long-reach links)

How to use

Install the transceiver into an SFP+ port on a compatible switch, router or optical transceiver cage while the host device is powered according to vendor guidelines for hot-pluggable modules. Connect a suitable single-mode fiber patch cable with matching connector types and ensure correct polarity. Verify link status through the host device management interface and monitor optical power and error counters as needed to confirm a stable connection.

Recommendations

When deploying the module, use single-mode fiber rated for long-reach 1550 nm operation and ensure connectors and patch panels are clean to minimize insertion loss. Check compatibility notes for the host equipment regarding SFP+ optical modules and confirm supported link distances for the chosen fiber and network architecture.
