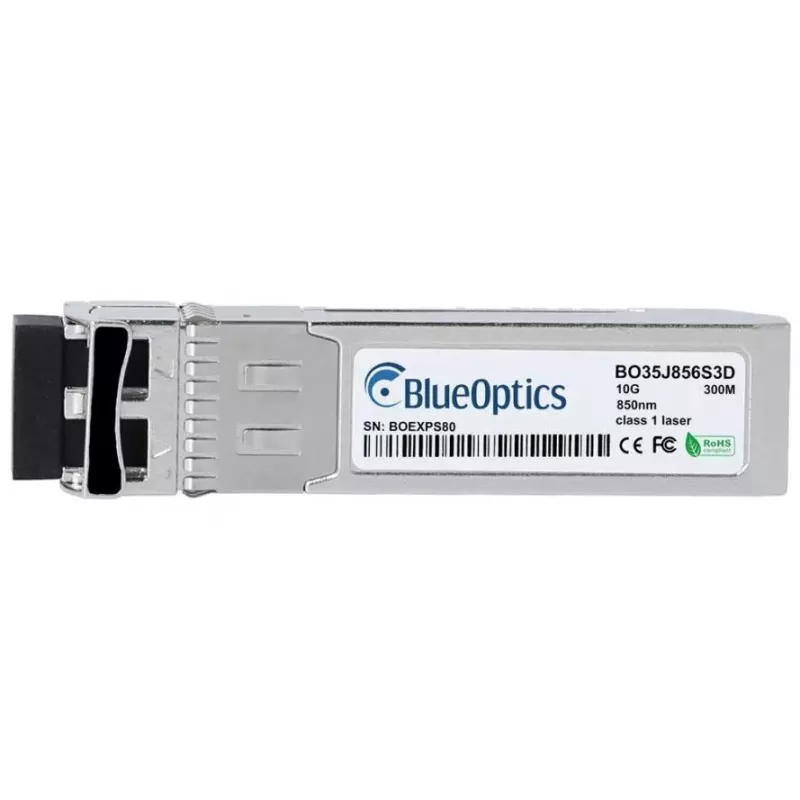

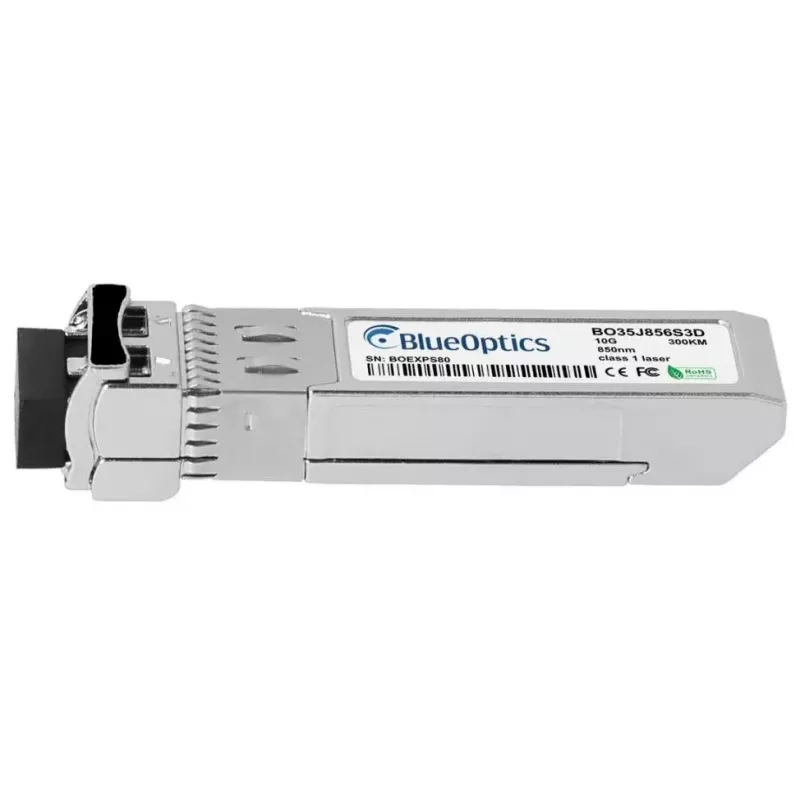

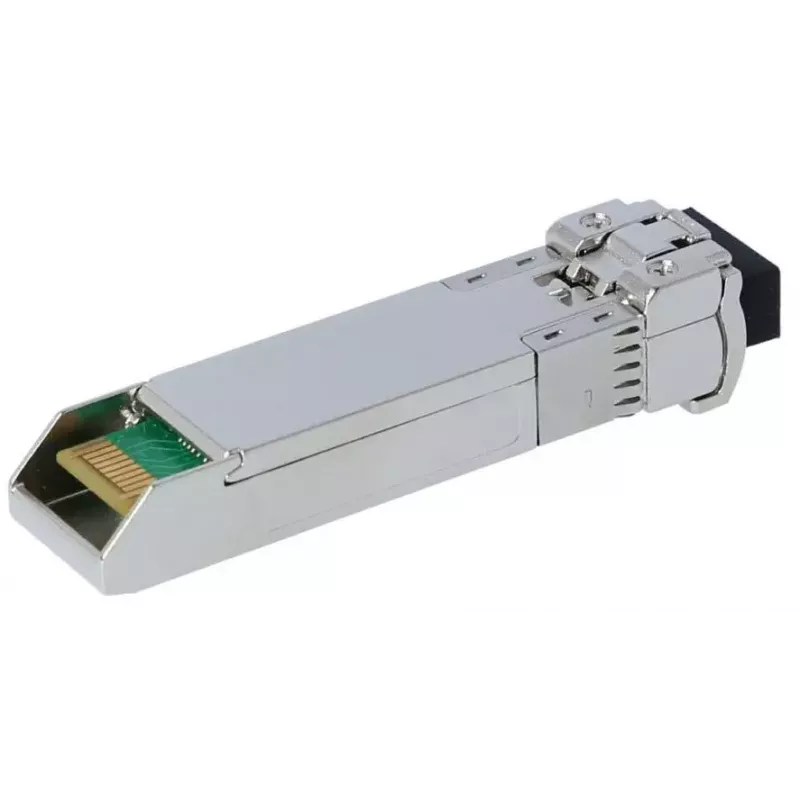

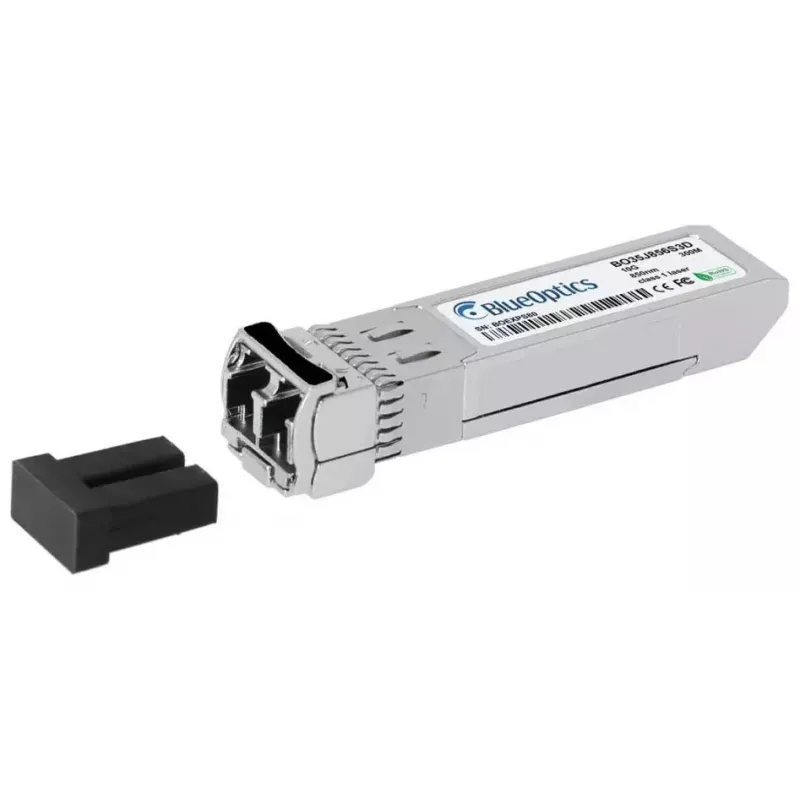

SFP transceiver modul BlueOptics SFP-10G-SR-BI-BO 10000 Mbit/s 850 nm

The BlueOptics SFP-10G-SR-BI-BO is a 10G SFP+ fiber optic transceiver module for short-range multimode links. It supports a maximum data transfer rate of 10000 Mbit/s over an 850 nm wavelength and features an LC duplex connector for simultaneous transmit and receive on separate fibers. Housed in a durable silver metal enclosure and operating at a nominal 3.3 V input, the module weighs approximately 3 g and follows industry MSA form-factor and electrical specifications for compatibility with SFP+ slots.

Advantages

This SFP+ module provides standardized 10GBASE-SR operation for multimode fiber, enabling low-latency, high-throughput links up to typical SR distances. Its metal housing supports robust installation in networking equipment while keeping weight to a minimum. The transceiver is designed for use with common networking platforms that accept SFP+ modules and includes Digital Diagnostic Monitoring (DDM/DOM) support where the host hardware implements the interface.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP-10G-SR-BI-BO into an empty SFP+ slot on compatible networking equipment until it latches. Connect LC duplex multimode fiber patch cables to the module’s transmit and receive ports, ensuring correct orientation of TX/RX on both ends. Verify link status through the host device management interface and confirm that the host supports the required 10GBASE-SR mode and DDM/DOM if monitoring is needed. Follow the equipment manufacturer’s hot-swap and electrostatic discharge precautions when inserting or removing the transceiver.

Recommendations

For optimal performance use multimode fiber rated for 10GBASE-SR, maintain clean LC connectors, and choose patch cord lengths appropriate for SR distances. Confirm DDM/DOM compatibility with your switch or router to monitor optical parameters such as transmitter output power, receiver input power, temperature and supply voltage.
