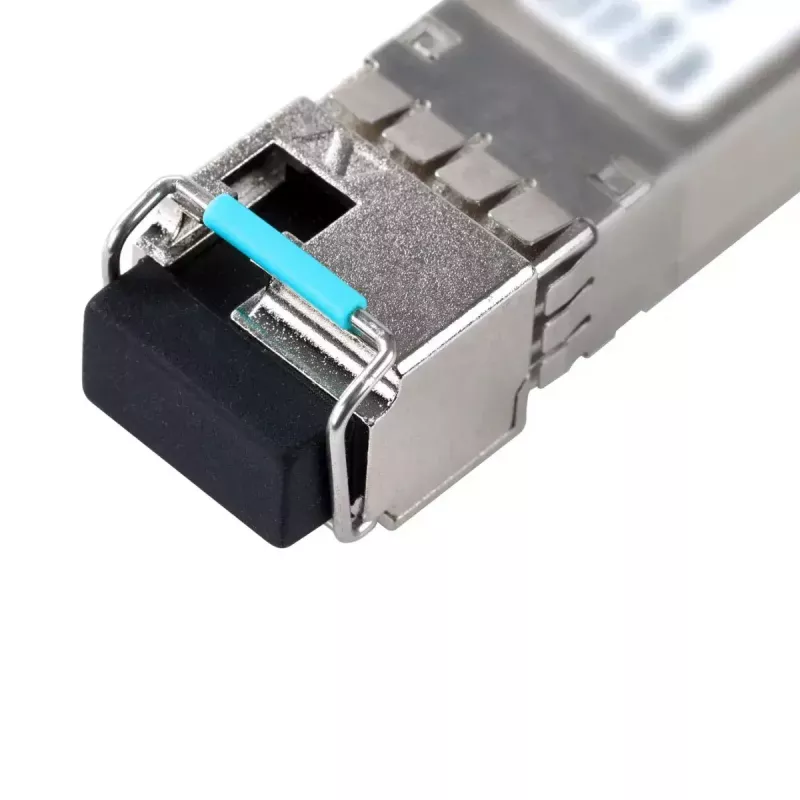

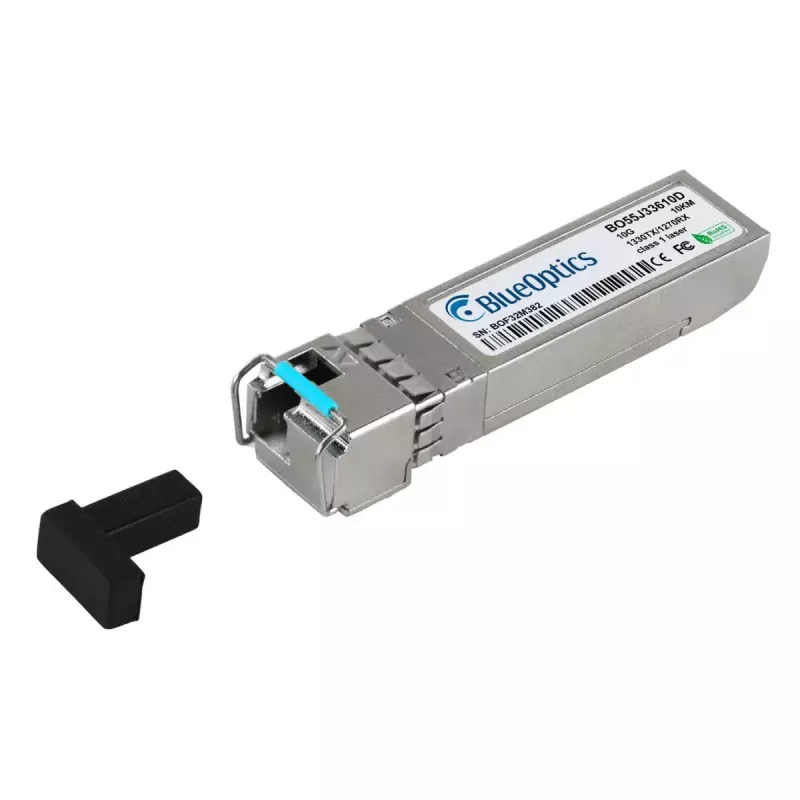

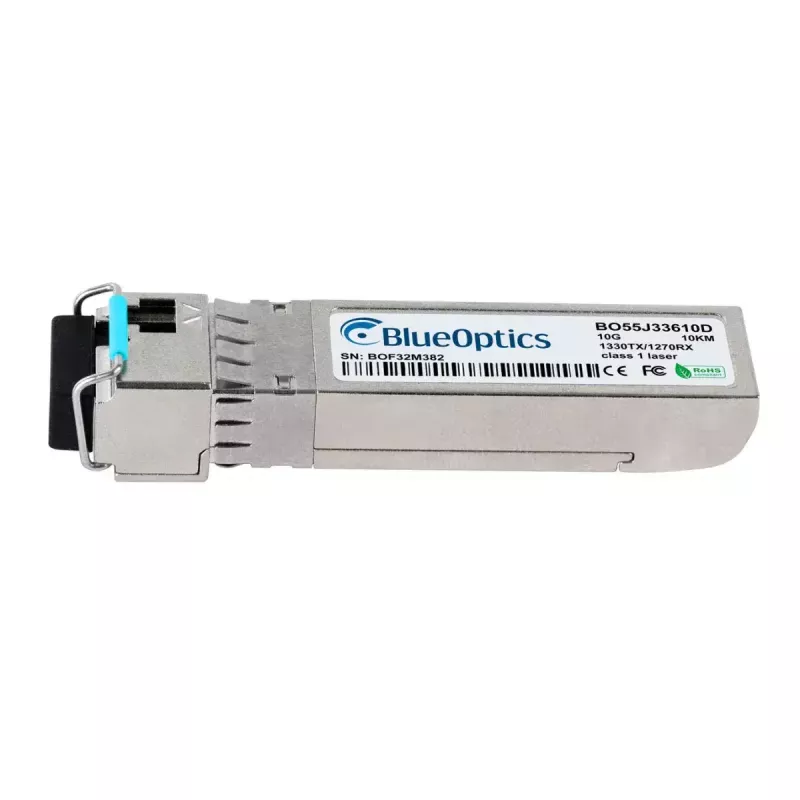

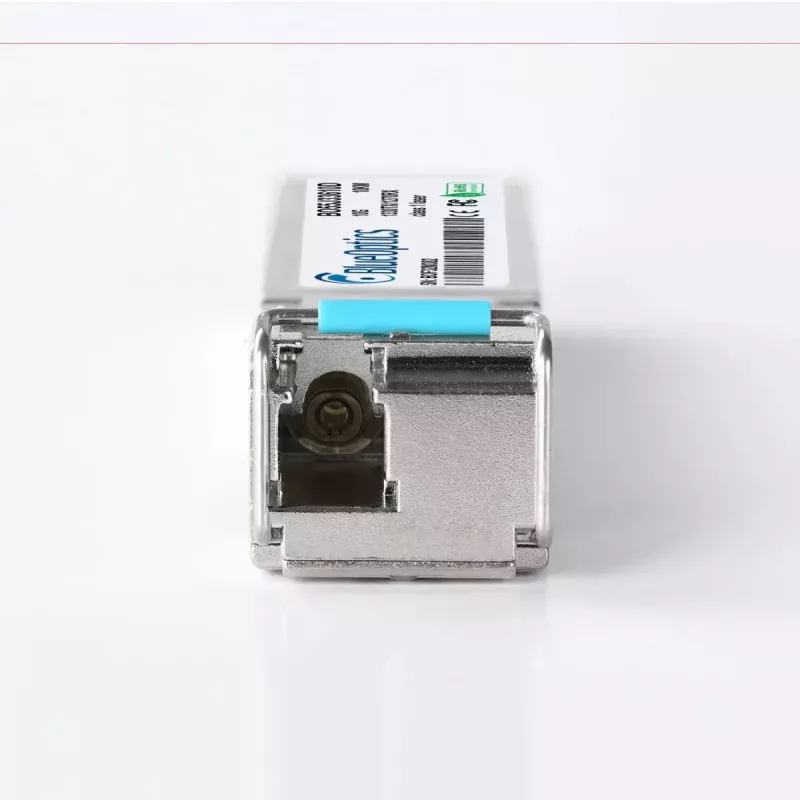

SFP+ transceiver modul BlueOptics SFP+-10GBIDI-1330-1270-BO 10000 Mbit/s

The BlueOptics SFP+-10GBIDI-1330-1270-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s optical links. It uses bidirectional (BiDi) 10GBASE-BX-D operation with a transmitter wavelength of 1330 nm and a receiver wavelength of 1270 nm over a single LC simplex fiber. The module follows the SFP+ form factor, offers a maximum transfer distance of up to 10,000 m over suitable fiber, includes an LC connector and has a compact, silver-coloured housing with a weight of approximately 20 g. Built to MSA standards, it integrates digital diagnostics monitoring (DDM/DOM) for real-time measurement of supply voltage, laser current, optical power and temperature and has an MTBF of around 3,000,000 hours.

Advantages

The transceiver provides 10 Gbit/s throughput in a standard SFP+ footprint compatible with a wide range of networking equipment. Bidirectional operation on a single fiber simplifies fiber infrastructure and reduces cabling requirements compared with separate transmit/receive fiber pairs. Compliance with MSA form-factor and signal standards ensures broad interoperability, while integrated digital diagnostics enables remote monitoring of key parameters for fault finding and preventive maintenance. The module’s use of industry-grade components contributes to extended operational life and stable performance.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP+-10GBIDI-1330-1270-BO into the SFP+ slot of a compatible switch, router or network device following the manufacturer’s hot‑swap procedure where applicable. Connect an LC simplex single-fiber patch cable to the module and ensure the opposite end is mated to a compatible BiDi transceiver with complementary wavelengths. If DDM/DOM monitoring is required, confirm that the host device supports SFF-8472 to access diagnostic values. Verify link status and speed through the host device interface and perform standard optical power checks to confirm adequate signal levels.

Recommendations

Use quality single-mode fiber and LC patch cords matched to the required link distance and install dust caps when ports are unused. For reliable DDM readings and full compatibility, ensure host firmware and driver support for third-party SFP+ modules. Avoid bending or stressing fiber cables near connectors and maintain proper electrostatic discharge (ESD) precautions during handling and installation.
