SFP transceiver modul BlueOptics SFP-10GD-BX23-BO 10000 Mbit/s

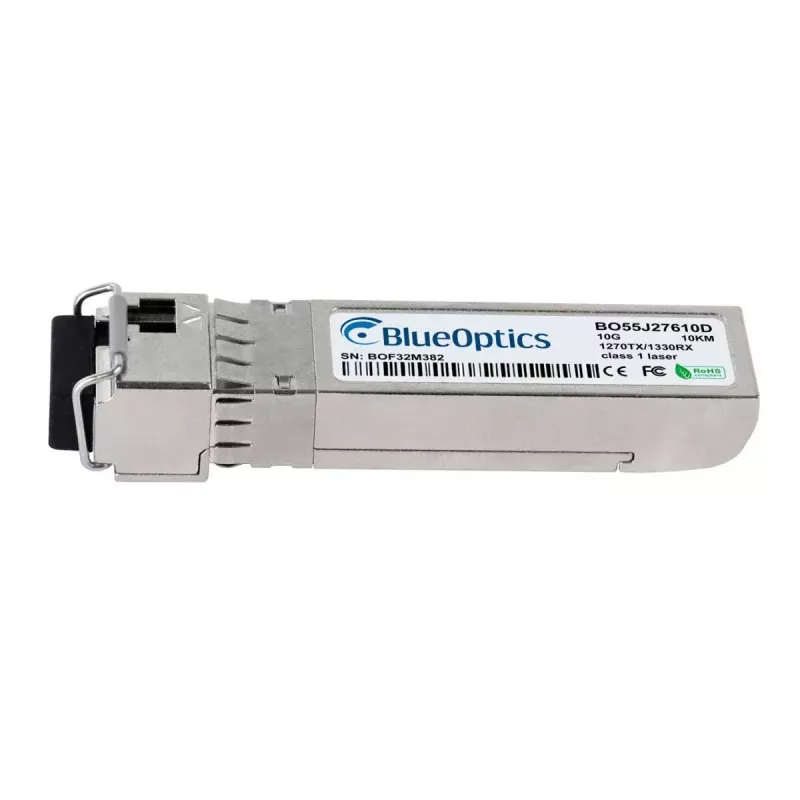

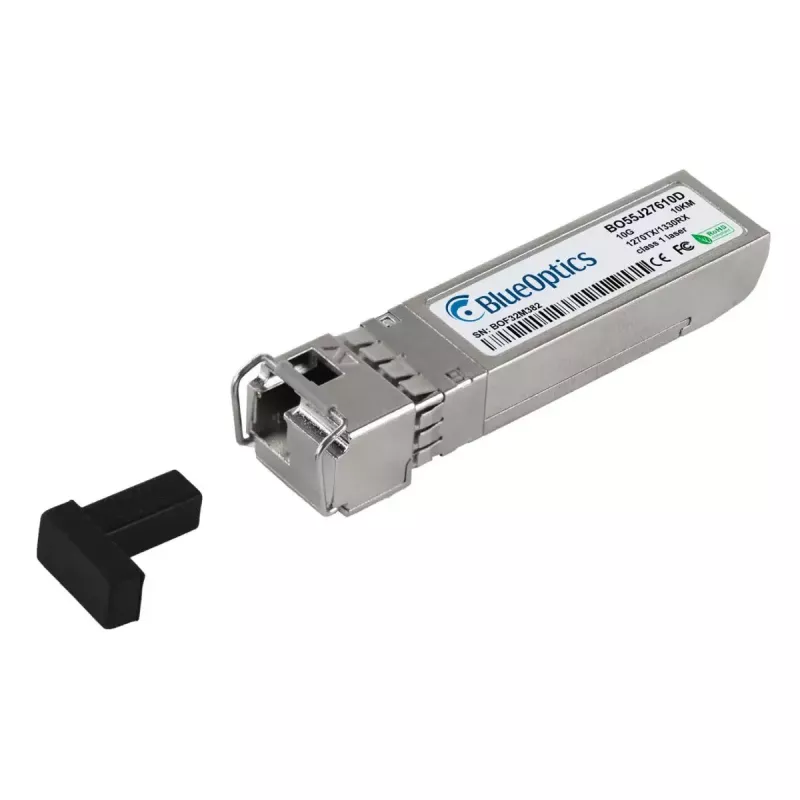

The BlueOptics SFP-10GD-BX23-BO is an SFP fiber optic transceiver module designed for 10 Gbit/s links over single-mode fiber. Housed in a metal casing and weighing approximately 3 g, the module operates from a 3.3 V supply and uses an LC simplex connector. It implements a bidirectional 10GBASE-BX-U optical interface with a transmitter and receiver operating on separate wavelengths for point-to-point fiber links up to the supported distance when used in compatible hardware.

Advantages

This BlueOptics SFP transceiver follows MSA-compliant mechanical and electrical specifications to ensure wide compatibility with equipment that supports the original MRV SFP-10GD-BX23 transceiver. The module supports 10 Gbit/s data rates and is built with high-quality optical and electronic components to provide long service life and stable optical performance. It supports digital diagnostics (DDM/DOM) for real-time monitoring of supply voltage, laser bias current, optical output and input power, and temperature when the host system supports these features.

Suitable for

• 10 Gbit/s uplinks and point-to-point connections over single-mode fiber
• Switches, routers and storage systems that accept SFP 10G modules
• Data center links, carrier and metro networks requiring BX single-fiber links
• Environments requiring digital diagnostics for remote monitoring

Key specifications

• Interface type: SFP (MSA-compliant)
• Data rate: up to 10000 Mbit/s (10 Gbit/s)
• Connector: LC simplex (single-fiber BX operation)
• Optical operation: bidirectional transmit and receive on separate wavelengths over single-mode fiber
• Power supply: 3.3 V operating voltage
• Housing: metal housing, silver colour
• Weight: approximately 0.003 kg
• Diagnostics: Digital Diagnostics Monitoring (DDM/DOM) support (MSA SFF-8472) when supported by host

How to use

Install the SFP-10GD-BX23-BO into an empty SFP port on compatible network equipment until it seats securely. Connect a single-mode LC simplex fiber patch cord according to the BX wiring: one fiber carries transmit and receive signals on the dedicated wavelengths for this module. Ensure the host device supports 10GBASE-BX-U operation and, if required, enable or verify DDM/DOM support in the management interface to read diagnostic parameters. Observe standard ESD precautions during handling and allow a short link negotiation interval after insertion before passing production traffic.

Recommendations

Use high-quality single-mode fiber and LC patch cords from reputable manufacturers to achieve the specified range and performance. Verify hardware compatibility lists for your switch or router before deployment and test a sample module in your environment if interoperability with specific vendor platforms is required.
