SFP transceiver modul BlueOptics SFP-10GD-ZR-BO 10000 Mbit/s 1550 nm

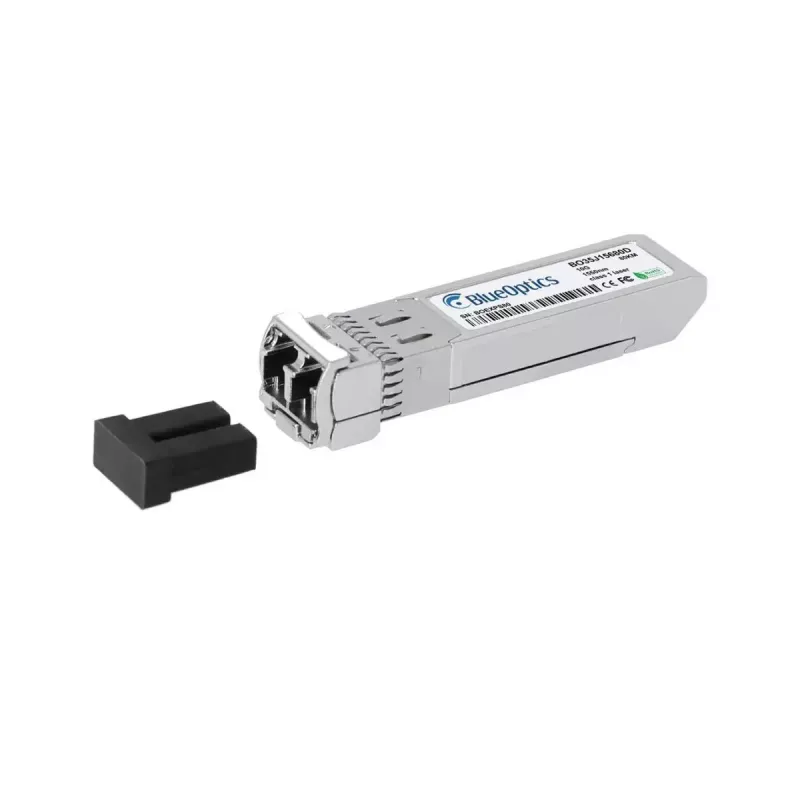

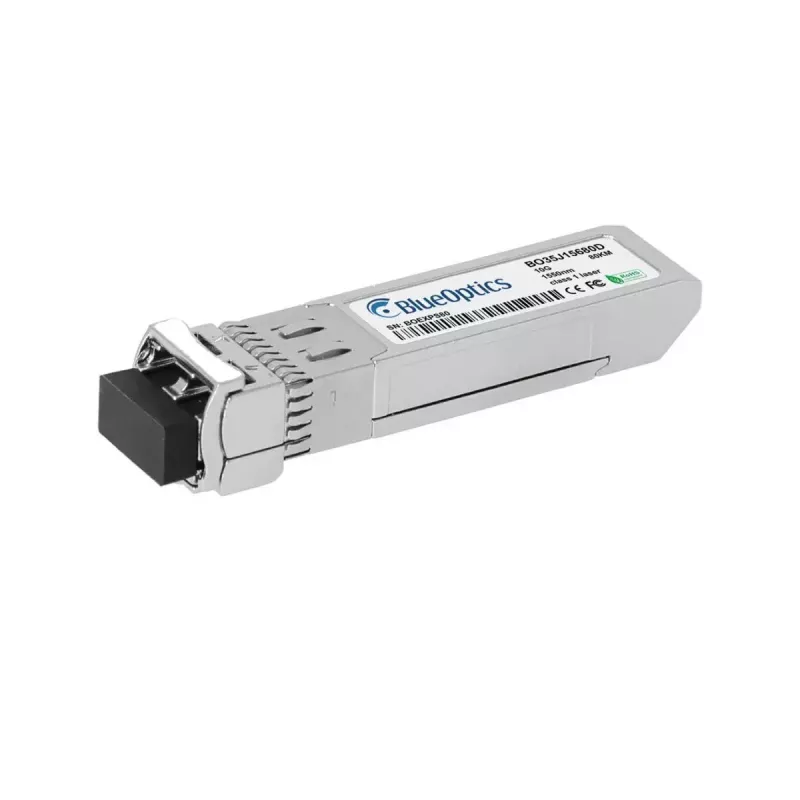

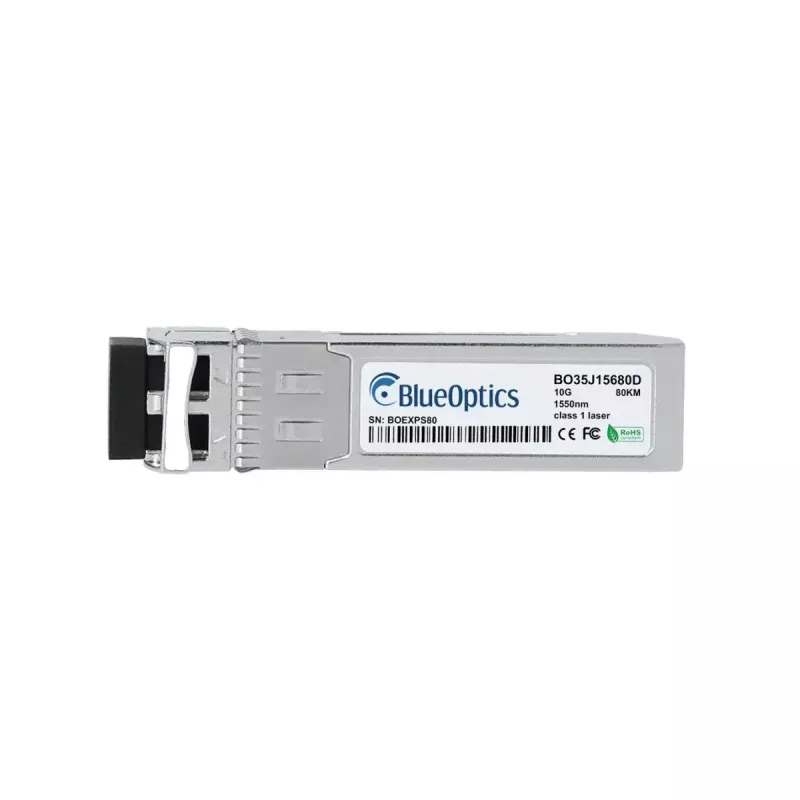

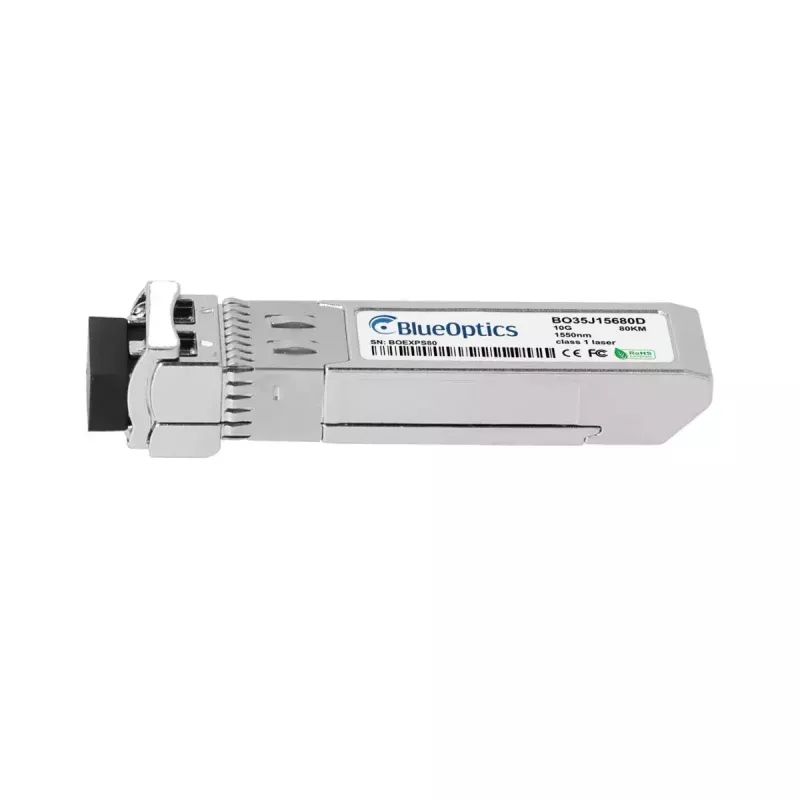

The BlueOptics SFP-10GD-ZR-BO is an SFP+ fiber-optic transceiver module designed for long-reach single-mode links. It supports a maximum data transfer rate of 10000 Mbit/s at a wavelength of 1550 nm and is built to industry MSA form-factor and interface standards with an LC duplex connector. The module is RoHS compliant, has an MTBF of 1,000,000 hours and a compact silver enclosure weighing approximately 20 g, making it suitable for professional network equipment requiring 10GBASE-ZR connectivity.

Advantages

This SFP+ transceiver supports 10 Gbit/s data rates over single-mode fiber at 1550 nm for extended reach, while complying with MSA interface standards for broad compatibility. The module includes digital diagnostic monitoring (DDM/DOM) support for real-time monitoring of supply voltage, laser bias current, transmit power, receive power and temperature when the host device supports these functions. Built with components selected for durability, the module's reported MTBF and RoHS compliance make it a reliable choice for installations that require long-term, low-maintenance optical links.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP-10GD-ZR-BO into an empty SFP+ slot on a compatible network device until it latches. Connect an appropriate single-mode LC duplex fiber patch cable to the module and to the remote transceiver or patch panel, observing correct transmit/receive polarity. If the host device supports DDM/DOM, enable or monitor the diagnostic parameters via the device management interface to verify optical link health. Verify the device reports the link at 10 Gbit/s and check for proper signal levels and link stability after connection.

Recommendations

Use quality single-mode LC duplex patch cords and, when possible, route fibers through patch panels to maintain connector cleanliness and minimize insertion loss; verify DDM/DOM readings during commissioning and schedule periodic optical power checks to ensure long-term link availability.
