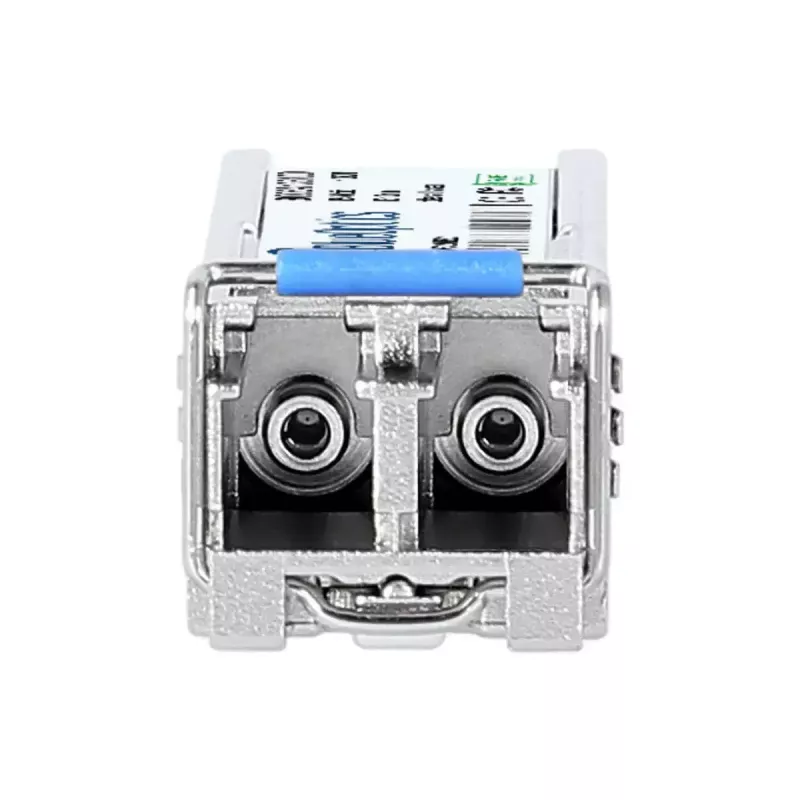

SFP transceiver modul BlueOptics SFP-2DH-BO optický 155 Mbit/s 1310 nm

The BlueOptics SFP-2DH-BO is a single-mode fiber optic SFP transceiver module designed for reliable point-to-point optical links. It supports a maximum data transfer rate of 155 Mbit/s over single-mode fiber at a wavelength of 1310 nm and is equipped with an LC duplex connector. Lightweight and compact, this module is suitable for use in networking devices that accept SFP form-factor transceivers and is built to industry MSA standards for interoperability.

Advantages

The module offers stable optical transmission over distances up to 10,000 m and a low weight of 20 g, enabling easy handling and installation. Manufactured to MSA compliance, it provides broad compatibility with hardware platforms that support RAD SFP-2DH type transceivers. The design targets long service life with a high MTBF rating and includes support for simultaneous send/receive operation via LC duplex optical interfaces.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP-2DH-BO into an SFP slot on a compatible networking device while the device is powered down or per the vendor’s hot-swap guidelines. Connect an LC duplex single-mode fiber patch cable with correct polarity between this transceiver and the remote transceiver or patch panel. Ensure the host device is configured for the relevant 100BASE-LX or equivalent interface and verify link status through the device management interface. If digital diagnostics (DDM/DOM) are required, confirm that the host hardware supports the monitoring feature to read optical parameters.

Recommendations

Use single-mode LC duplex patch cables and follow manufacturer guidelines for polarity and fiber cleanliness. Confirm compatibility with the target hardware platform before deployment and observe ESD precautions during handling. When remote monitoring is needed, enable DDM/DOM in supported systems to monitor optical power, temperature and supply conditions.
